V-Tec DT601 - System Wiring and Electric Lock Connection; Basic Connection; Electric Lock Connection; Door Lock Controlled with Internal Power

-5-
4. System Wiring and Electric Lock Connection

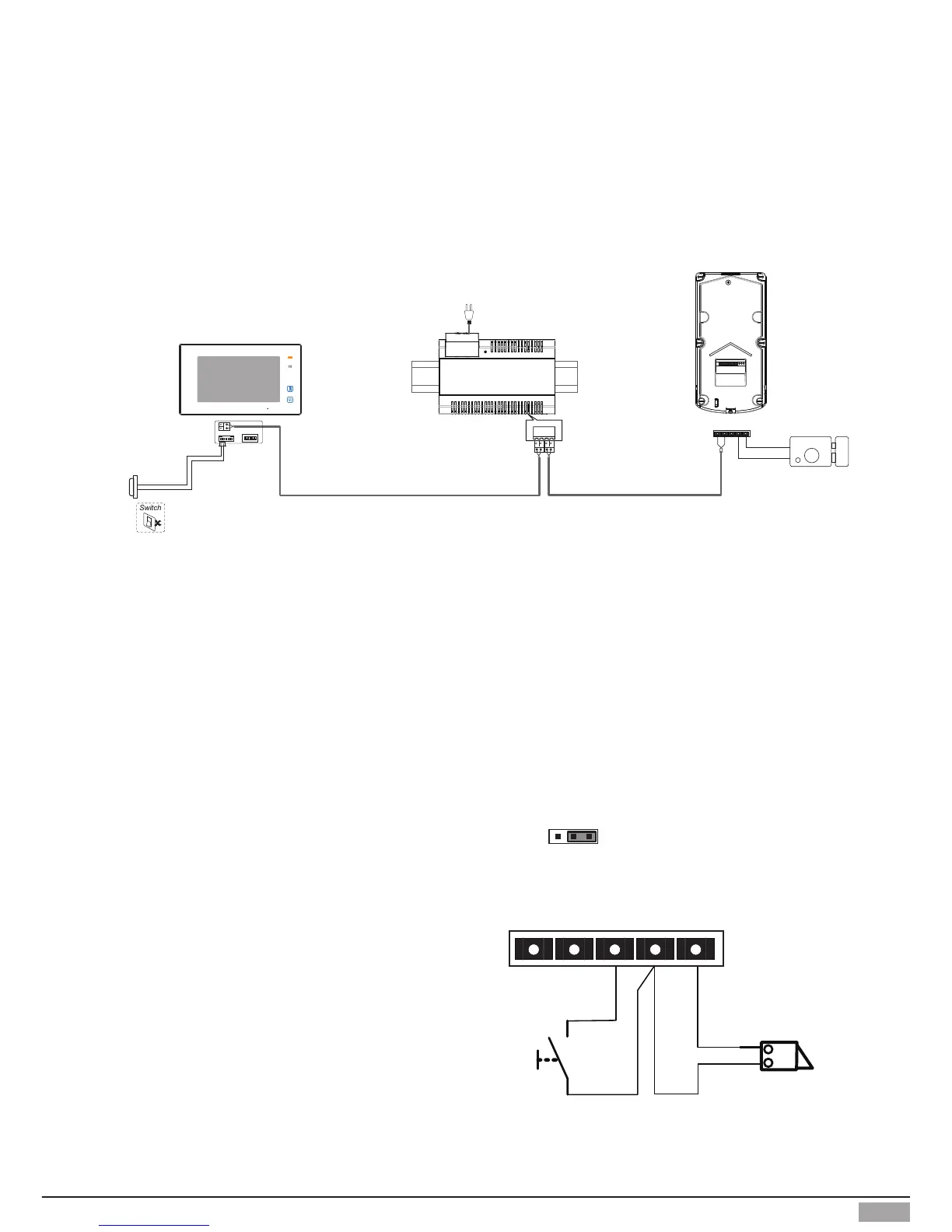

Basic Connection
BUS(IM) BUS(DS)
PC6A
AC~
-
+
L1 L2 PL S+ S-
Doorbell Button
Switch
Code=00, DIP6=on
1 2 3 4 5 6
ON DIP
L2
L1
DIP Switches
Electric Lock Connection
Door Lock Controlled with Internal Power
Note:
1. Electronic lock of Power-on-to-unlock type
should be used.
2. The door lock is limited to 12V, and holding
current must be less than 250mA.
3. The door lock control is not timed from Exit
Button(EB).
4. The Unlock Mode Parameter of Monitor
must be set to 0 (by default).
EB
*
LOCK
BUS PL S
+
S-
Jumper position in 2-3
1 2 3
