V2 CITY2+ - Configuration and Operation Details; Obstacle Sensor Operation; Control Unit Configuration Menu

ENGLISH
- 30 -
ANT
START
STOP
START P.
COM
PHOTO1 PHOTO2
EDGE1 EDGE2
COM
FCA1
FCC1
FCA2
FCC2
COM
+24VDC
COM (-)
+24VDC (TEST)
LOCK
LIGHT
24V
M1 M2
COURTESY
LIGHT
CONTACT
ANT-

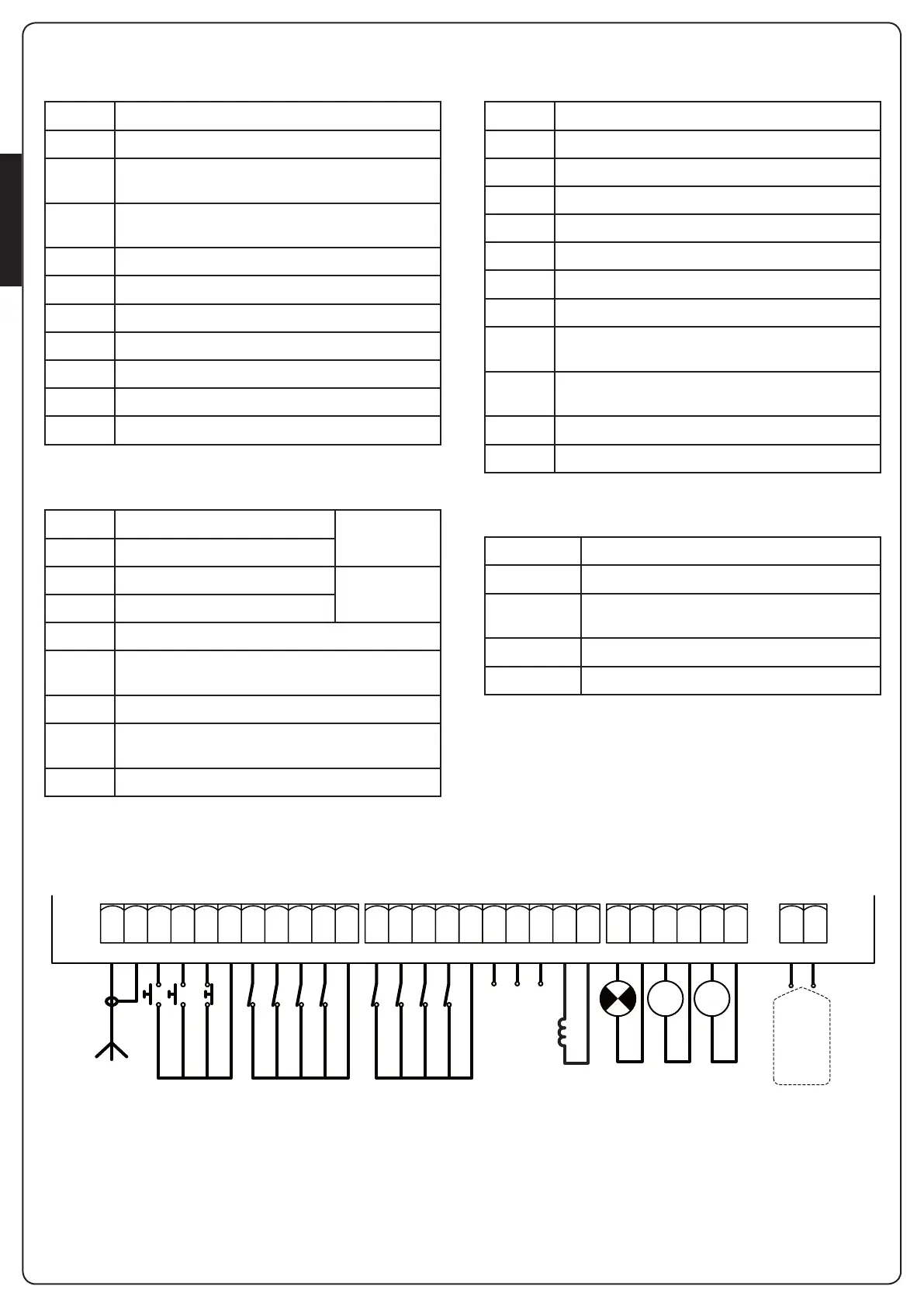

L1 L2 L3 L4 L5 L6 L7 L8 L9 L10 L11 K1 K2 K3 K4 K5 K6 K7 K8 K9 K10 Z1 Z2 Z3 Z4 Z5 Z6 B1 B2
L1 Antenna
L2 Antenna shield
L3 Opening control for the connection of control
devices with N.O. contact
L4 Opening controls for pedestrian access for the
connection of control devices with N.O. contact
L5 Stop command. N.C. contact
L6 Common (-)
L7 Photocells type 1. N.C. contact
L8 Photocells type 2. N.C. contact
L9 Safety ribbons type 1 (fixed). N.C. contact
L10 Safety ribbons type 2 (mobile). N.C. contact
L11 Common (-)
Z1 - Z2 Low voltage light (24V)
Z3 Motor 1 (OPENING)
Z4 Motor 1 (CLOSING)
Z5 Motor 2 (OPENING)
Z6 Motor 2 (CLOSING)
B1 - B2 230VAC courtesy light or flashing light
POW+ +24V power supply
POW- Power supply (-)
BAT+ + pole of the optional battery pack (code 161212)
or the ECO-LOGIC battery box
BAT- - pole of the optional battery pack (code 161212) or
the ECO-LOGIC battery box
L Power phase 230 VAC
N Neutral 230 VAC
RECEIVER Plug in receiver
ADI ADI interface
OVERLOAD It shows that there is an overload on accessories
power supply
MAINS It shows that the control unit is power supplied
F1 2,5A
K1 Open limit switch motor 1
Encoder
motor 2
K2 Close limit switch motor 1
K3 Open limit switch motor 2
Encoder
motor 1
K4 Close limit switch motor 2
K5 Common (-)
K6 Power output +24Vdc for photocells and other
accessories
K7 Common for accessories power supply
K8 Photocell/optical edge TX power supply for
functional test
K9 - K10 LOCK 12V
5.14 - ELECTRIC CONNECTIONS
