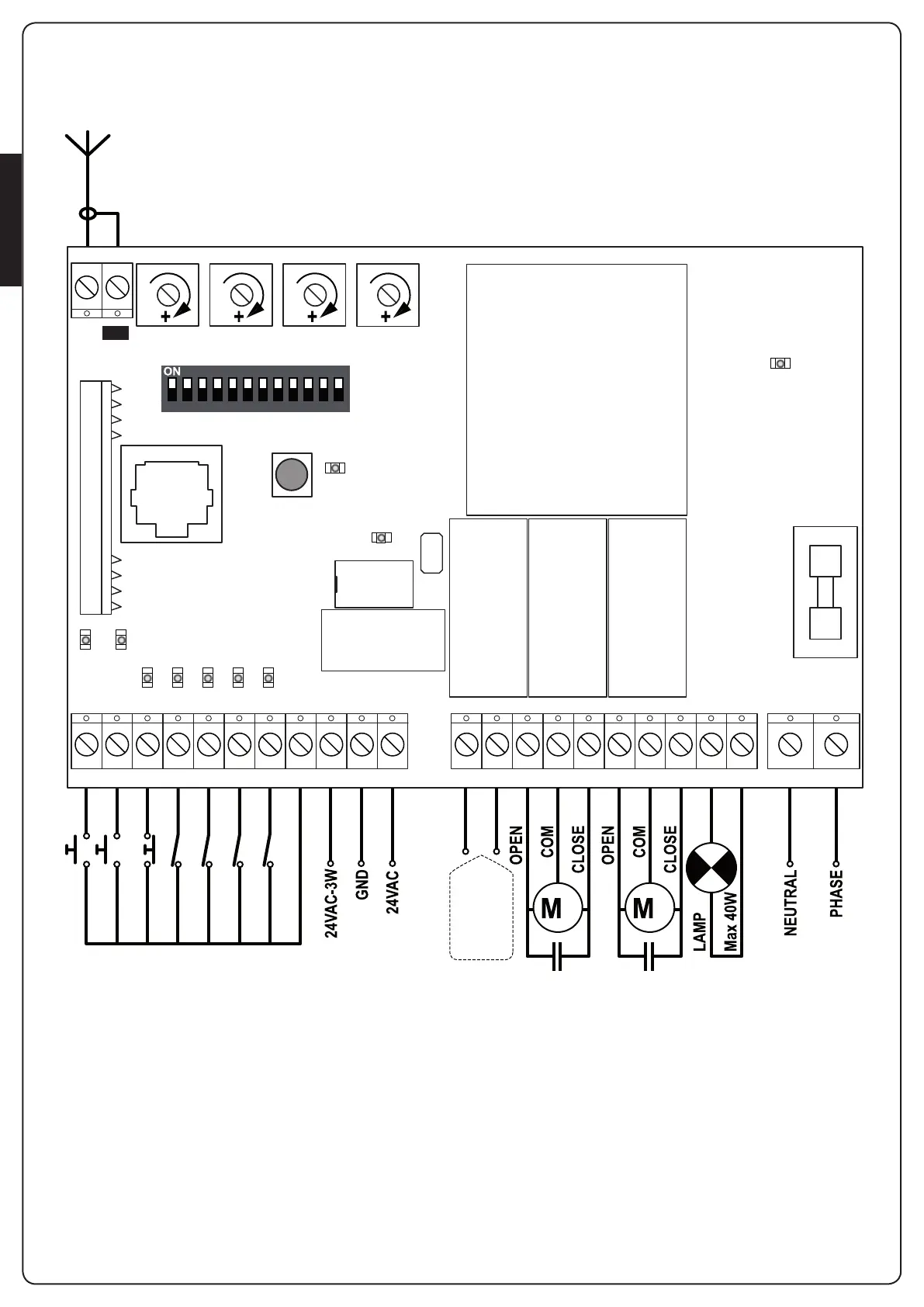

ELECTRICAL CONNECTION
m
PLEASE NOTE: If not used, the normally closed inputs (STOP
, PHOTO, EDGE, FCA, FCC) must be jumper
ed with the
commands common line COM (-)
4
6
Table of Contents
Important Remarks
2
Declaration of Conformity
2
Technical Specifications
2
Installation
3
Courtesy Light
4
Limit Switch Inputs
4
External Antenna
4
Electrical Connection
5
Cable Gland Assembly
6
Programming the Operational Logic
7
Adjustment of the Power and Operational Times
8
CONTROL UNIT INDICATORS (Leds)
