V2 FLEXY2 User Manual

ENGLISH
- 15 -

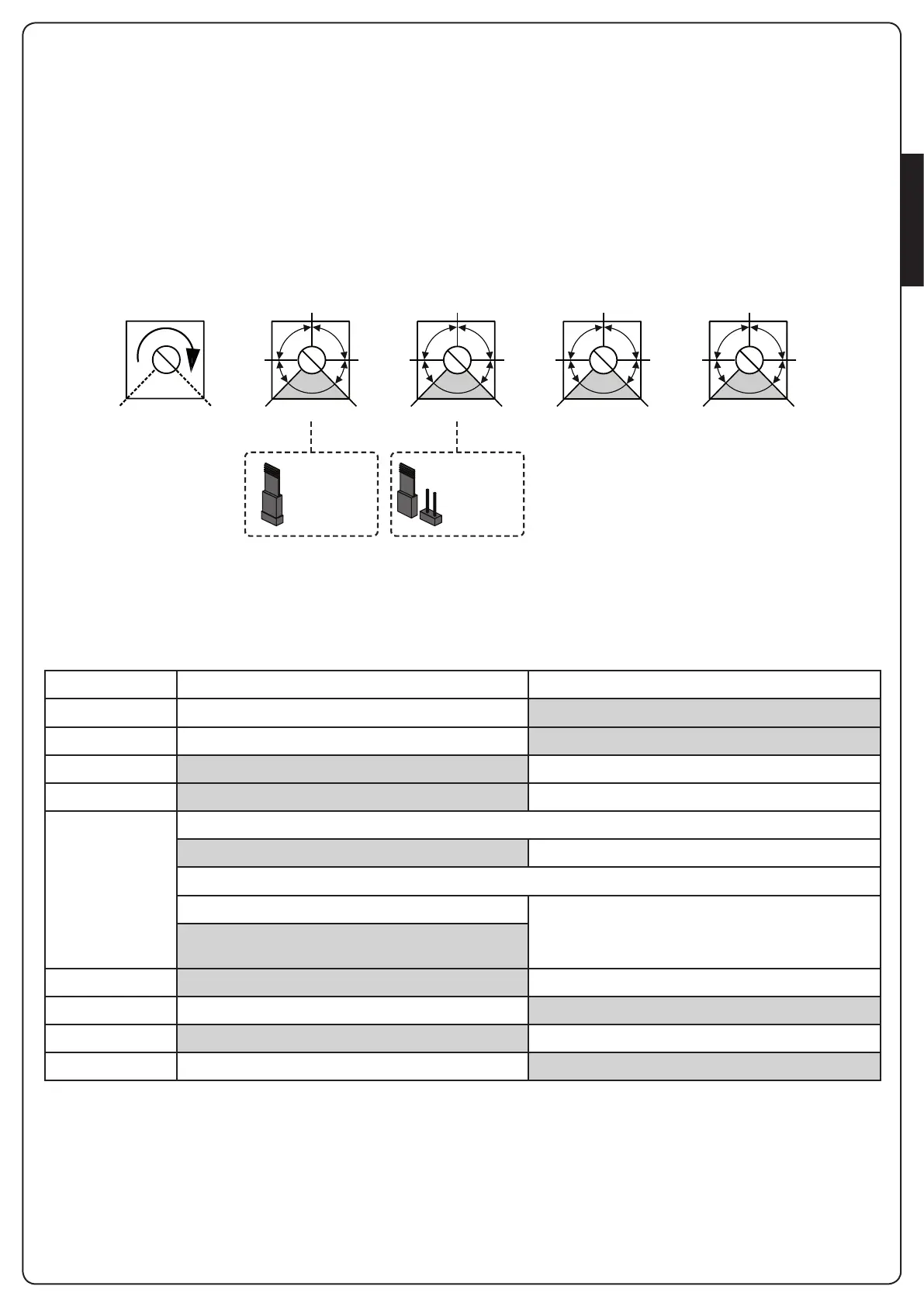

ADJUSTMENT OF THE POWER AND
OPERATIONAL TIMES
Thepowerandoperatingtimesmaybeadjustedbymeansof4
trimmers located on the control unit:
m PLEASE NOTE: it is recommended that operating times
be set with the slow down function disabled (DIP 5 OFF).
m WARNING: the adjustment of times has to be made
when the gate is still
CONTROL UNIT INDICATORS (LEDs)
ThehighlightedboxesindicatethestateoftheLEDswhenthegateisresting.
LED ON OFF
START STARTinputclosed STARTinputopen
START P. STARTP.inputclosed STARTP.inputopen
STOP STOPinputclosed STOPinputopen
PHOTO PHOTOinputclosed PHOTOinputopen
EDGE Standard edge
EDGEinputclosed(edgenotpressed) EDGEinputopen(edgepressed)
Resistive rubber edge
EDGEinputclosed(edgepressed) EDGEinputopen(fault)
EdgeNOpressed:8K2betweenEDGEinputand
common(-)
FCA Openinglimitswitchclosed Openinglimitswitchopen
FCC Closinglimitswitchclosed Closinglimitswitchopen
mains Controlunitpowered-up ControlunitNOTpowered-up
overload Accessorypowersupplyoverload Accessorypowersupplywithinnormaloperationallimits
POWER:  motorpower.
WORK:   motoroperatingtime
     J1closed=2-50seconds
     J1opened=2-120seconds
PAUSE:   pausetimebeforeautomaticre-closure
     (2-150seconds).
DELAY:   timedelaybetweenthetwogateleaves
     (0-90seconds).
POWER
MIN MAX
WORK
120”
30”
2”
2”
90”
WORK
50”
18”
2”
2”
45”
PAUSE
150”
30”
2”
2”
90”
DELAY
90”
15”
0
0
45”
J1 closed J1 opened
J1 opened J1 closed
