INSTALLATION OF GUIDE
S
ECTION BAR
1. Remove the section bar from its
cardboard packaging and check its
integrity.

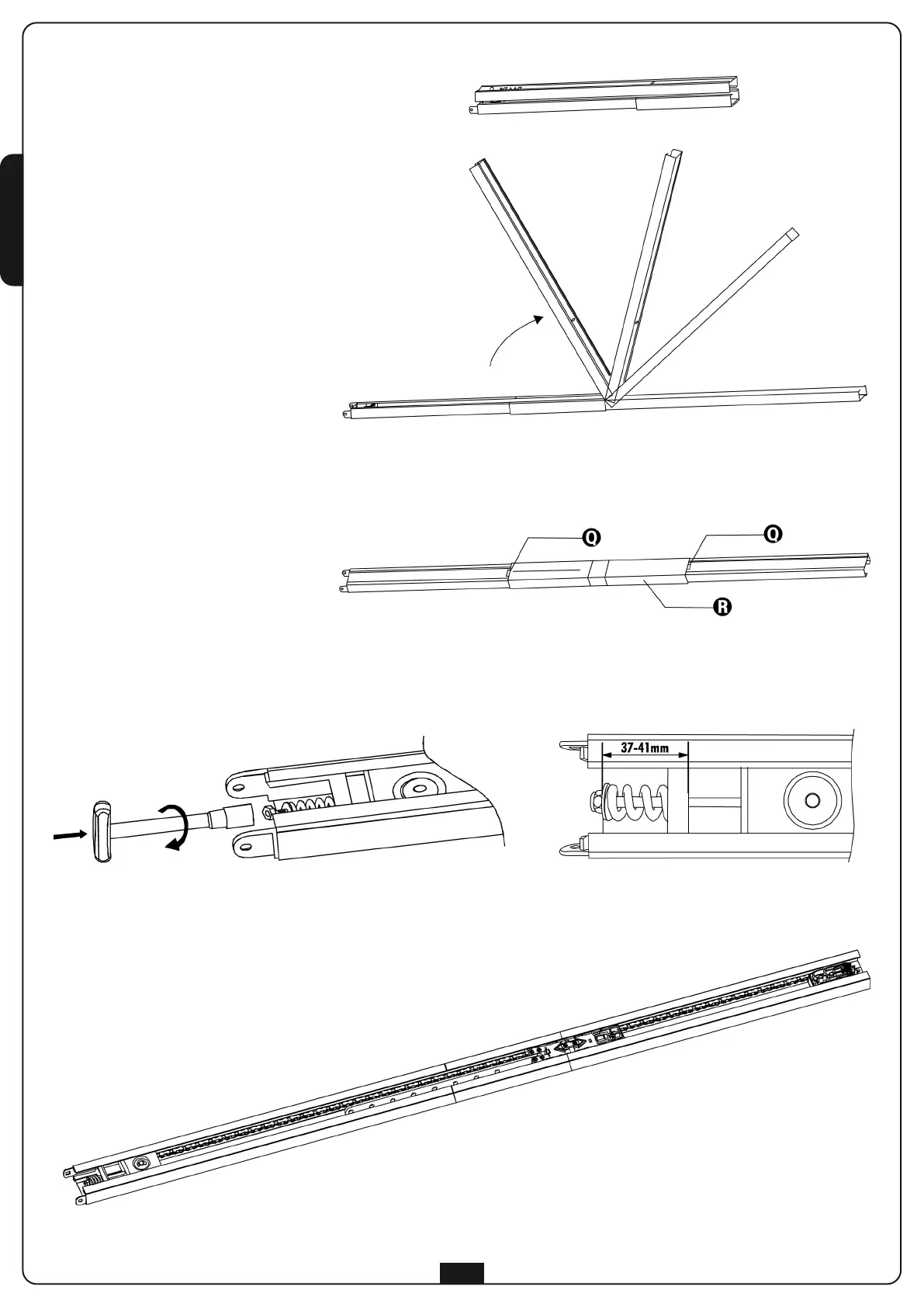

2. Unfold the section bar as indicated in
the figure below.
3. Once the section bar is elongated, slide
the connecting section bar R to the end
position indicated by the two holes Q
o
n the chain-guide section bar.
4. Adjust the tension of the chain using the
Allen-head screw with a 10 mm
A
llen-wrench: turn the bolt until the
chain is sufficiently tight.
m CAUTION: Make certain that the
draw slide slides freely along the entire
length of the guide. Eliminate any
friction prior to proceeding with the
next phases of installation.
