3 • vacon EN: Vacon 100 main switch
en
3

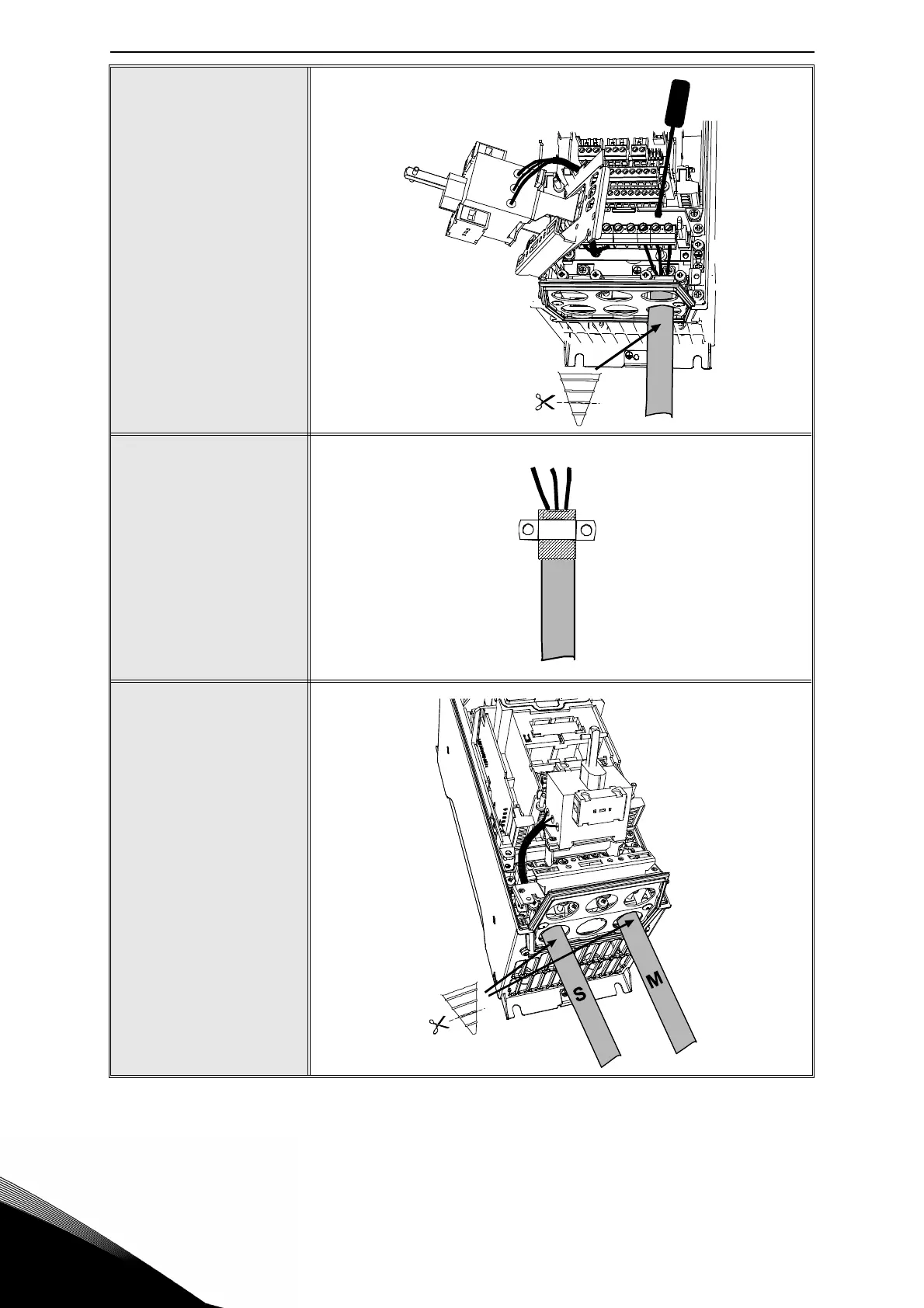

Connect the motor cable
“M” (see step 4). Tighten
the screws according to
the tightening torques
given in Table 2. Check
also the tightening of the
factory-installed main
switch cable!
Note! Remember to use
cable grommets pro-
vided with the drive, see
the Vacon 100 installa-
tion manual for detailed
cable installation
instructions!
4
Attaching the cables: fold
the cable shield back-
wards onto the cable and
attach the cable with a
cable clamp on the
shield.
Note! See detailed cable
installation instructions
in the Vacon 100 installa-
tion manual!
5
Install the supply cable
“S” and lead it to the
main switch as shown in
the picture.
Note 1! Protect the
cables as close to the
main switch as possible
with an insulation tube.
Note 2! See detailed
cable installation
instructions in the Vacon
100 installation manual!
