EN: Vacon 100 main switch vacon • 4
en
6

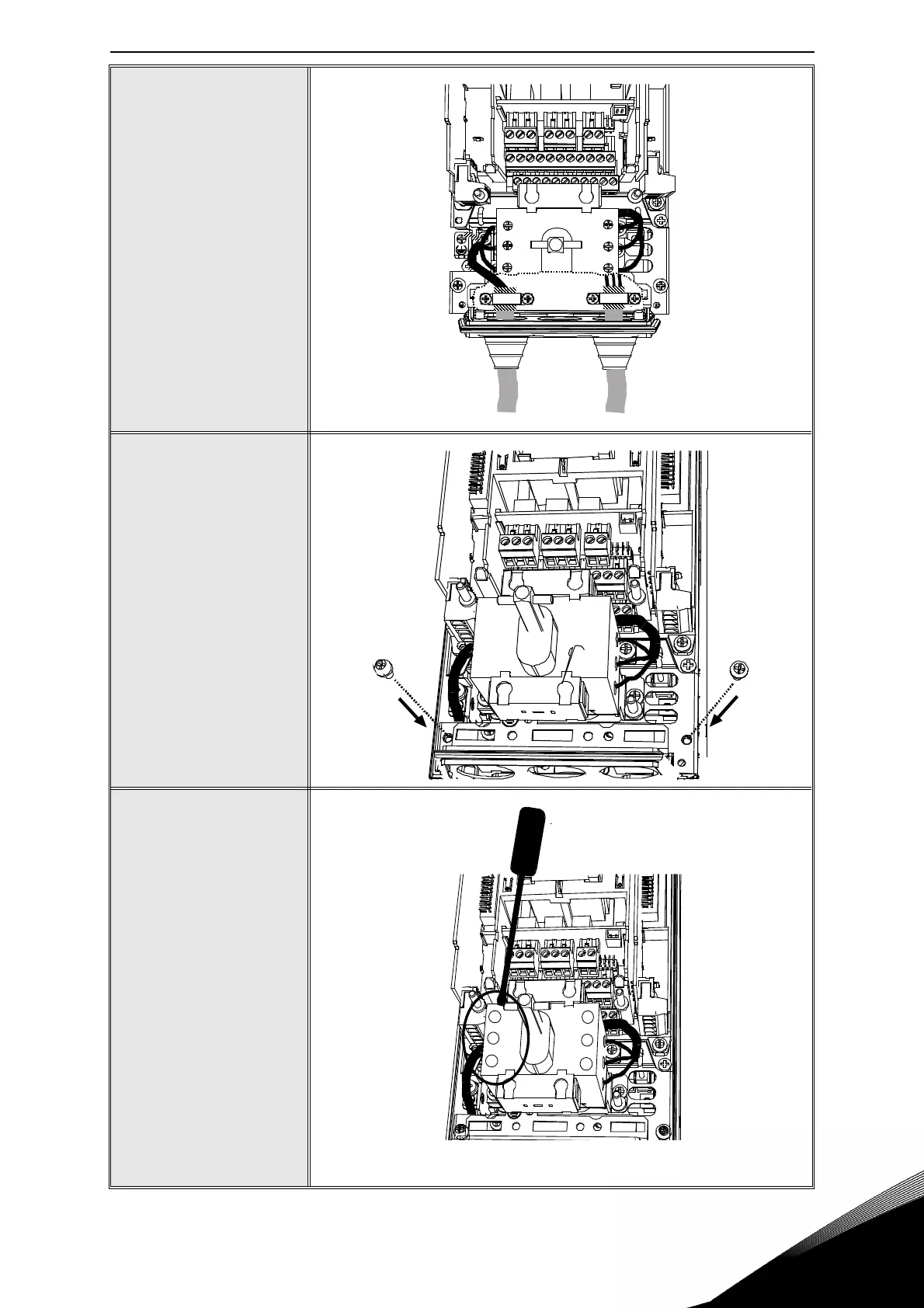

The motor and supply
cable installation seen
from above.
7
Attach the main switch
screws.
8
Tighten the supply cable
screws on the main
switch according to the
tightening torques given
in Table 2. Please also
check the tightening of
the factory-installed
cable connection screws
on the right side of the
main switch.
MS
2T1
4T2
6T3
1L1
3L2
5L3
