Vacon 100X - Page 14

4.1.1.5 Dimensions of the wall-mounted drive with the marine option, MR8
39 (1.54)
1033 (40.67)
315 (12.40)
245 (9.65)
5
(0.20)
10
(0.39)
390 (15.35)
1111 (43.74)
4 x Ø11
(0.43)

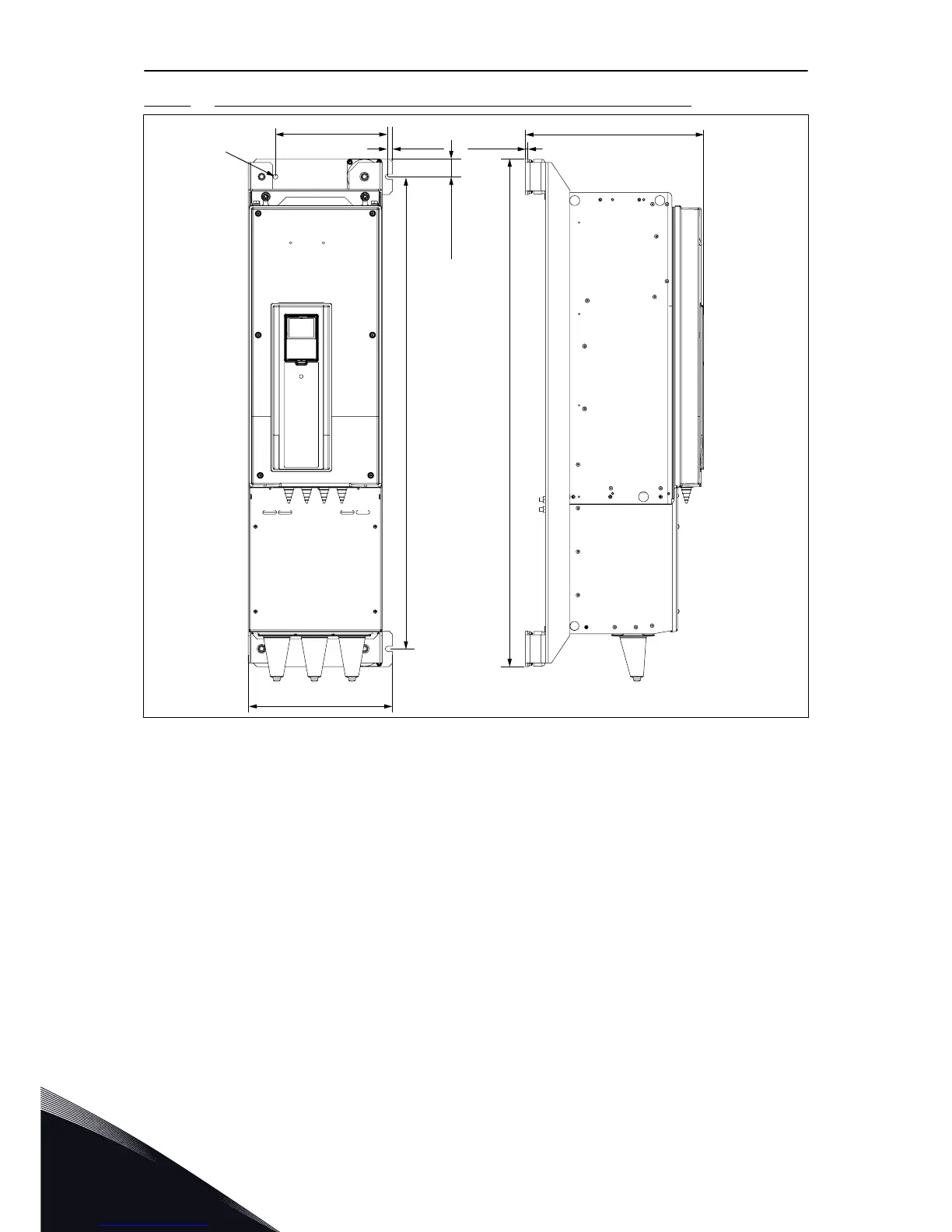

Fig. 6: Dimensions of the wall-mounted drive with the marine option, MR8, [mm (in)]
VACON · 14 MOUNTING
4
