Vacon 100X - Dimensions of the Enclosed Drives

4.1.1.6 Dimensions of the wall-mounted drive with the marine option, MR9
1220 (48.03)
522 (20.55)
290 (11.42)
502 (19.76)
5
(0.20)
411 (16.18)
1298 (51.10)
10 x Ø12 (0.47)
Ø11
(0.43)

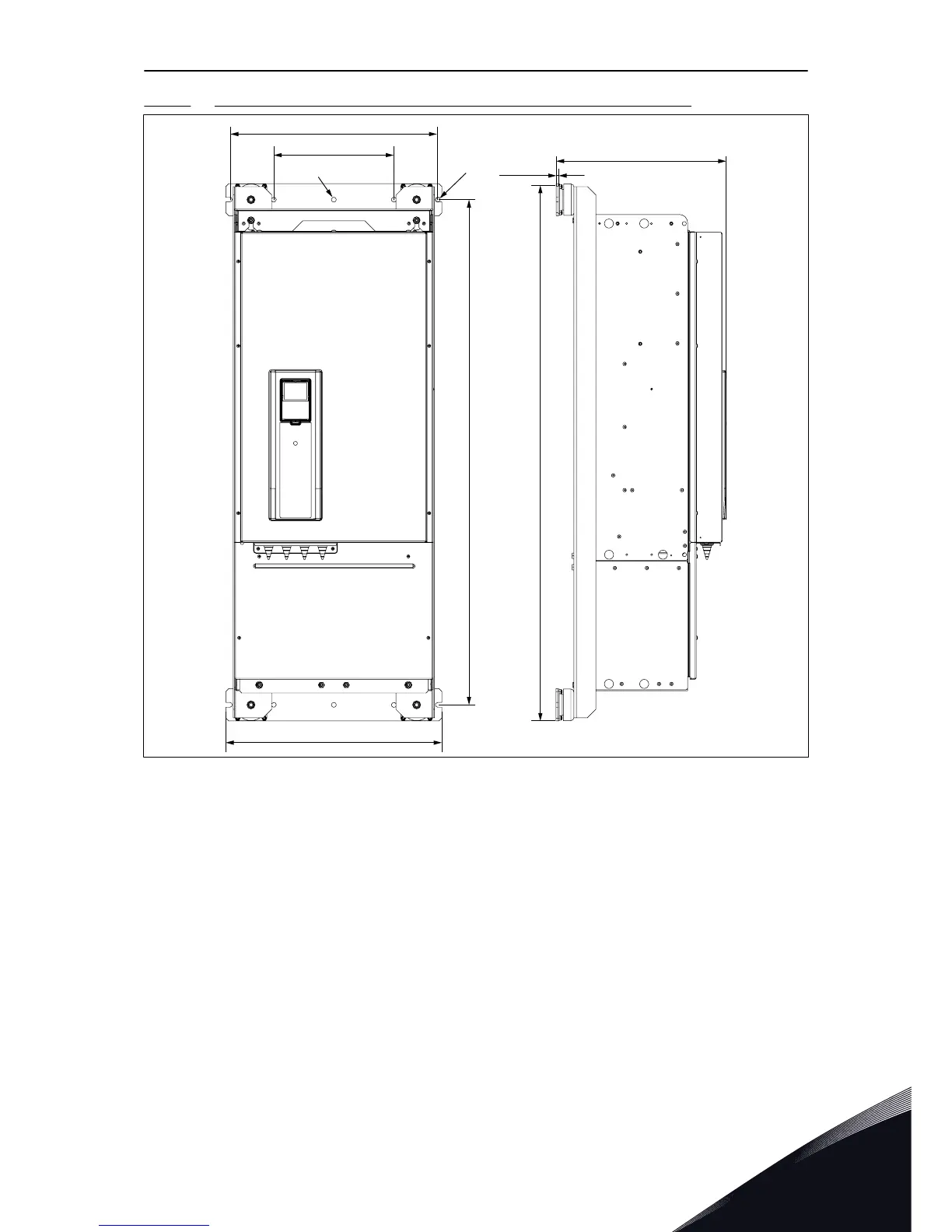

Fig. 7: Dimensions of the wall-mounted drive with the marine option, MR9, [mm (in)]
4.1.2 DIMENSIONS OF THE ENCLOSED DRIVES
Some options of the enclosed drives require additional cabinets. For more information, see
the Vacon 100 Enclosed Drives Installation Manual.
MOUNTING VACON · 15
