6 • vacon installation
Tel. +358 (0)201 2121 • Fax +358 (0)201 212205
2

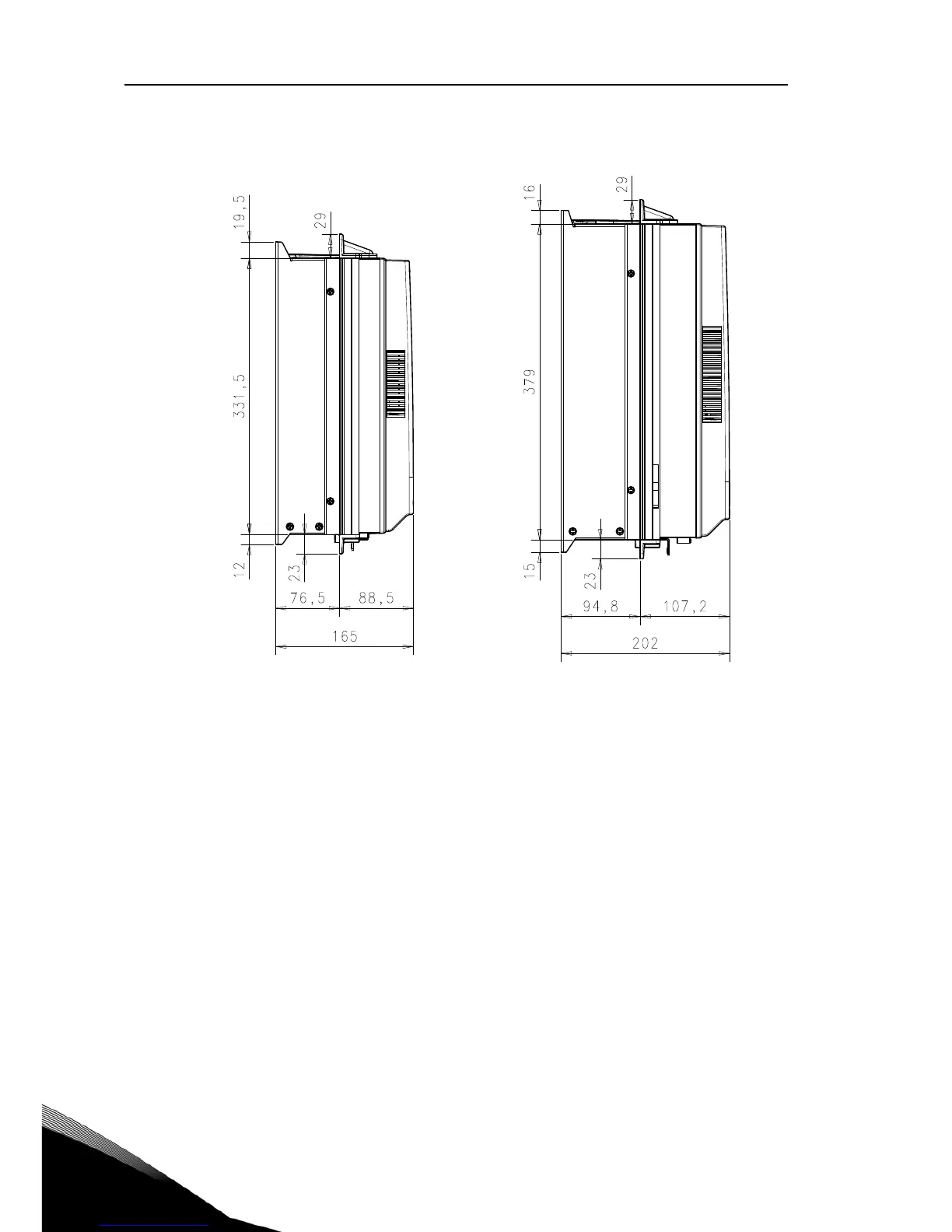

Figure 7: Flange mounting depth dimensions for MI4 and MI5 (Unit: mm)
M15
M14
