Vacon NX OPTC2 User Manual

layout and connections vacon • 9
24-hour support +358 (0)40 8371 150 • Email: vacon@vacon.com
3
3.3.2 Grounding only one point on the net
In this manner of grounding, the shield is connected to ground only at the last device on the net in the
same way as described in chapter 3.3.1. Other devices of the net just pass the shield.
We recommend you to use an Abico connector to fit the shields into the terminal.

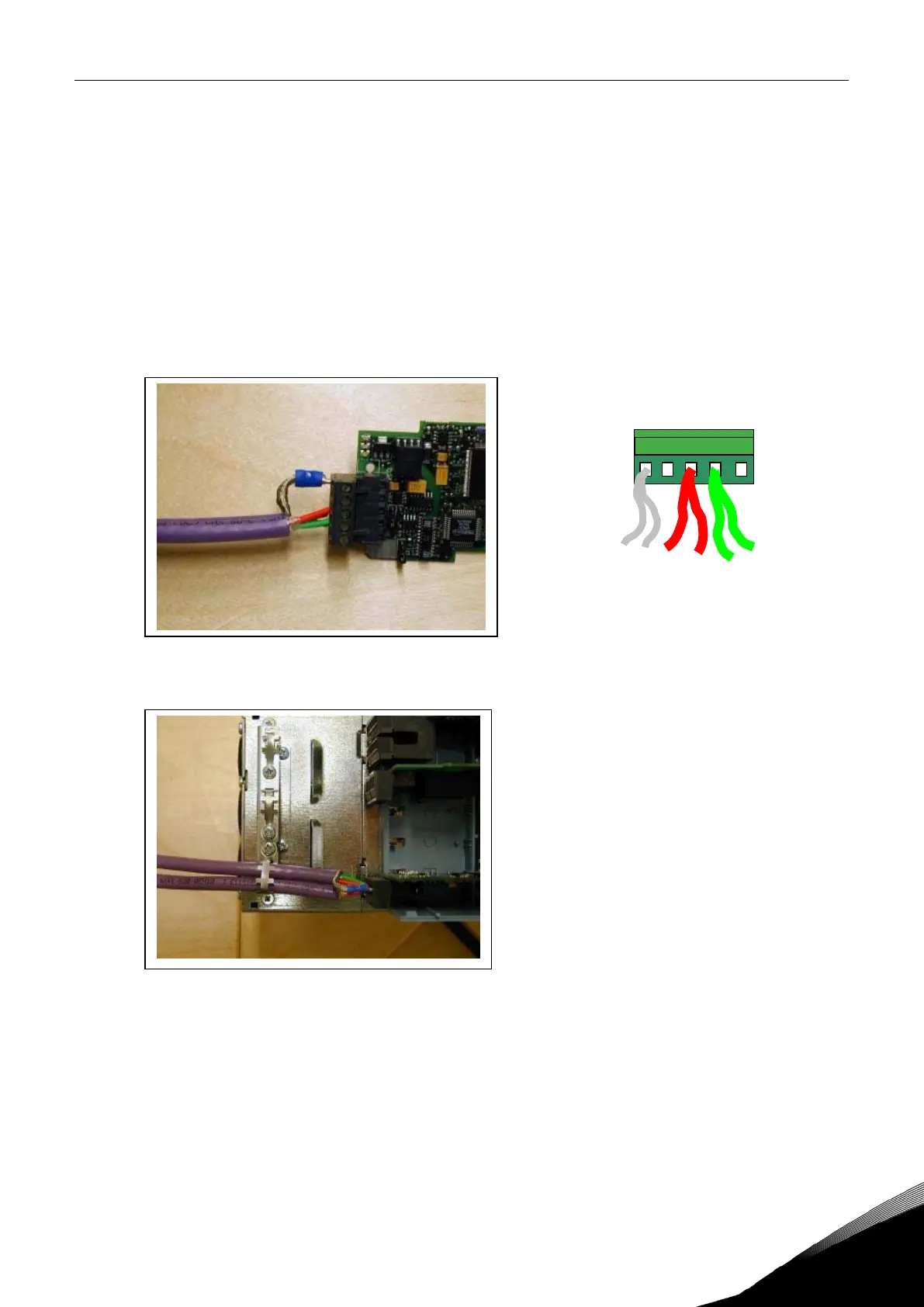

1 Strip about 5 cm of the cable and cut off the grey cable shield. Remember to do this for both
bus cables (except for the last device).
2 Leave no more than 1 cm of the cable outside the terminal block and strip the data cables at
about 0.5 cm to fit in the terminals. See Figure 6.
Note: Do this for both bus cables.
Figure 6.
3 Fix both the cables on the frame with the clamp. See Figure 7.
Figure 7.
1 2 3 4 5
B
A
Shield
