VADDIO EasyTalk - Diagram: Large Conference Table with Ceiling Speakers; Diagram: Large Conference Table with Ceiling Speakers and Ceiling Mics

EasyTalk USB Tools
Vaddio EasyTalk USB Solution - Document Number 342-0449 Rev A Page 17 of 48

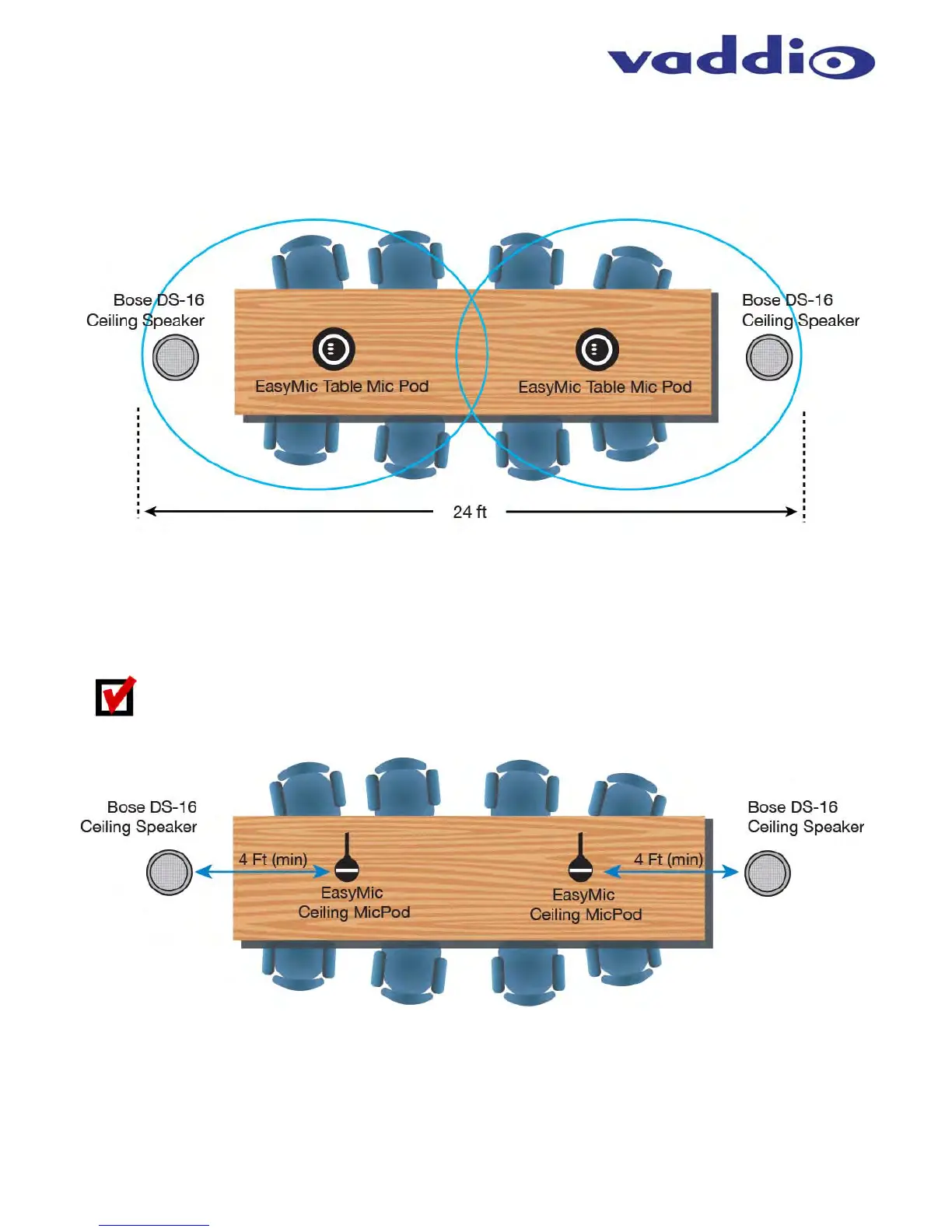

Diagram: Large Conference Table with Ceiling Speakers
System with one (1) EasyUSB Mixer/Amp two (2) EasyMic MicPODs and two (2) EasyTalk ceiling speakers
(camera and monitor not shown)
Diagram: Large Conference Table with Ceiling Speakers and Ceiling Mics
System with one (1) EasyUSB Mixer/Amp, two (2) EasyMic Ceiling MicPODs* and two (2) EasyTalk Ceiling
Speakers (camera and monitor not shown)
*Note the distance requirement between the ceiling speakers and the ceiling microphones is 4’ (1.22m).
