Vaddio EasyTalk USB Solution - Document Number 342-0449 Rev A Page 27 of 48
EasyTalk Sound Bar Installation:
STEP 1 (Table Installation): Attach included rubber feet approximately 2” from each end of the Sound Bar.
STEP 1a (Wall Installation): Attach four rubber bumpers on the back side of the Sound Bar corners.
Step 2: Connect speaker wire to the Left and Right speaker terminals on the rear of the Sound Bar. It is
recommended to leave the center speaker terminal unconnected. Attach the 2-pin phoenix-type plug to the
speaker wire following positive and negative wiring scheme. Connect the 2-pin plug to the speaker terminals on
the back of the EasyUSB Mixer/Amp.
STEP 3 (Wall Installation): Hang the Sound Bar on the wall using the two keyhole slot hangers on the rear of the
Sound Bar.

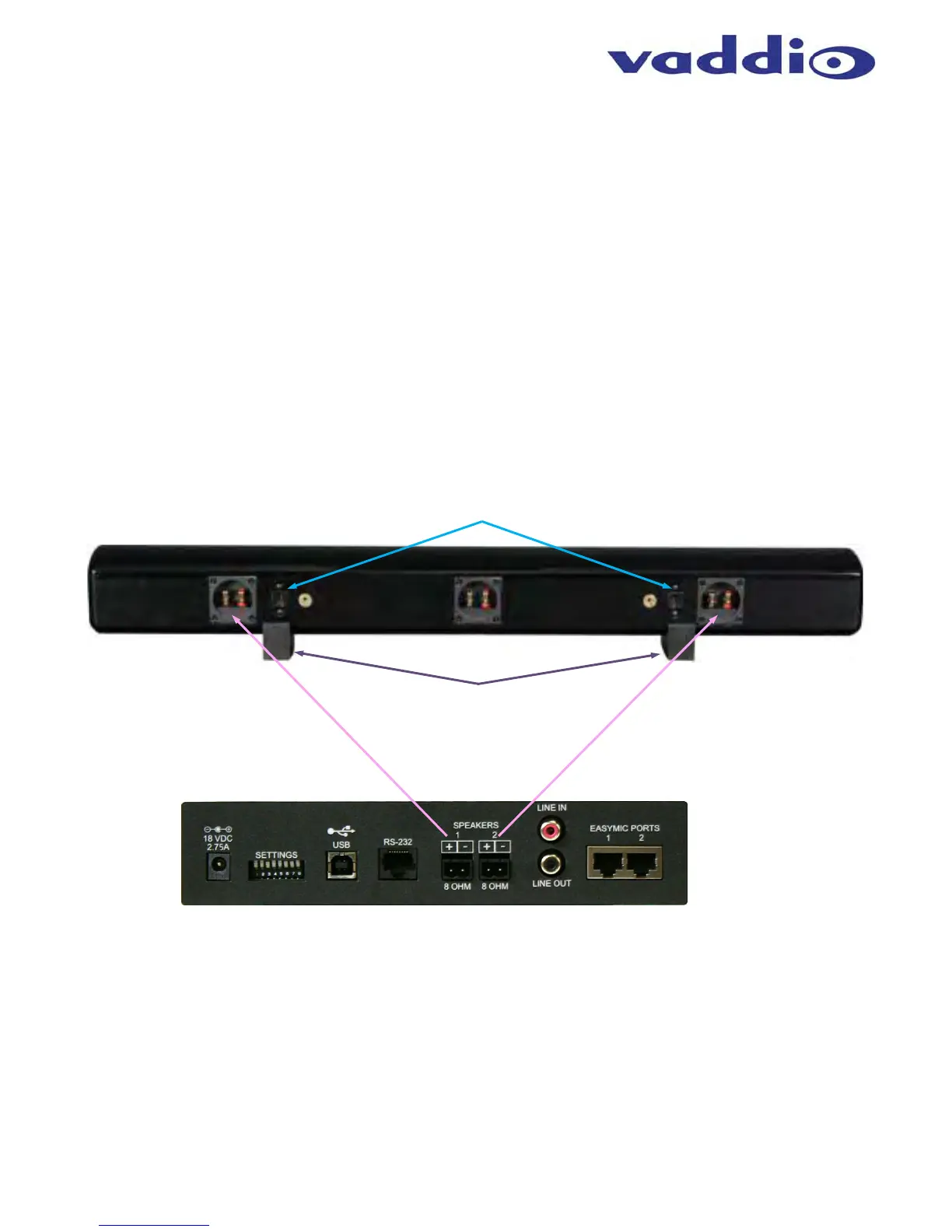

Diagram: EasyTalk Sound Bar Installation
Keyhole Hangers for
Wall Mounting
EasyUSB
Mixer/Amp
Rear Panel
Connect the Left and
Right Side Speakers
with Provided 6’
(1.8m) cable
Rubber Feet for
Table Mounting
