Supplied By www.heating spares.co Tel. 0161 620 6677
7

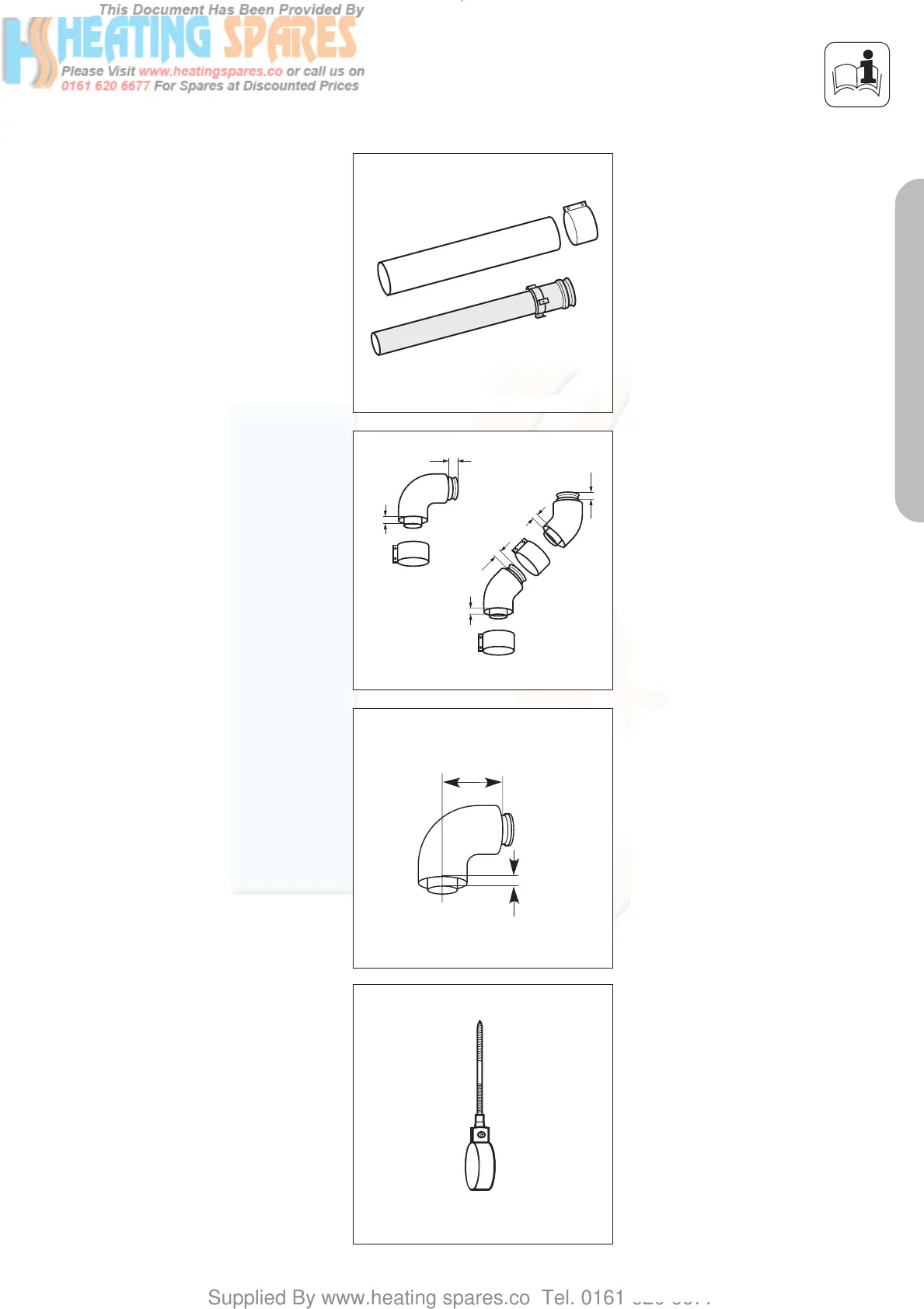

PART 1 CONCENTRIC 60/100
PLANNING THE AIR/FLUE DUCT LAYOUT
Fig. 1.1: Extensions, Ø 60/100
13
65
Fig. 1.3: Elbow joints, Ø 60/100
Elbow, 87°, Ø 60/100
Only Part of:
Vaillant Accy. No.: 303 933
Vaillant Accy. No.: 303 936
18
27
18
27
18
27
Fig. 1.2: Elbow joints, Ø 60/100
Elbow, 87°, Ø 60/100
Vaillant Accy. No.: 303 910
Bends, 45° (pack of 2),
Ø 60/100
Vaillant Accy. No.: 303 911
Air/flue duct extension 470 mm
Ø 60/100
Vaillant Accy. No.: 303 902
Air/flue duct extension 970 mm,
Ø 60/100
Vaillant Accy. No.: 303 903
Air/flue duct extension 1970 mm,
Ø 60/100
Vaillant Accy. No.: 303 905
GU_LAZ 70/0
GU_LAZ 72/0
Fig. 1.4: Flue support clips, Ø 100/Ø 80
Flue support clips, Ø 100 (pack of 5)
Vaillant Accy. No.: 303 821
Use one clip per extension to
support the air/flue duct.
GU_LAZ 72/0
834449_09GB_082006.qxd 10.08.2006 12:20 Seite 7
