9Instructions for installation and servicing ecoTEC
2.4 Installation
1
2
3
4
6
5
7
8
9
14
13
12
10
11

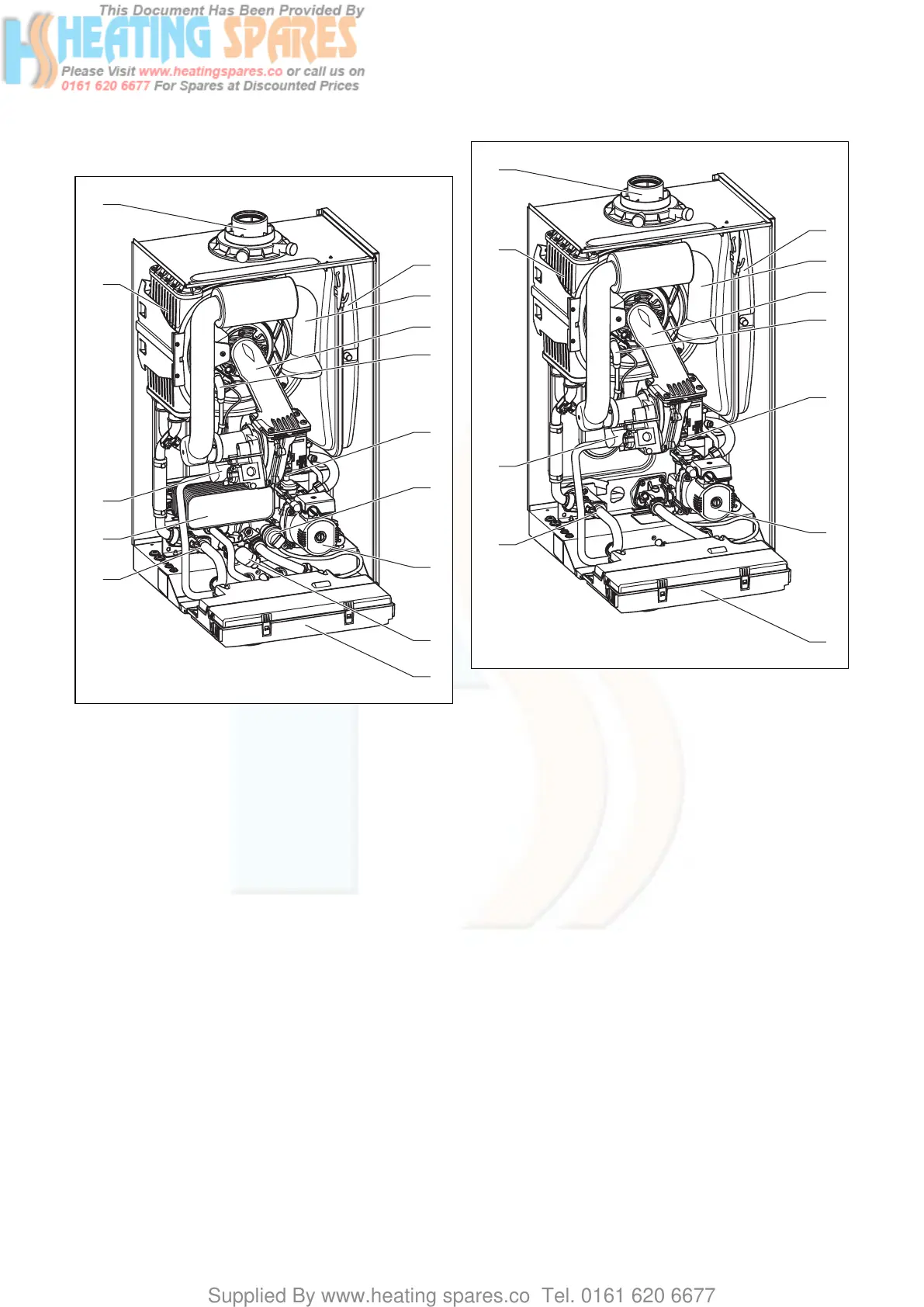

Fig. 2.2 Function elements of combination boilers
Legend:
1 Expansion vessel
2 Air intake pipe
3 Burner module
4 Ignition electrode
5 Fan
6 Diverter valve with by-pass
7 Pump
8 Aqua-Sensor
9 Electronics box
10 Pressure sensor
11 Hot water heat exchanger
12 Gas valve
13 Heat exchanger
14 Flue pipe connection
1
2
3
4
5
7
9
14
13
12
10
Fig. 2.3 Function elements of system boilers
Legend:
1 Expansion vessel
2 Air intake pipe
3 Burner module
4 Ignition electrode
5 Fan
7 Pump
9 Electronics box
10 Pressure sensor
12 Gas valve
13 Heat exchanger
14 Flue pipe connection
2.5 Type plate
The type plate of the Valliant ecoTEC is attached to the
bottom of the appliance at the factory.
Boiler specifications 2

Vaillant ecoTEC plus 624 Specifications

General

Model	ecoTEC plus 624
Category	Boiler
Output	24 kW
Dimensions (H x W x D)	720 x 440 x 338 mm
Mounting	Wall-mounted
Fuel	Natural Gas
Warranty	5 years
Type	Combination
Central Heating Flow Temperature Range	30°C to 80°C
