21
PART 1 CONCENTRIC 60/100
INSTALLATION OF THE BLACK TERMINAL KIT
Black terminal kit
Accy. No.: 303 934
Contents of the accessory:
• Black terminal
• External wall seal

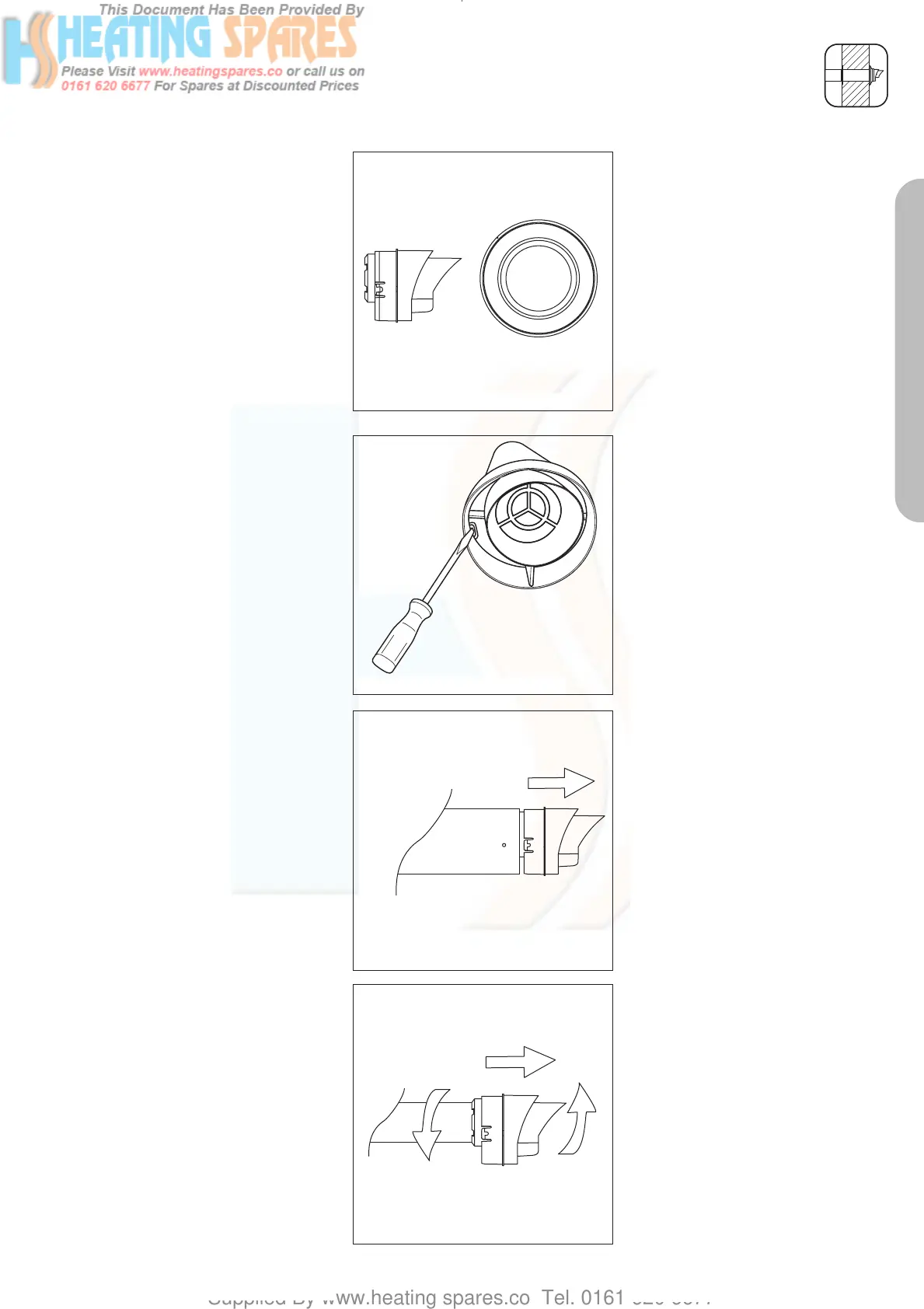

Fig. 3.19: Black kit
Assembly
Before installing the flue
duct
• Use an 8 mm screwdriver to bend
the catches inwards (fig. 3.20).
• Pull the terminal together with the
flue duct out of the air duct (fig.
3.21).
• Unlock the catch between the
terminal and the flue duct by
twisting them against each other
(fig. 3.22).
• Pull the terminal off the flue duct.
• Push the new terminal into the flue
duct and click to lock.
☞ Please note: The catch on the top
of the terminal must lock firmly
into the notch in the flue duct
(fig. 3.23).
☞ Please note: Make sure the seal
fits tightly.
• Push the flue duct and the terminal
back into the air duct and lock the
two catches (fig. 3.24).
Caution!
The seam of the air duct must be at
the top.
• Fit the horizontal air/flue duct as
described on pages 15 and 18.
Fig. 3.22: Unlocking the catch
Fig. 3.21: Pulling out the terminal
Fig. 3.20: Releasing the catches
834449_09GB_082006.qxd 10.08.2006 12:20 Seite 21
