32
How to install
2x 87° elbows
• When using 2 x 87° elbows
follow fig. 6.1 to fig. 6.3 to avoid
obstructions on outer wall.
Note: The elbows must be
correctly aligned to avoid undue
stress on the joints and risk of
leakage.
The elbow fitted to the top of the
boiler (1) should be twisted by 3°
to ensure that the second 87° el-
bow (2) exits the wall perpen-
dicular.
• When using elbows for long flue
runs in a corner follow fig. 6.4
and fig. 6.5 to avoid obtrsuctions.
☞ Note: The elbows must be
correctly aligned to avoid undue
stress on the joints an risk of
leakage.
The elbow fitted to the top of the
boiler (1) should be twisted by 3°
to ensure that the second 87° el-
bow (2) exits the wall perpendi-
cular.
When using 87° elbow install with
a slope of 3° between wall and
air-flue pipe (fig. 6.4) or use 2 x
45° elbows (fig. 6.5).
1
2
* = 3
*
1
2
* = 3
*
1
2

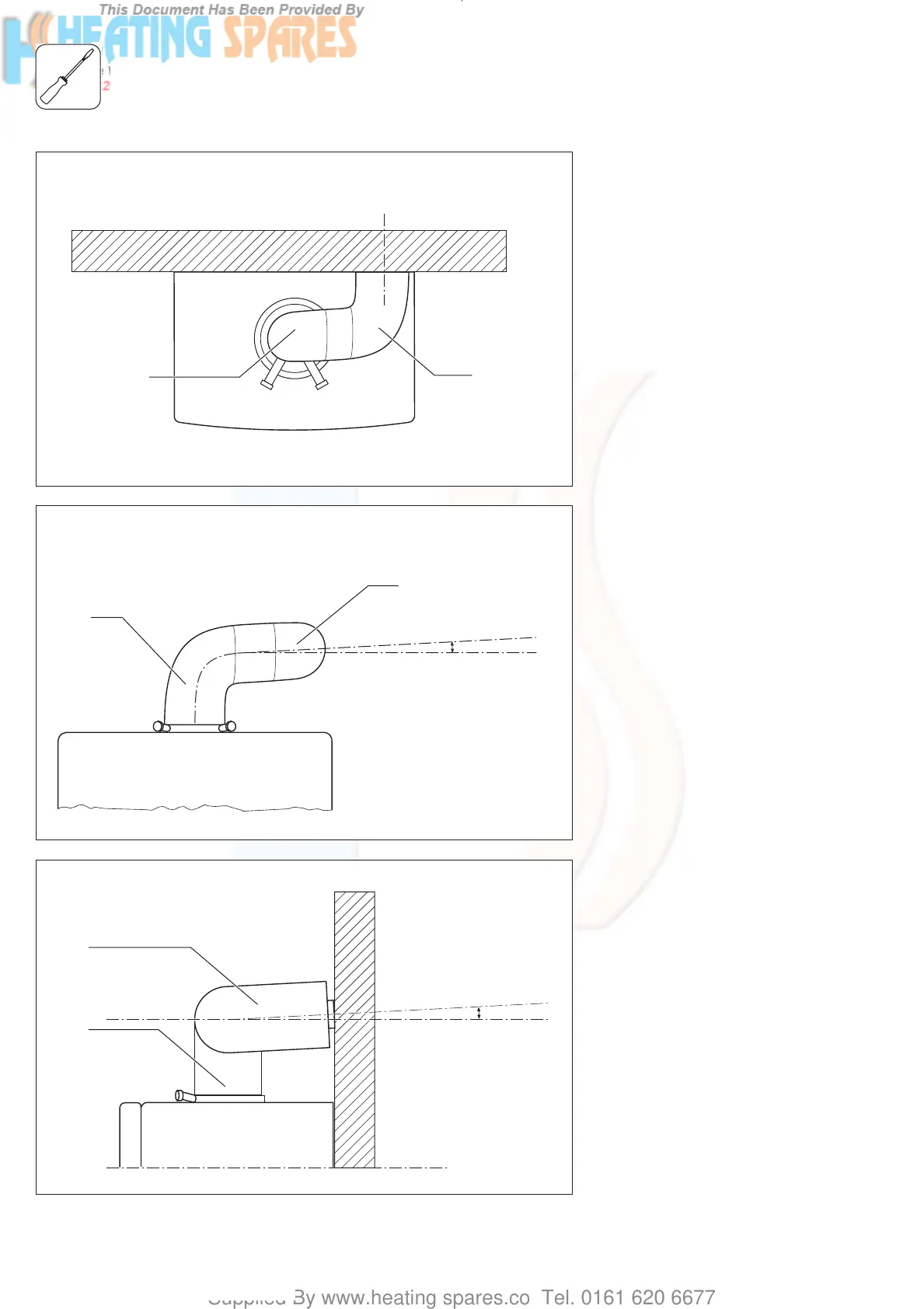

Fig. 6.1: Arrangement of 2 x 87° elbows – View from above
Fig. 6.2: Arrangement of 2 x 87° elbows – View from front
Fig. 6.3: Arrangement of 2 x 87° elbows – View from side
FITTING AIR/FLUE DUCT EXTENSIONS
834449_09GB_082006.qxd 10.08.2006 12:20 Seite 32
