35
FITTING AIR/FLUE DUCT EXTENSIONS
90 0 210
95 0 215
100 0 220
> 105 to not
< 155 mm possible
160 86 280
165 93 285
170 100 290
175 107 295
180 115 300
185 122 305
190 129 310
195 136 315
200 143 320
205 150 325
210 157 330
215 164 335
220 171 340
225 178 345
230 185 350
235 192 355
240 199 360
245 206 365
250 214 370
255 221 375
260 228 380
265 235 385
270 242 390
275 249 395
280 256 400
285 263 405
290 270 410
295 277 415
300 284 420
305 291 425
310 298 430
315 306 435
320 313 440
Offset Length of Height
[in mm] air conduit [in mm]
[in mm]
Offset Length of Height
[in mm] air conduit [in mm]
[in mm]
Table 6.2: Length of surplus with 45° bends
Offset Length of Height
[in mm] air conduit [in mm]
[in mm]
How to install 45° elbows
Accy. No.: 303 911
Example:
An offset of 400 mm is measured.
This value is then used, along with the
table below, to determine the length
of the air conduit (= 284 mm) and the
height (= 420 mm).
Important:
This gives a corresponding
exhaust-conduit length of
284 + 40 = 324 mm.
GU_LAZ 103/2GB

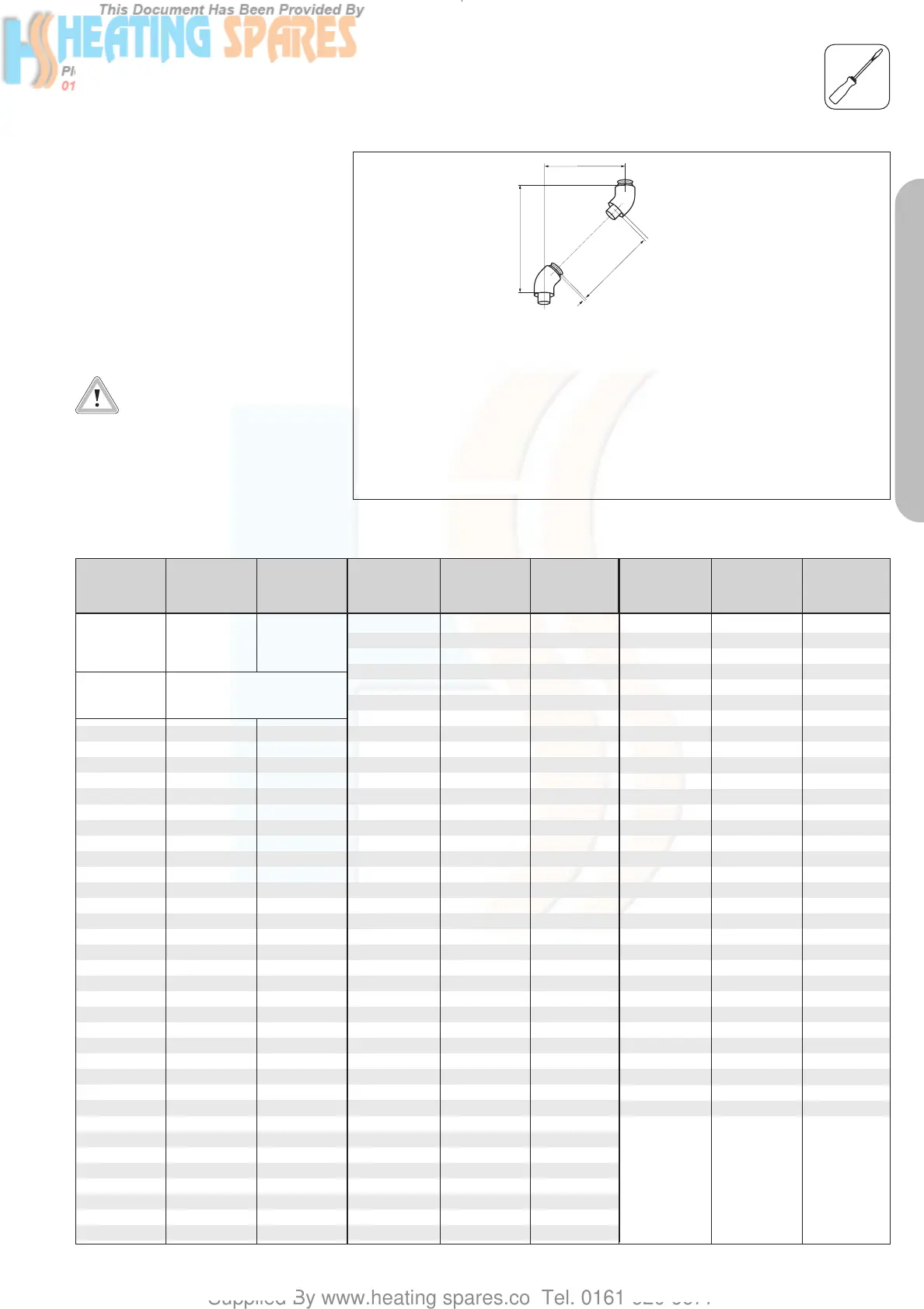

Fig. 6.4: Installation of 45° bends
325 320 445
330 327 450
335 334 455
340 341 460
345 348 465
350 355 470
355 362 475
360 369 480
365 376 485
370 383 490
375 390 495
380 397 500
385 404 505
390 412 510
395 419 515
400 426 520
405 433 525
410 440 530
415 447 535
420 454 540
425 461 545
430 468 550
435 475 555
440 482 560
445 489 565
450 496 570
455 503 575
460 511 580
465 518 585
470 525 590
475 532 595
480 539 600
485 546 605
490 553 610
495 560 615
500 567 620
505 574 625
510 581 630
515 588 635
520 595 640
525 602 645
530 610 650
535 617 655
540 624 660
545 631 665
550 638 670
555 645 675
560 652 680
565 659 685
570 666 690
575 673 695
580 680 700
585 687 705
590 694 710
595 701 715
600 709 720
605 716 725
610 723 730
615 730 735
620 737 740
625 744 745
630 751 750
635 758 755
640 765 760
645 772 765
650 779 770
655 786 775
660 793 780
665 800 785
670 808 790
675 815 795
680 822 800
thgieH
Offset
tiudnoc ria fo htgneL
01
01
GU_LAZ 102/2GB
PART 1 CONCENTRIC 60/100
834449_09GB_082006.qxd 10.08.2006 12:20 Seite 35

Vaillant ecoTEC plus 624 Specifications

General

Model	ecoTEC plus 624
Category	Boiler
Output	24 kW
Dimensions (H x W x D)	720 x 440 x 338 mm
Mounting	Wall-mounted
Fuel	Natural Gas
Warranty	5 years
Type	Combination
Central Heating Flow Temperature Range	30°C to 80°C
