39

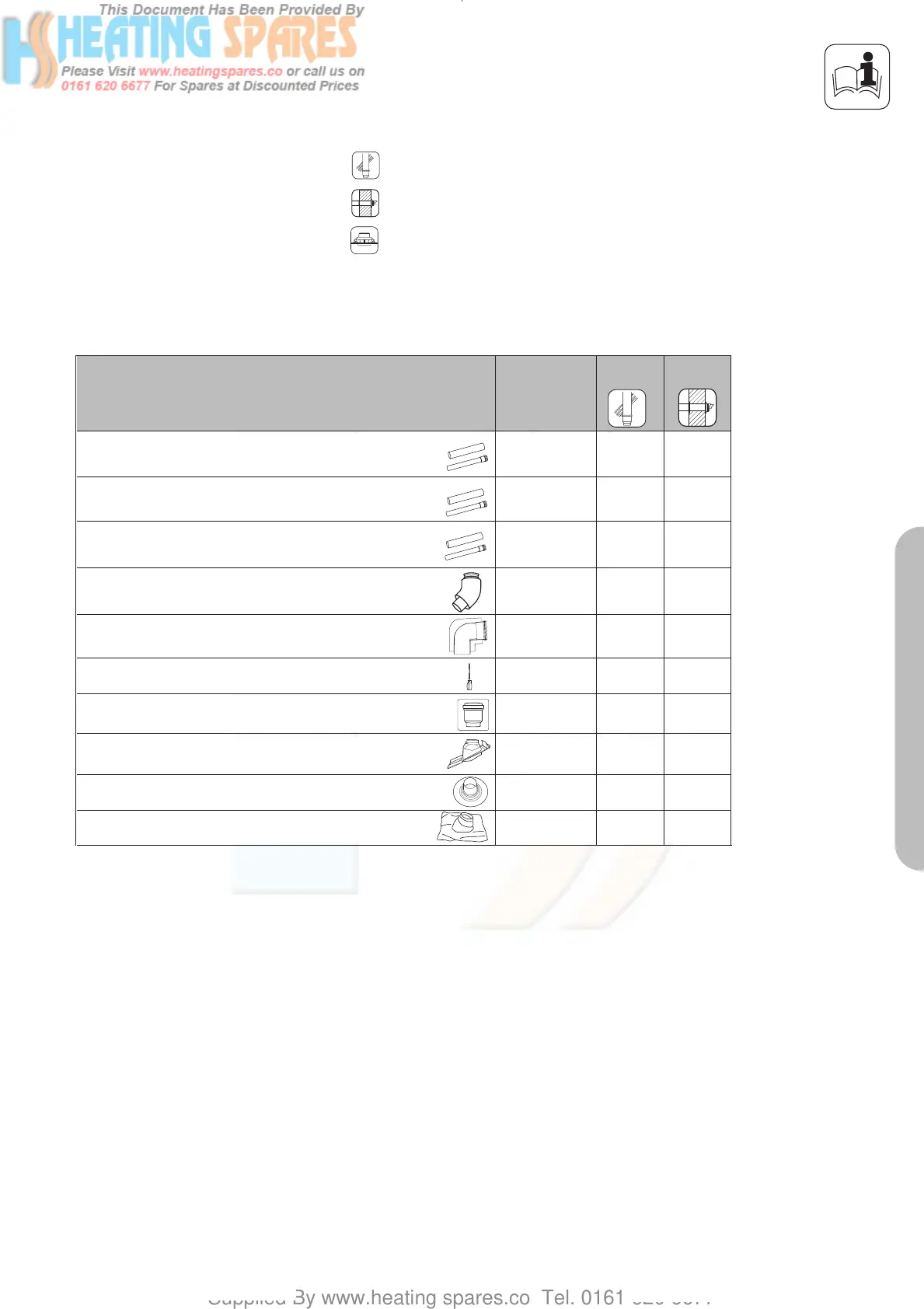

PART 2 CONCENTRIC 80/125
PLANNING THE AIR/FLUE DUCT LAYOUT
Alternative termination
accessories available
303 200 = Vertical air/flue duct (black)
303 209 = Horizontal air/flue duct
303 926 = Appliance connection piece
Optional connection accessories Accy. No.
303 200
Air/flue duct extensions (PPs), concentric
470 mm - Ø 80/125
303 202 x
Air/flue duct extensions (PPs), concentric
970 mm - Ø 80/125
303 203 x
Air/flue duct extensions (PPs), concentric
1970 mm - Ø 80/125
303 205 x
Bends (PPs), concentric (pack of 2)
45° - Ø 80/125
303 211 x
Elbow (PPs), concentric
87° - Ø 80/125
303 210 x
Flue support clips (pack of 5), Ø 125 303 616 x
Sliding sleeve (PPs) Ø 80/125 303 215 x
Adjustable roof tiles for pitched roof
009076 black
x
Flat roof penetration collar 009 056 x
303 209
x
x
x
x
x
x
x
x
x
Flexible pitched roof seal 303 980 x
834449_09GB_082006.qxd 10.08.2006 12:20 Seite 39

Vaillant ecoTEC plus 624 Specifications

General

Model	ecoTEC plus 624
Category	Boiler
Output	24 kW
Dimensions (H x W x D)	720 x 440 x 338 mm
Mounting	Wall-mounted
Fuel	Natural Gas
Warranty	5 years
Type	Combination
Central Heating Flow Temperature Range	30°C to 80°C
