PART 2 CONCENTRIC 80/125
PLANNING THE AIR/FLUE DUCT LAYOUT
498
132
255

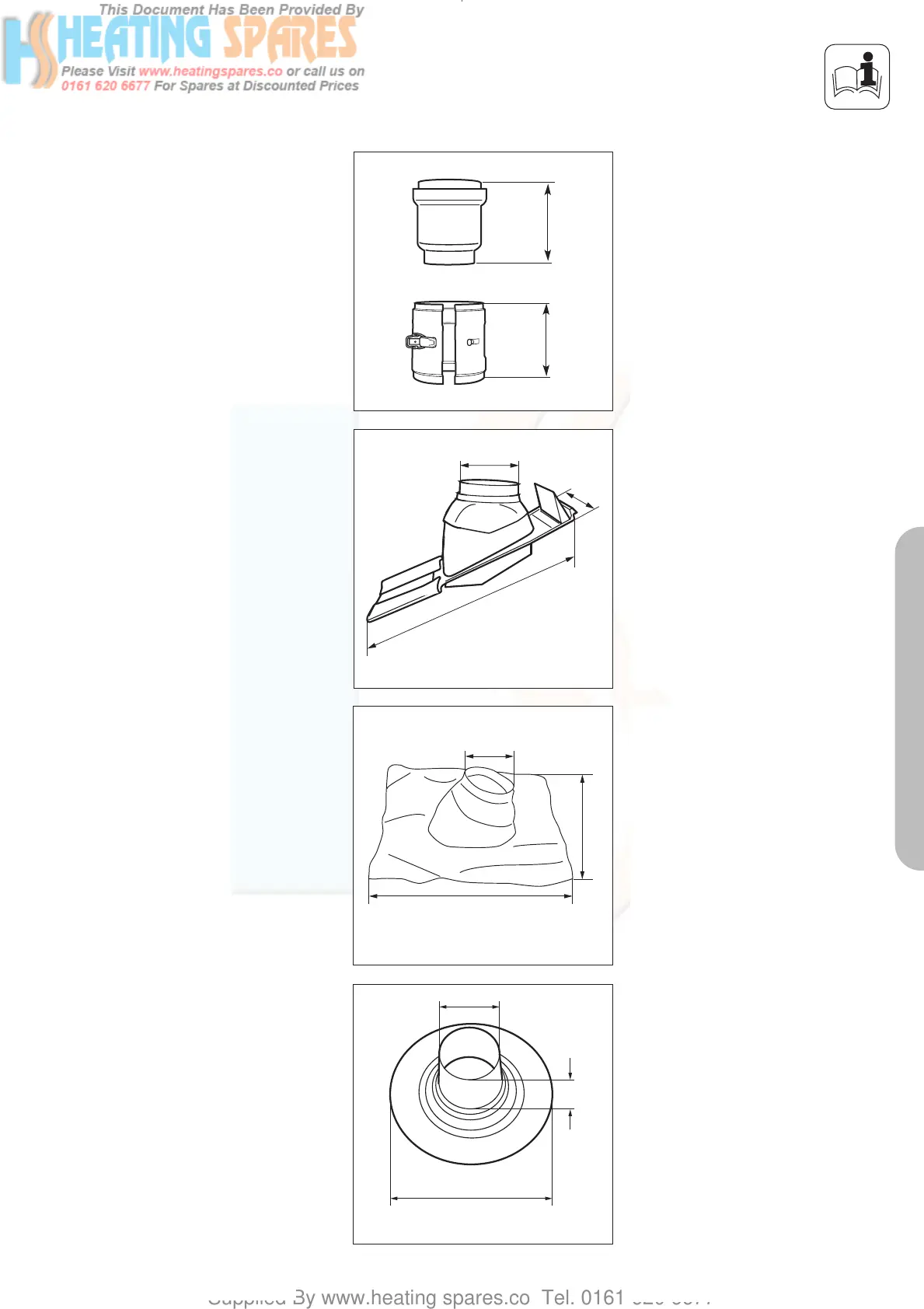

Fig. 1.6: Adjustable roof tile for pitched roof
Adjustable roof tiles for pitched roof
Vaillant Accy. No.: 009 076 (black)
GU_LAZ 41/0
164
120
Fig. 1.5: Sliding sleeve, Ø 80/125
Sliding sleeve (PPs), Ø 80/125
Vaillant Accy. No.: 303 215
GU_LAZ 76/0
153
130
390
Fig. 1.8: Flat roof penetration collar
GU_LAZ 42/0
Flat roof penetration collar
Vaillant Accy. No.: 009 056
495
132
495
Fig. 1.7: Flexible pitched roof seal
Flexible pitched roof seal (black)
Vaillant Accy. No.: 303 980
