20 Installation and maintenance manual ecoTEC
bar
1
2
3
4
5
6
7

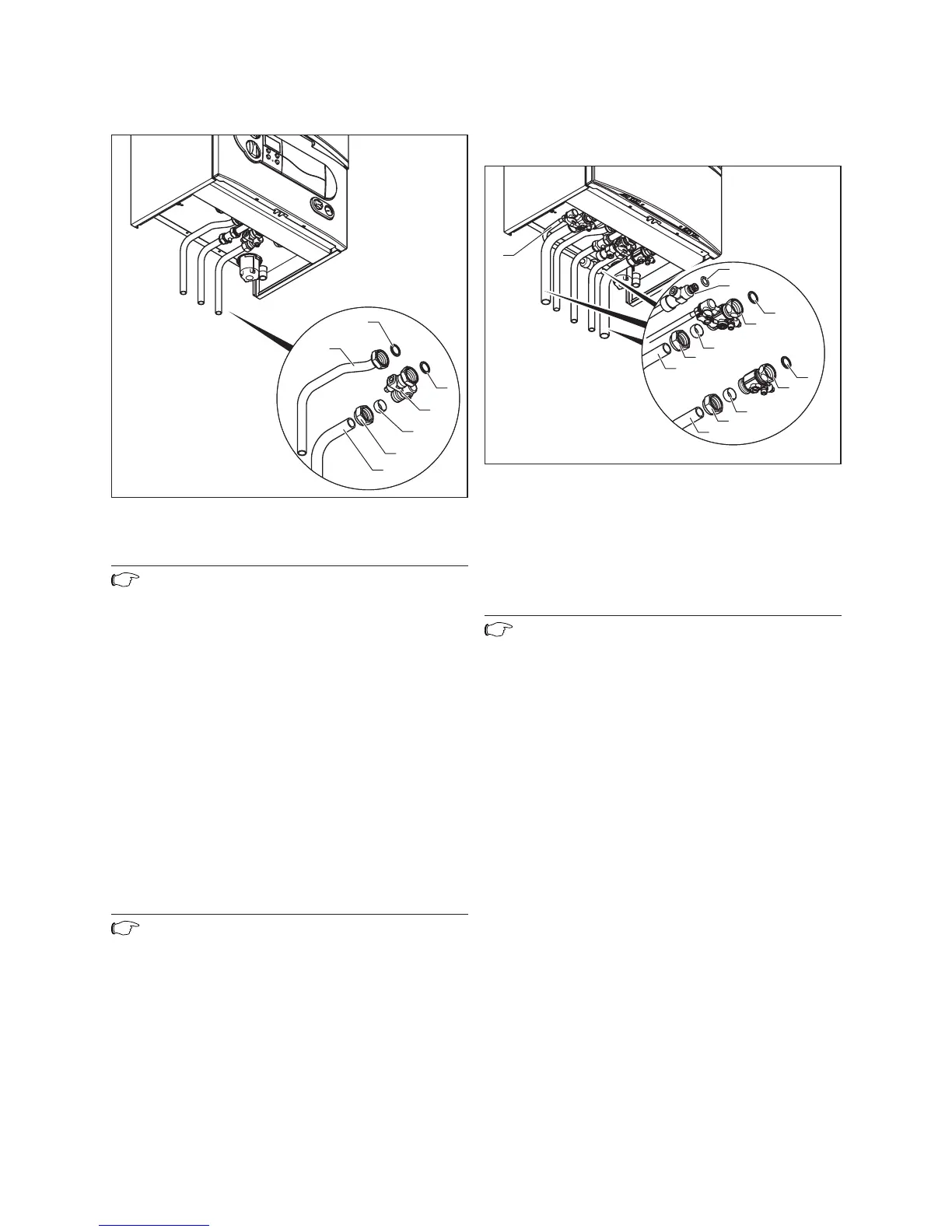

Fig. 4.7 Installing the hot and cold water connection (ecoTEC
pro)
Note
Flush all foreign matter from the mains supply
before connecting to the boiler.
• Insert the packing (1) and screw in the maintenance
tap (2) at the appliance cold water connection.
• Insert the union nut (4) and the pinching ring (3) on
the conduit arc provided with ecoTEC plus appliances
(5). The diameter of the conduit is 15 mm.
• Insert the conduit arc until the stopper in the mainte-
nance tap. Tighten the union nuts in this position.
• Insert the packing (7) and screw in the conduit (6) on
the appliance hot water connection. The diameter of
the conduit is 15 mm.
• Mount the handle for the fill-up valve with a counter-
sunk screw on the maintenance tap (2).
4.10 Heating connection
4.10.1 Heating flow and return connection
Note
Before connecting the heating circuit to the
boiler, all pipework and radiators must be thor-
oughly flushed to remove any installation
debris.
ecoTEC plus, 800 series
10
11
12
13
9
8
7
6
1
2
3
4
5
Fig. 4.8 Installing the heating flow and return connection for
ecoTEC plus, 800 series
• Insert the packing (1) and screw in the maintenance
tap (2) at the return connection of the appliance.
• Insert the packing (10) and screw in the maintenance
tap (9) at the flow connection of the appliance.
• Install the O-ring seal (12) on the return valve (11).
Note
Lay the filling conduit (13) above the conduit
elbows.
• Insert the union nuts (4) and (7) as well as the pinch-
ing rings (3) and (8) on the conduit elbows (5) and
(6). The diameter of the conduits is 22 mm.
• Insert the conduit elbows until the stopper in the
maintenance taps. Tighten the union nuts in this posi-
tion.
• Mount the handle for the fill-up valve with a counter-
sunk screw on the maintenance tap (9).
4 Boiler installation sequence
