Vaillant ecoTEC plus Setup Instructions

5 Set-up
14 Set-up instructions 0020200969_07

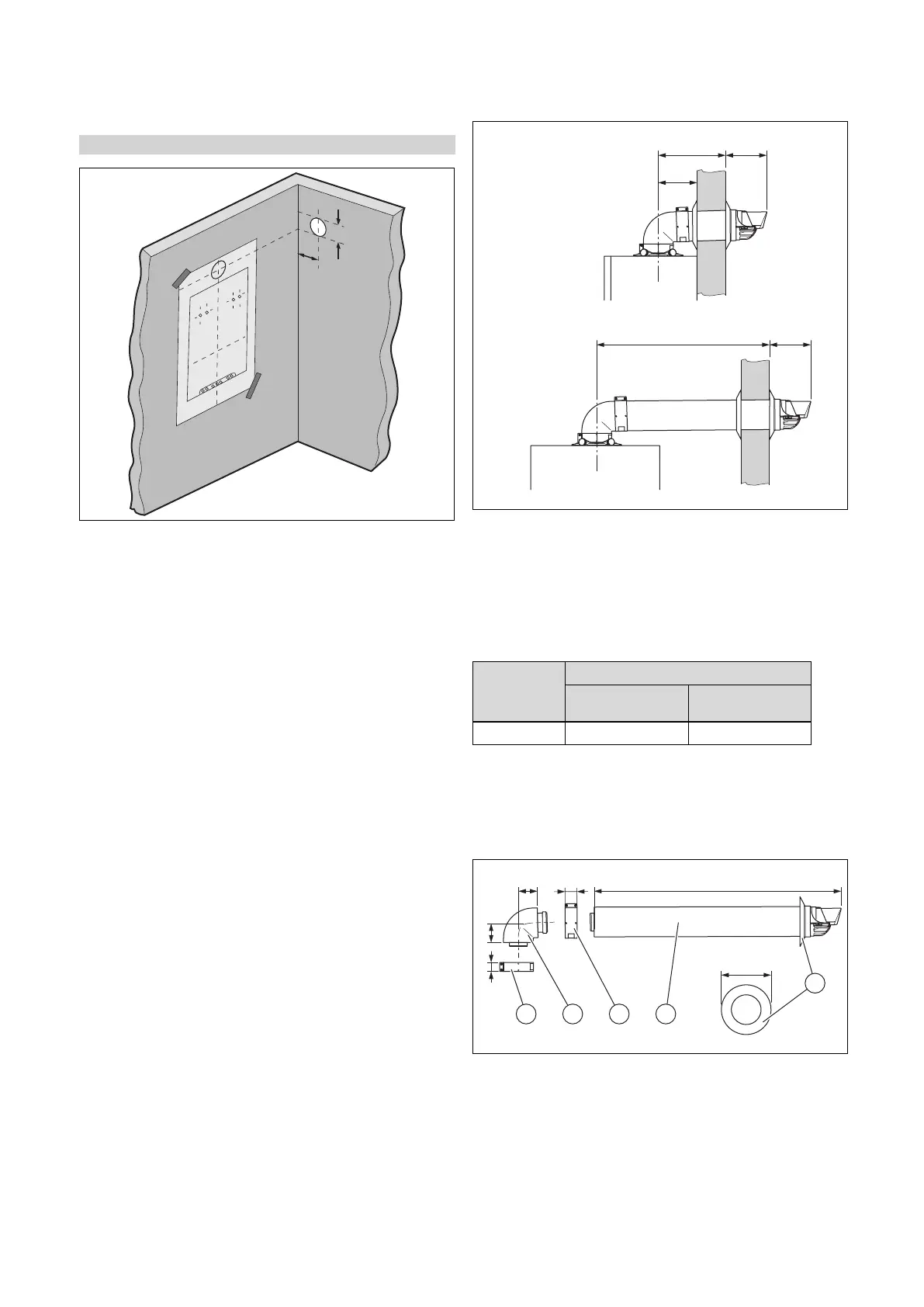

The mounting template indicates the position for horizontal
installation of the air/flue pipe when connecting it to the up-
per side of the boiler.
Condition: Top connection, air/flue pipe to the side
A
A = 125 mm
If you want to install the air/flue pipe laterally, you can de-
termine the position of the wall duct by carefully offsetting the
central line of the wall duct that is marked on the mounting
template.
▶ Calculate the required gradient in accordance with the
length of the flue pipework and then mark the position for
the wall duct.
5.2.2 Determining the clearance to the external
wall
AC
A
B
C
1.
2.
1. Upper flue pipe at the
rear
2. Upper flue pipe to the
side
A Clearance to the ex-
ternal wall
B Clearance to the in-
ternal wall: 105 mm
▶ Measure the clearance (A) from outside of the wall to the
centre of the connector.
Clearance to the external wall (→ Page 14)
Clearance Article number
0010035512 0020219517
0020219519
C 87 mm 140 mm
5.2.3 Installing the 60/100 mm diameter horizontal
wall/roof duct, article number 0020219517 or
0010035512
5.2.3.1 Scope of delivery 0020219517
65
832
Ø167
65
30
40
1
2345
1 Wall collar, 100 dia-
meter (2 pcs)
2 Horizontal wall duct
3 40 mm clamp
4 87° elbow
5 30 mm clamp

Vaillant ecoTEC plus Specifications

General

Model	ecoTEC plus
Category	Boiler
Type	Condensing
Dimensions (H x W x D)	720mm x 440mm x 338mm
ErP Rating	A
Mounting	Wall-mounted
Output Range	12kW to 38kW
Fuel Type	Natural Gas
Domestic Hot Water Output	38kW
Flow Rate	15.9 l/min
NOx Emissions	Class 5
Efficiency	94% (SAP 2009)
