Set-up 5
0020200969_07 Set-up instructions 15

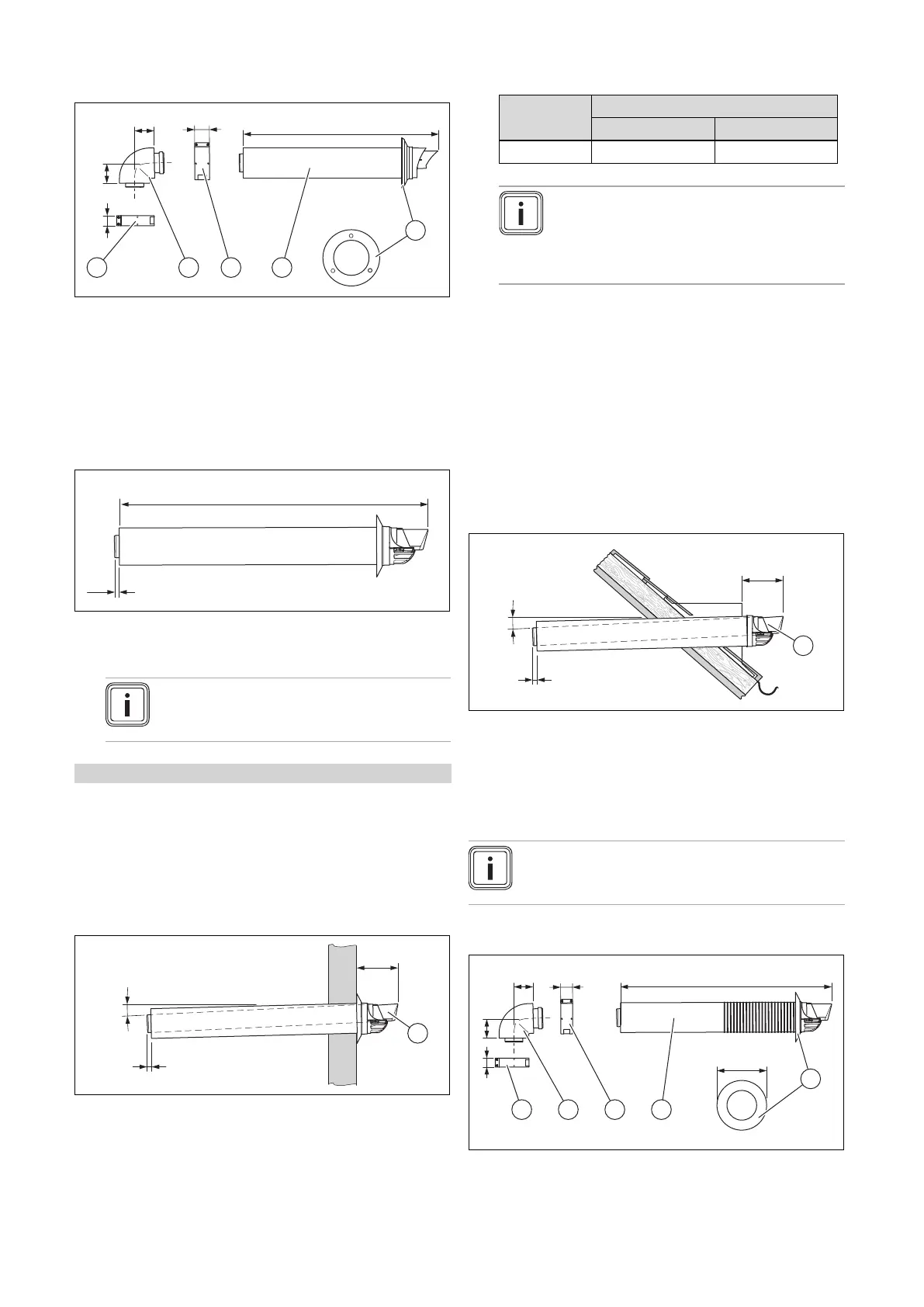

5.2.3.2 Scope of delivery 0010035512
1 Wall collar, 100 dia-
meter (2 pcs)
2 Horizontal wall/roof duct
3 48 mm clamp
4 87° elbow
5 30 mm clamp
5.2.3.3 Shortening the air/flue pipe
1. Determine the clearance to the external wall.
(→ Page 14)
2. Shorten the flue pipe and the air pipe by the same
amount when they are assembled.
Note
Disassembling the flue pipe and the air pipe
damages the latching lugs in the terminal.
Condition: Additional extensions and elbows required
▶ Install the extensions. (→ Page 29)
– All of the sleeves for the flue pipe must point towards
the terminal.
▶ Install the 45° elbow. (→ Page 32)
▶ Install the 87° elbow. (→ Page 33)
5.2.3.4 Installing the wall duct
1. Drill a hole.
– Diameter: 125 mm
Clearance Article number
0010035512 0020219517
A 87 mm 140 mm
Note
If the wall duct can be accessed from the
exterior of the building, you can drill the hole
with a diameter of 110 mm and install the
wall duct with the wall collar from outside.
2. Slide the air/flue pipe (1) with the flexible external collar
through the wall.
3. Pull the air/flue pipe back until the external collar lies
fully on the external wall.
4. Secure the air/flue pipe with mortar and leave the mor-
tar to harden.
5. Install the wall collar on the inside of the wall.
6. Connect the wall/roof duct to the product using ex-
tensions, elbows and, if required, a sliding sleeve.
(→ Page 16)
5.2.3.5 Installing the roof duct
▶ Insert the air/flue pipe (1) without the external collar into
the dormer.
5.2.4 Installing the 60/100 mm diameter horizontal
telescopic wall/roof duct, article number
0020219518
Note
The telescopic wall/roof duct is only available in
black.
5.2.4.1 Scope of delivery
1 Wall collar, 100 dia-
meter (2 pcs)
2 Horizontal telescopic
wall duct
