4.4.2 Removing the product casing

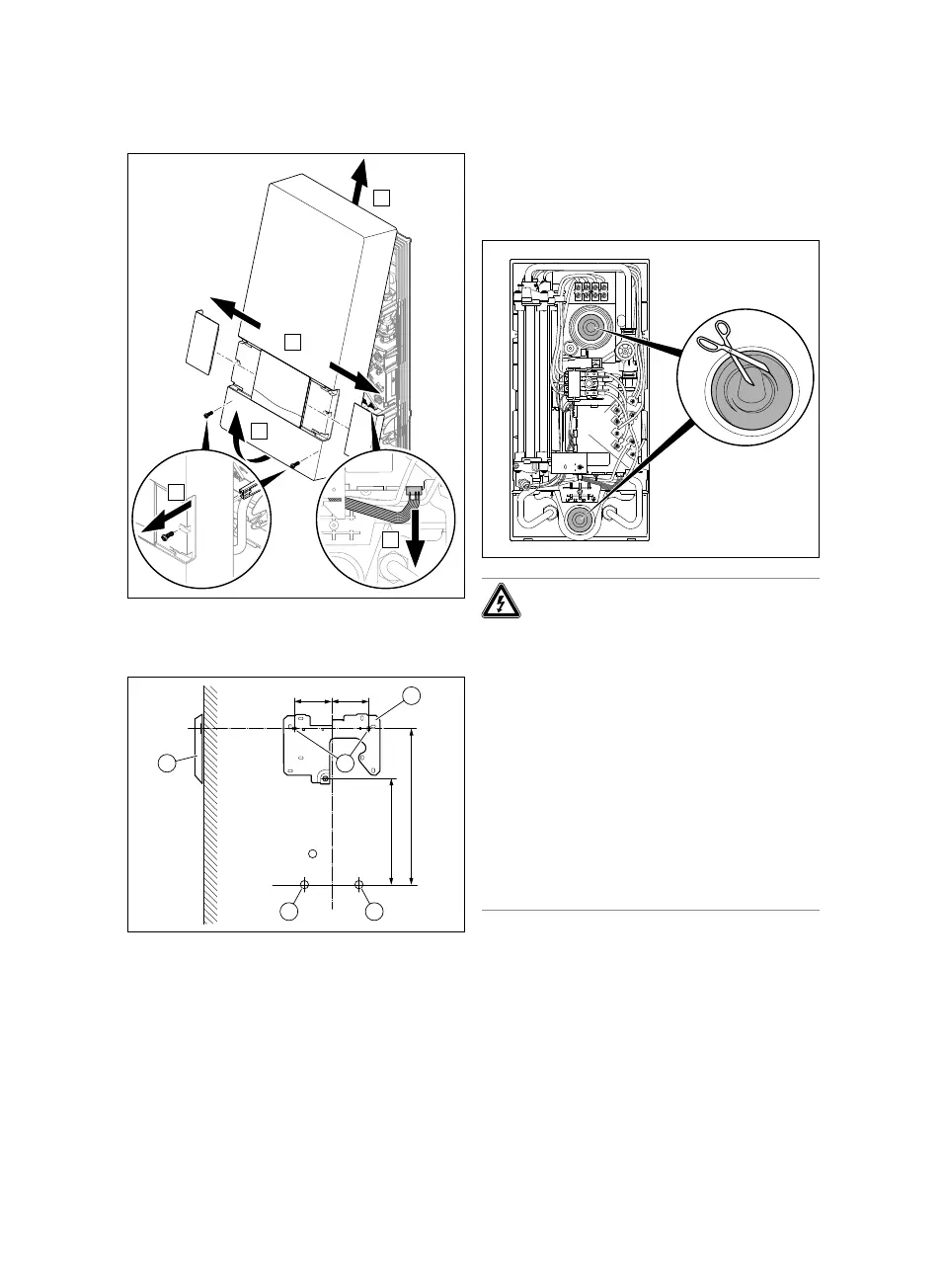

▶ Remove the product casing as shown.
4.4.3 Installing the product
1 Mounting plate
2 Fixing points
3 Cold water con-
nection
4 Domestic hot
water connection
1. Hold the mounting template against the
wall and mark the fixing points (2).
– Product alignment: Vertically on the
wall
2. Use wall plugs and screws to secure
the mounting plate (1) to the fixing
points.
Danger!
Risk of electric shock caused
by penetrating water
The grommet prevents wa-
ter from penetrating along the
power supply cable and into the
product.
▶ Never cut off the grommet
completely.
▶ Cut the end of the grommet
in such a way that the sleeve
tightly surrounds the power
supply cable.
3. Fold the grommet up or down depend-
ing on the location of the power supply
cable.
4. Feed the cable through the grommet
and into the product's interior.
