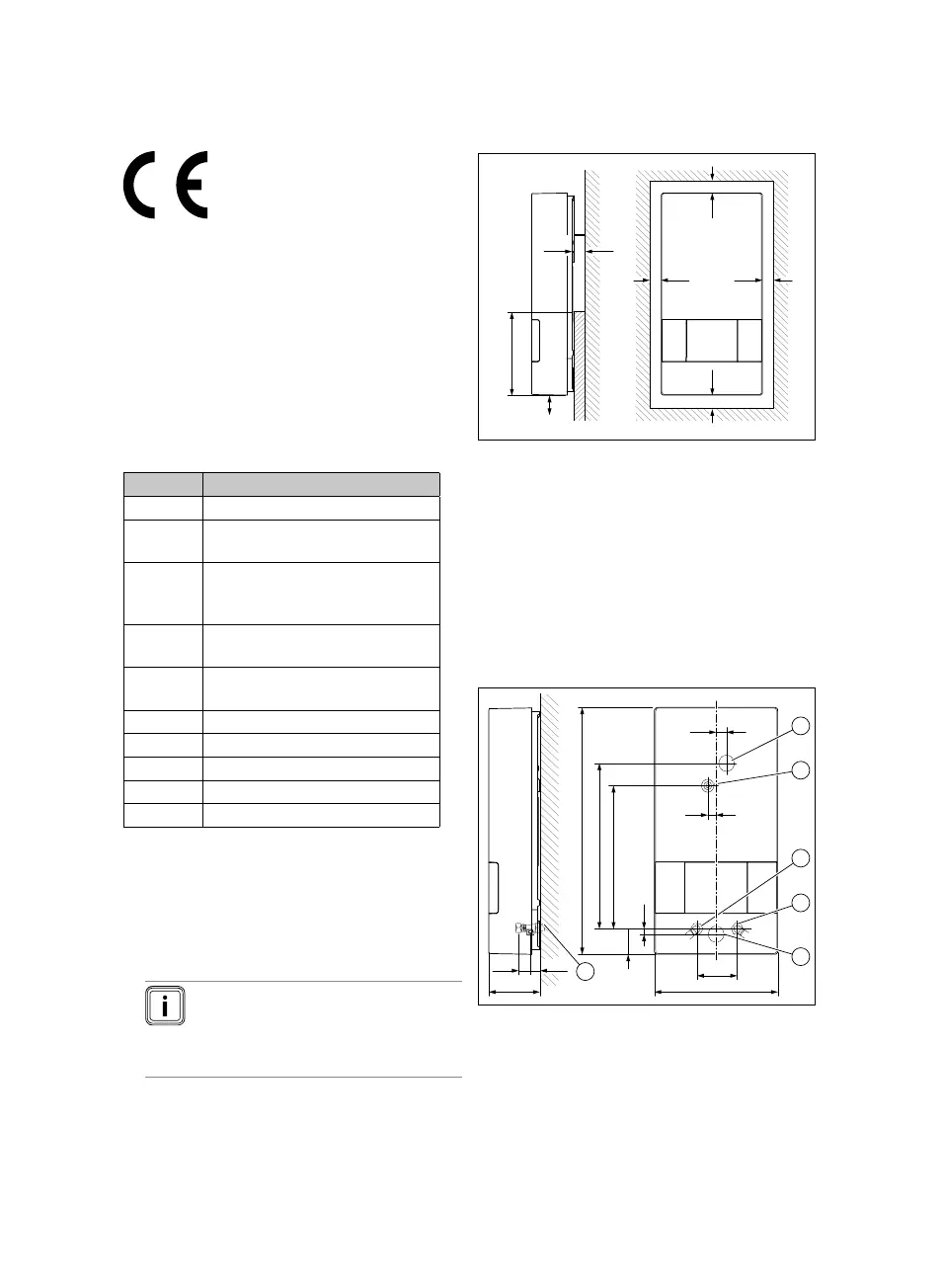

3.4 CE marking
The CE marking shows that the products
comply with the basic requirements of the
applicable directives as stated on the de-
claration of conformity.
The declaration of conformity can be
viewed at the manufacturer's site.
4 Set-up
4.1 Checking the scope of delivery
Quantity Designation
1 Product
1
Operating and installation in-
structions
1
Bag containing fixing material
(2 bolts, 2 wall plugs, 3 seals, 1
special fixing screw)
1 G 1/2" cold water connector
with a cold-water isolation valve
1 G 1/2" domestic hot water con-
nector
2 Double nipple
1 12 l/min flow rate limiter
1 Strainer for the cold water inlet
1 Mounting plate
1 Mounting template
4.2 Selecting an installation
location
▶ Install the product as close as possible
to the draw-off points that are used
most frequently.
Note
The product may also be in-
stalled above baths or in a
shower area.
4.3 Installation clearances
A ≥ 50 mm
B ≥ 50 mm
C ≥ 120 mm
D ≥ 130 mm
E ≤ 22 mm
The bottom section of the product (D) must
be level with the product's bearing area on
the wall;.
4.4 Installing the product on the
wall
4.4.1 Dimensions
1
2
3
4
5
6
481
312
240
100
277
50
12
19
16
100
35 35
1 Top grommet
2 Central attach-
ment
3 G 1/2" domestic
hot water con-
nection
4 G 1/2" cold wa-
ter connection
5 Bottom grommet
6 G 1/2" outside
thread
