Vaillant uniTOWER plus User Manual

*****INTERNAL*****30 R_D proof- 26.10.2022 / 09:15:46- VaillantGroup\DOC-agt\Brand\VIH_QW_190_6\ENG\OI-II_GB_0020291525
0020291525_04 Installation and maintenance instructions 27
B
D
A
C
2x1
2x1
1,5 x 5,5
1,5 x 5,5

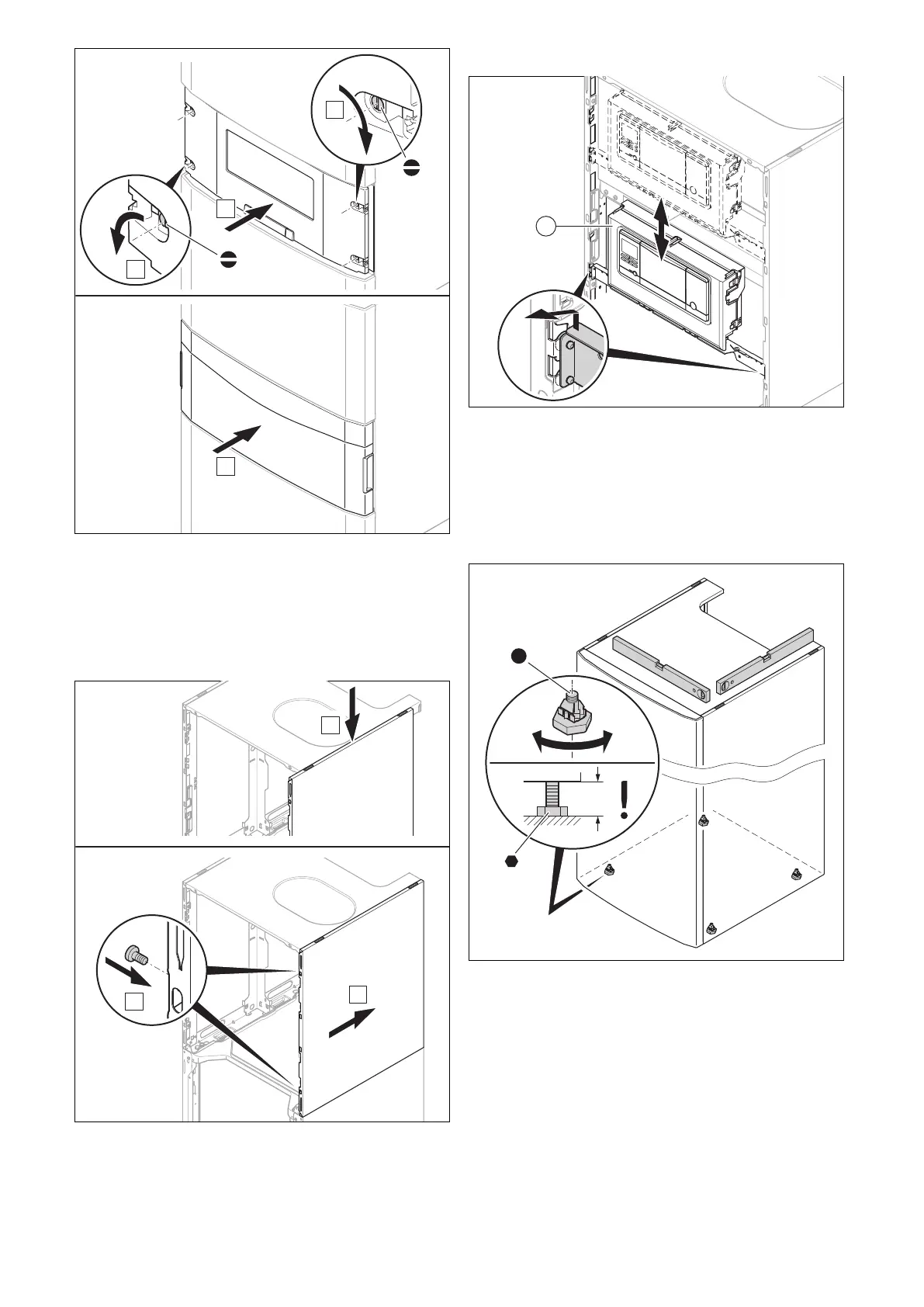

4. Fit the control panel cover and use the four screws to
secure it in place.
5. Attach the control panel's front flap and check that the
front flap can move easily when it is opened from either
side.
4.11.2 Installing the side casing
C
B
2×1
A
▶ Install the side casing as shown in the figure.
4.12 Moving the electronics box (optional)
1
1. Push the electronics box (1) upwards and pull it to-
wards you.
2. Move the electronics box into the required position.
4.13 Setting up the indoor unit
1. When setting up the product, take its weight, including
the water content, into account.
0-10
4 mm
30 mm
2. Orientate the product horizontally by adjusting the ad-
justable feet.
