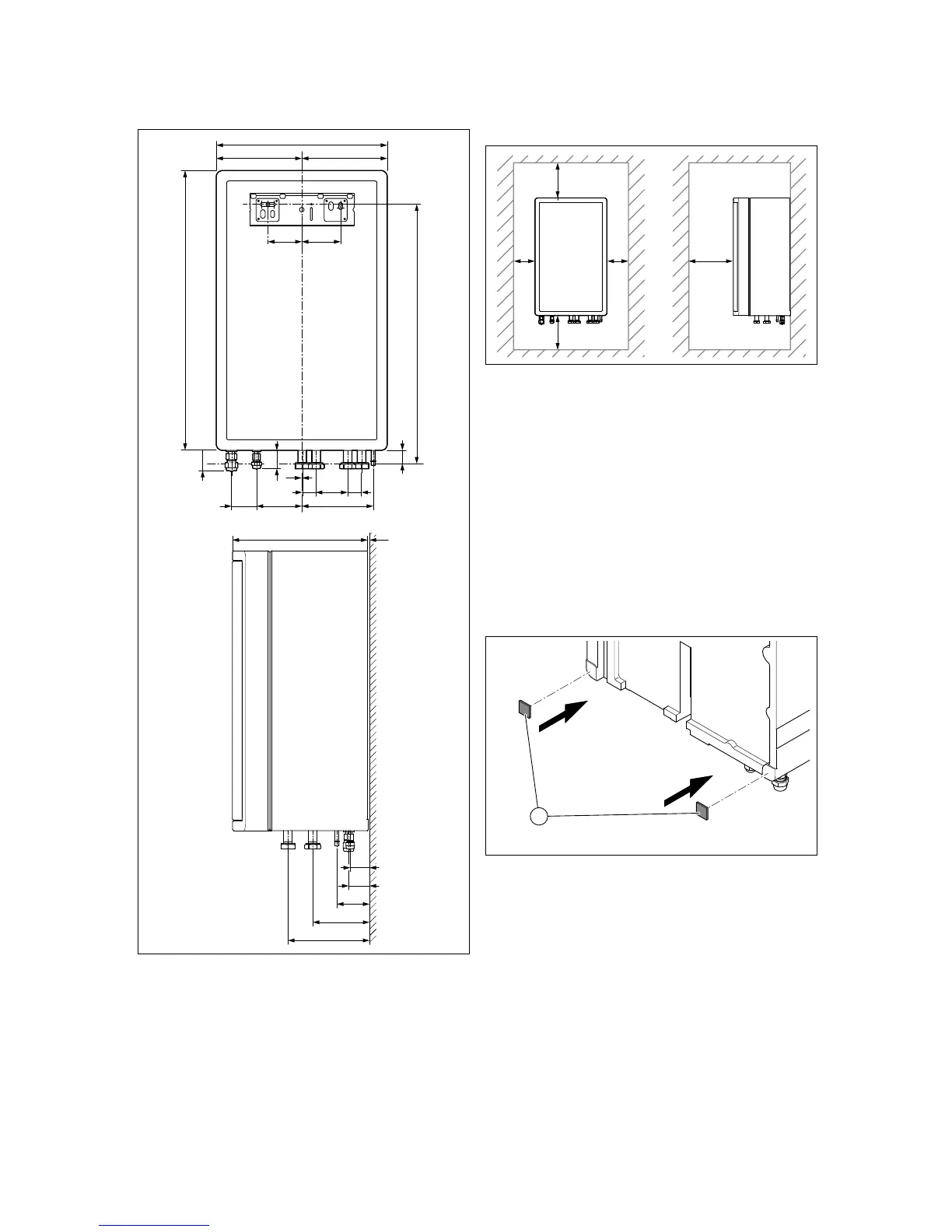

A Min. 200 mm
B Min. 200 mm
C 1000 mm
D > 600 mm
▶ Provide sufficient clearance on both sides of the product
in order to facilitate access for maintenance and repair
work.
▶ When using the accessories, observe the minimum clear-
ances/installation clearances.
▶ Ensure that no highly flammable parts come into contact
with the components as these may reach temperatures of
over 80°C.
▶
Ensure that there is a minimum clearance between the
highly flammable parts and the hot components.
– Minimum clearance: 200 mm
4.6 Wall-mounting the product
1. Cut the enclosed adhesive strips for noise reduction
into two equally sized pieces (3 cm x 3 cm).
2. Affix the adhesive strips to the product as shown in the
figure.
