Anschluss der Klimaanlage Einbauanweisung REVO-E
14

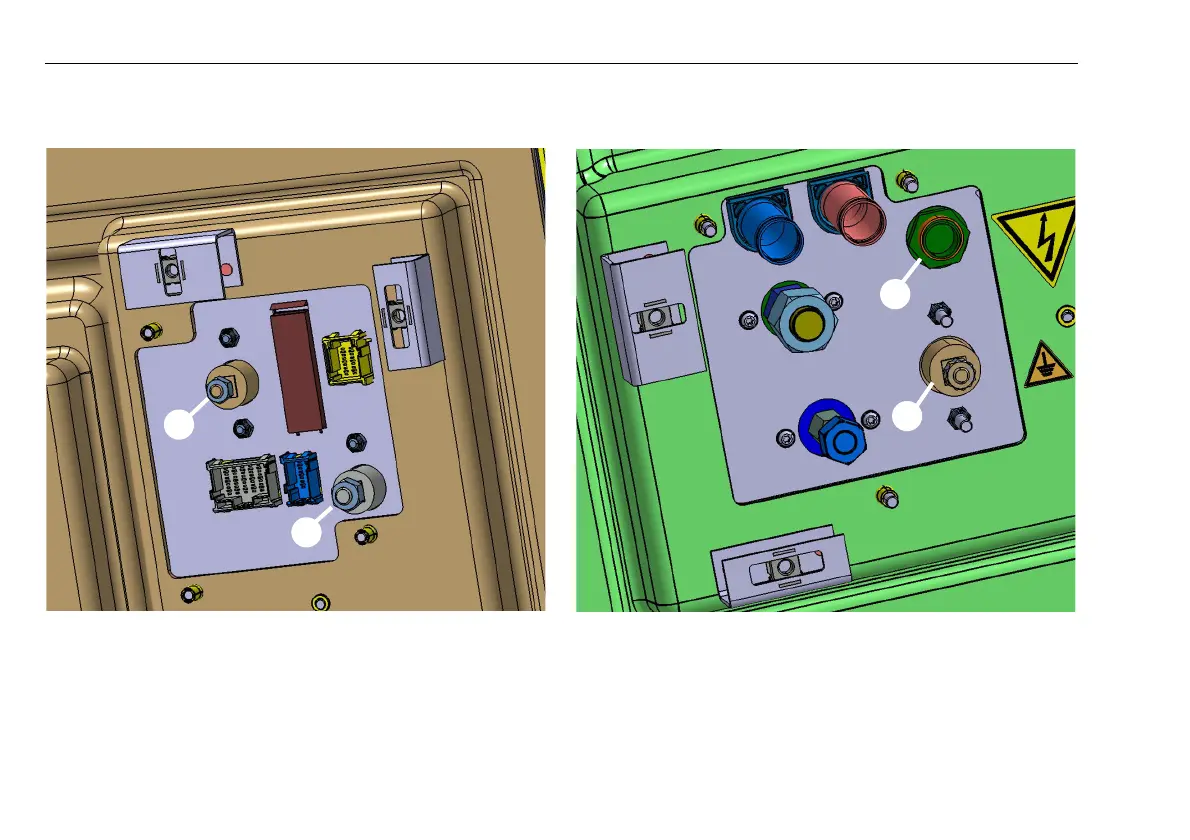

5.2. Elektrische Anschlüsse REVO-E ohne Frequenzumrichter
(compact)
1 + 24V DC
2 - 24V DC
3 PE (Potential Equalization) Anschluss
4 Öffnung Leerrohr für 400V AC Kabel (Bild 22)
Bild 20:
2
1
Bild 21:
4
3
