Installation instructions REVO-E Connecting the air-conditioning unit
37
5.3. Installation of the condensate hose pipe
A hose pipe with Id=15 mm is used as condensate hose pipe. The hose
pipe is fixed to the 4 condensate drains with hose clamps. The tightening
torque should be maximum 4 Nm.
From each drainage point a hose pipe with a loop downwards must be
placed: Joining two hose pipes on each side is not advisable since the
condensate passage cannot be guaranteed in every state of driving.
The condensate pipes must be fastened at every 30 - 40 cm. Adding
more weight (e.g. cable harnesses) is not permissible since the drainage
pipe may break.
To ensure better water flow Valeo recommends usage of lip valves.

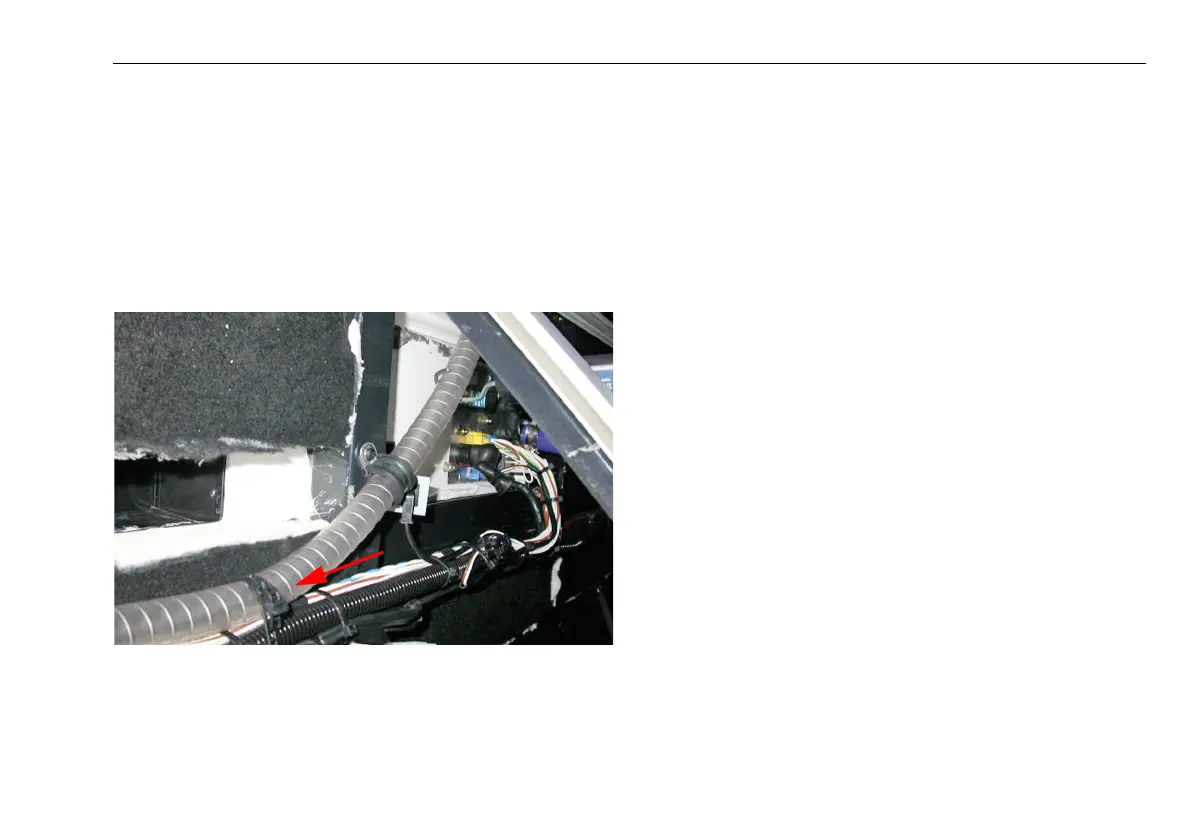

Figure 24:
