Installation instructions REVO-E Installation of the air-conditioning unit
31
4.4. Mounting the air-conditioning unit
Lift the air-conditioning unit over the vehicle’s roof, place it centrally and
insert the fastening bolts through the drill holes on the roof, use as-
sembly aids (follow processing time prescribed by the manufacturer of
the adhesive material).
ATTENTION:
Make sure to prevent the condensate drain stubs from hitting the shell
as it may cause damage.
4.5. Fastening the unit
Fix all fastening points from inside using an adequately large washer
and a nut (if using an Armaflex frame) or a screw (if using a mounting
frame) and tighten them uniformly (torque: 14 ±1 Nm).

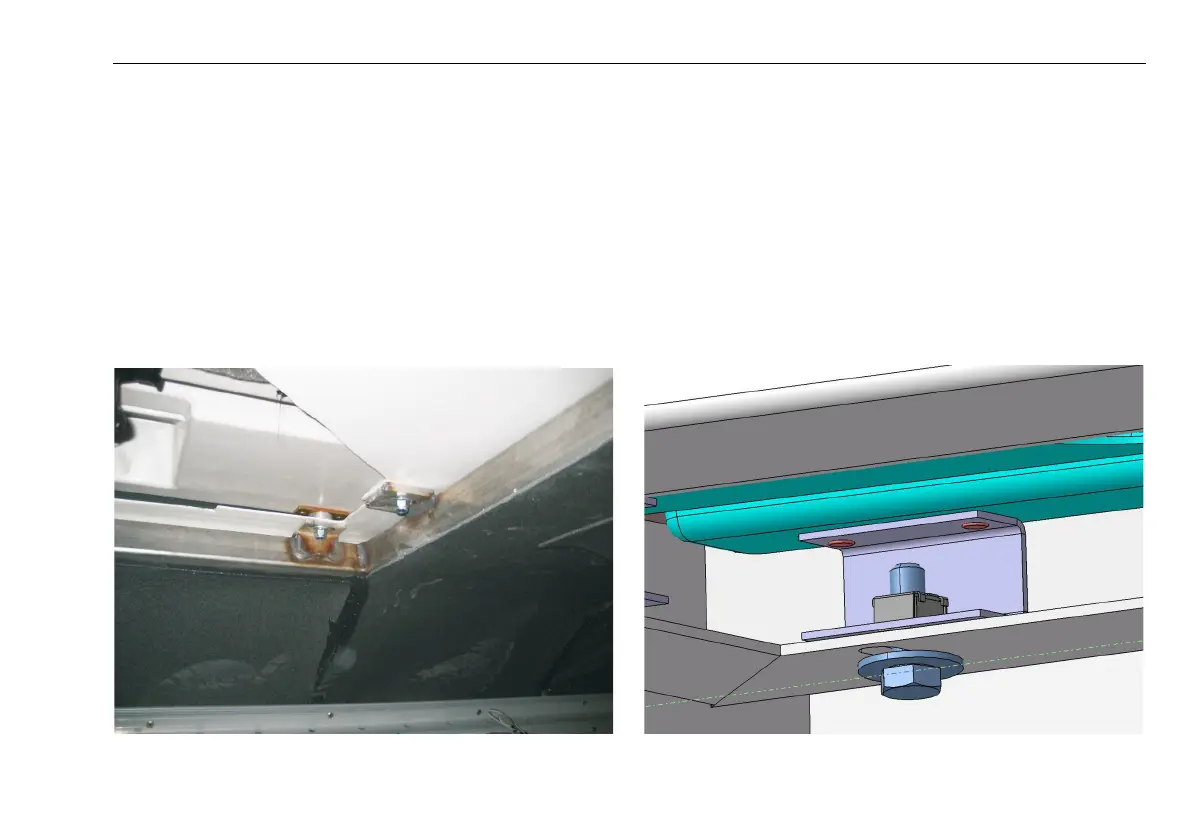

Figure 15: Fastening if using Armaflex
Bild 16: Fastening if using mounting frame
