Installation instructions REVO-E Connecting the air-conditioning unit
35
NOTE:
Connection of the 400V AC cable to the compressor according to the
workshop manual cha. 6.5.

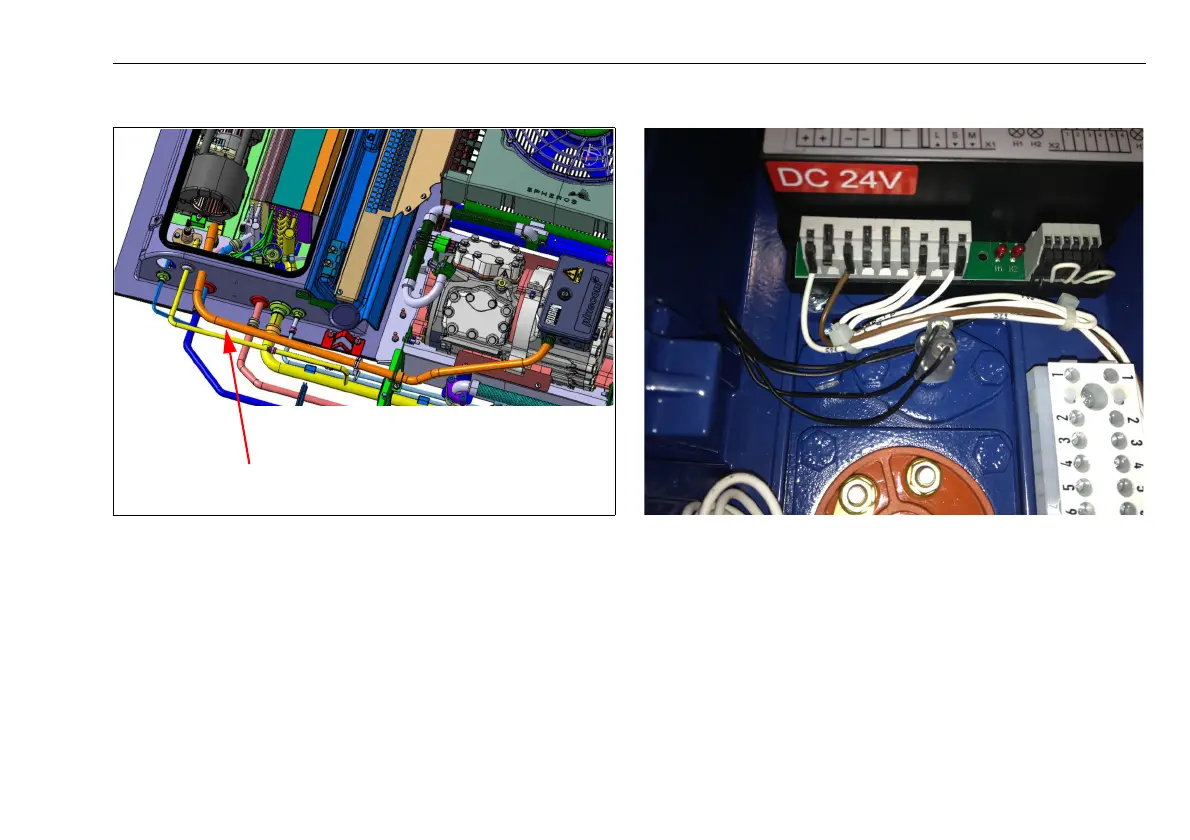

Figure 22:
Empty conduit for 400V AC cable
Figure 23: Junction box REVO-E without frequency converter
(compact)
