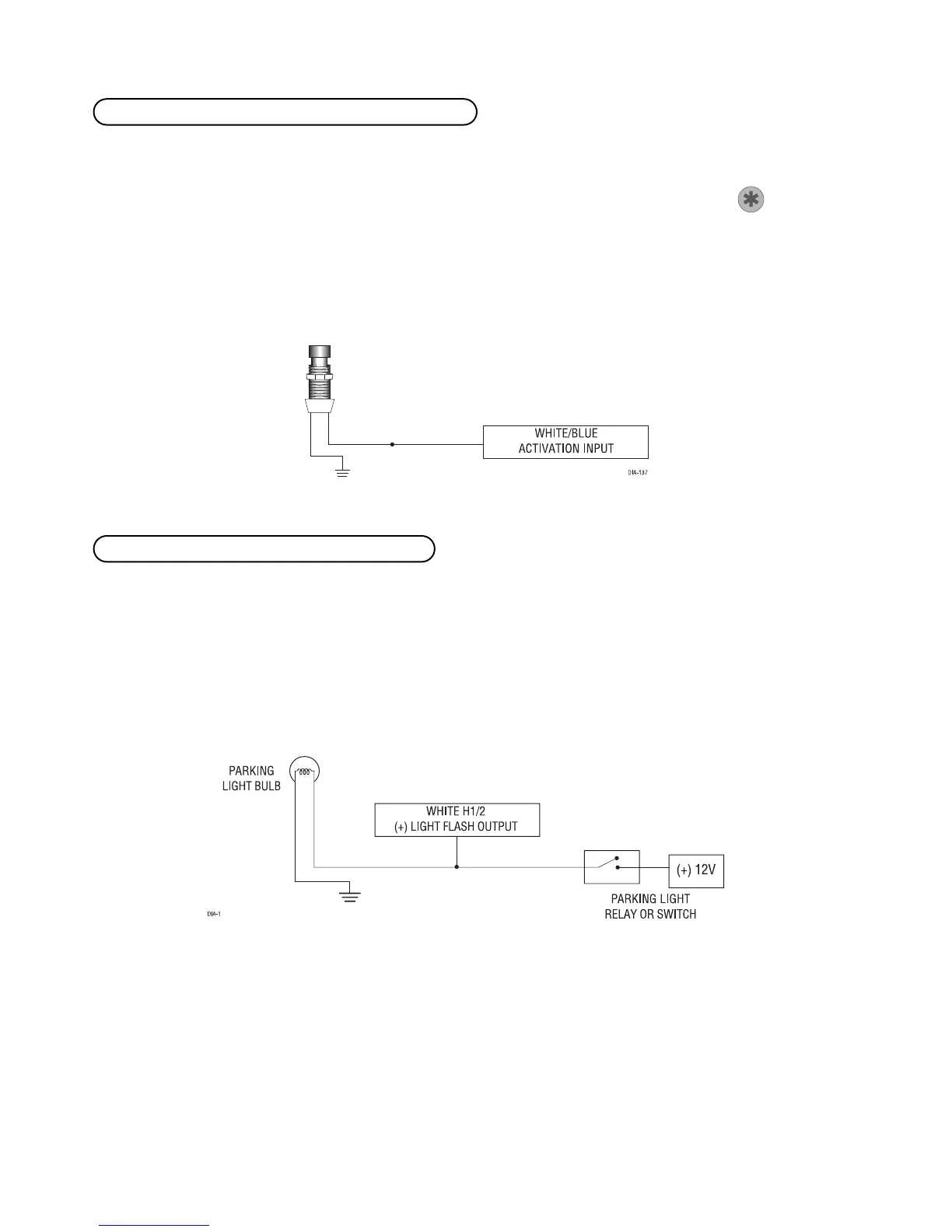

This input comes from the factory set to 2 activation pulses. This means that it is necessary to have 2 consecu-
tive ground pulses on the white/blue wire for the remote start to activate or to deactivate. The same holds true
for the remote control activation when set to a two pulse setting it is necessary to press the button twice
for the remote start to activate or deactivate.
NNOOTTEE::
When the activation pulse count can be programmed to 1, 2, or 3 pulses when changed it
will affect both activation inputs; the White/Blue wire and the remote control activation.
As shipped, this wire should be connected to the (+) parking light wire. If the light flash polarity jumper is moved
to the opposite position (see
Internal Programming Jumpers
section), this wire supplies a (-)200 mA output. This
is available for driving (-) light control wires in Toyota, Lexus, BMW, some Mitsubishi, some Mazda, and various
other models.
((++)) PPoossiittiivvee LLiigghhtt FFllaasshh OOuuttppuutt
HH11//1111 WWHHIITTEE ((++//--)) sseelleeccttaabbllee lliigghhtt ffllaasshh oouuttppuutt
HH11//1100 WWHHIITTEE//BBLLUUEE ((--)) rreemmoottee ssttaarrtt aaccttiivvaattiioonn iinnppuutt
