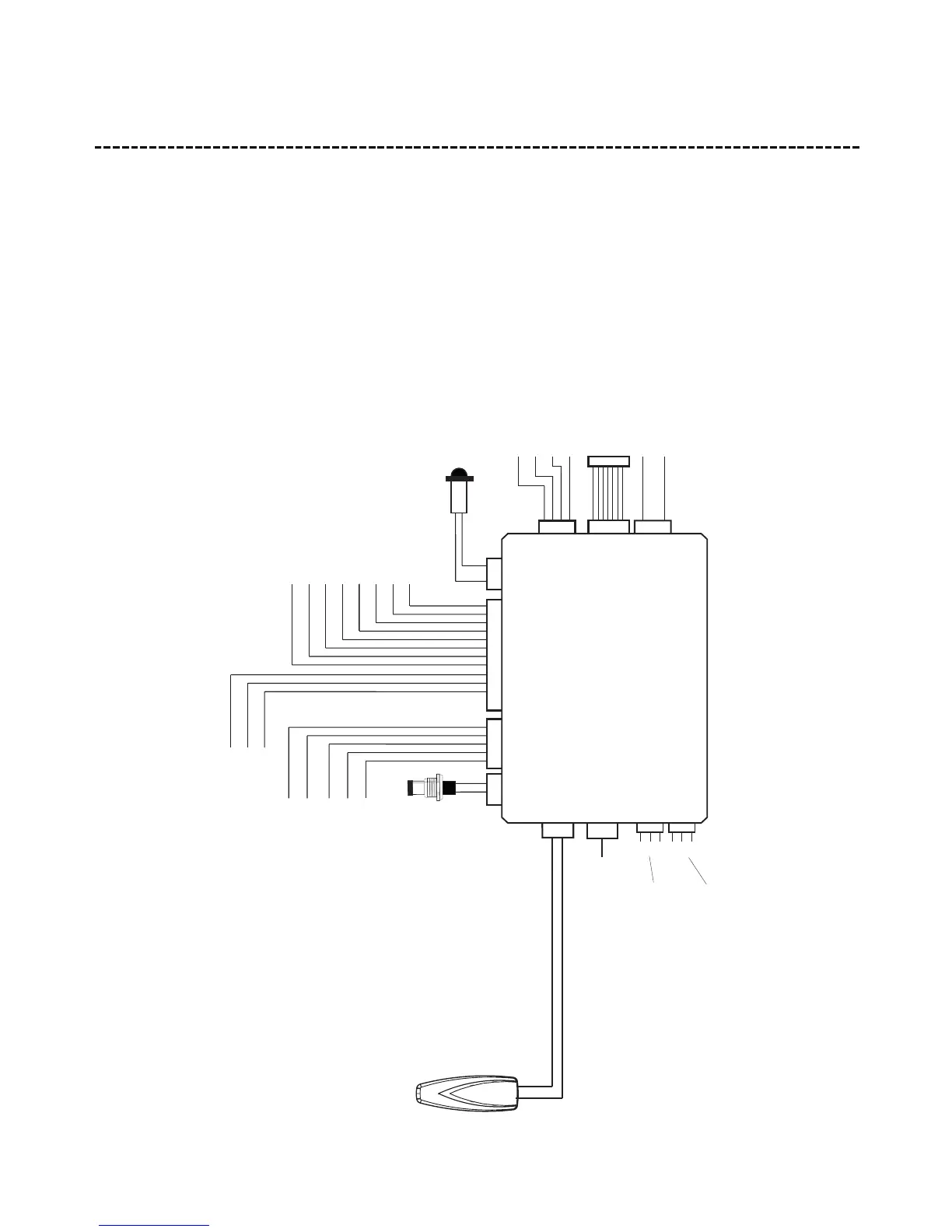

Valet 562T - Wiring Quick Reference Guide

4422
© 2005 Directed Electronics—all rights reserved
wwiirriinngg qquuiicckk rreeffeerreennccee gguuiiddee
BLACK ground input VIOLET not used BLUE (-) 2nd unlock output GREEN not used BLACK/WHITE (-) 200mA domelight output
ORANGE ground when armed output
WHITE (+/-) parking light output
WHITE/BLUE (-) activation input
GRAY (-) hoodpin shutdown input
BROWN (+) brake shutdown input
BLUE/WHITE (-) 200mA 2nd status/defogger
Antenna/Receiver
LIGHT GREEN/BLACK (-) factory alarm disarm GRAY/BLACK (-) wait to start input GREEN/WHITE (-) factory alarm rearm VIOLET/BLACK (-) 200mA channel 4 output Relay Satellite ribbon harness (seerelay satellite diagram) GREEN (-) lock (+) unlock BLUE (-) unlock (+) lock
LED
BROWN (-) horn honk output RED 12V constant input RED/WHITE (-) 200mA channel 2 output
Valet/Program button
VIOLET/WHITE tachometer input
BLACK/WHITE neutral safety input
ESP2 data port
562
Jumper
tachometer
threshold
Jumper
light flash
polarity
+-LoHi
H1H3
H2
DOOR
LOCK
