© 2005 Directed Electronics—all rights reserved
4433

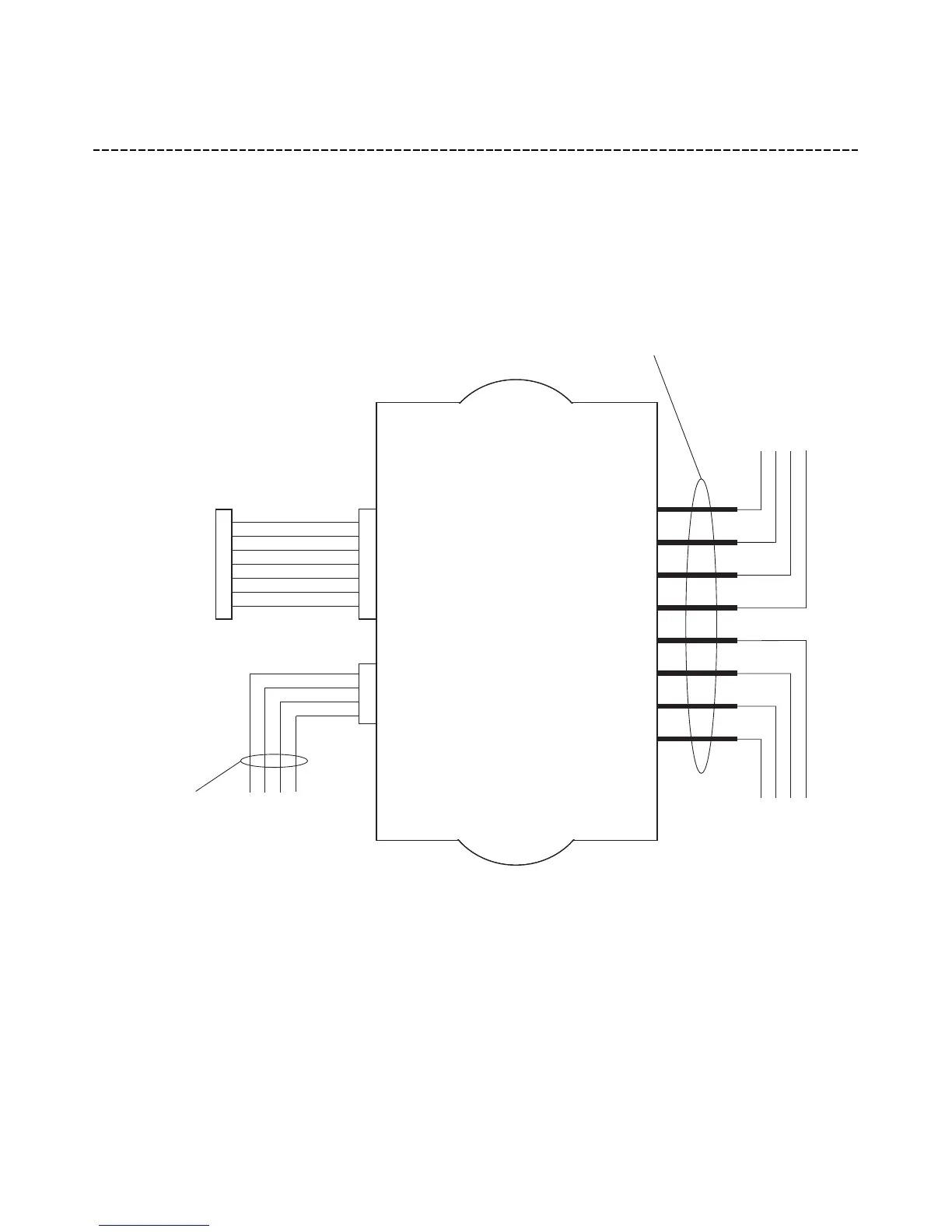

rreellaayy ssaatteelllliittee wwiirriinngg qquuiicckk rreeffeerreennccee gguuiiddee
PINK (-) 200mA 3rd ignition output
VIOLET (-) 200mA starter output
ORANGE (-) 200mA 2nd accessory output
BLUE (-) status output
Relay Satellite
ribbon harness
RED 12V constant input
PINK ignition output
RED/WHITE 12V constant input
PINK/WHITE 2nd ignition output
ORANGE accessory output
RED 12V constant input
GREEN key side starter wire
PURPLE starter side starter wire
These signals are from the
Relay Satellite ribbon harness
and are provided to drive
additional optional relays.
Heavy guage wires
