Rainger Linear 23
OVERVIEW
Swing Around Cart - Furrow Guidance
Closed Delivery Hose Drag / Open Delivery Ditch Feed
The water supply pipeline or ditch is typically located near the center of the field, the four wheel cart will be next
to the water supply pipeline or ditch. The hose drag linear cart may have a side inlet or center inlet.
The central pulse tower box is always on the opposite end of the system from the four wheel cart. Its location
varies depending on the total number of spans.
• When there are 5 spans or less, the central pulse tower box is located on the first tower from the end.
• When there are 6 spans or more, the central pulse tower box is located on the second tower from the end.
Linear intermediate tower boxes are installed on both ends of the free-standing span.
There is a collector ring on the span directly over the cart and only one end tower box located on the other end
of the system. All other tower boxes are intermediate tower boxes. See Figure 23-1.
5
4
7
6
9
5
4
4
3
6
9
8
9
11
1
2
3
3
3
3

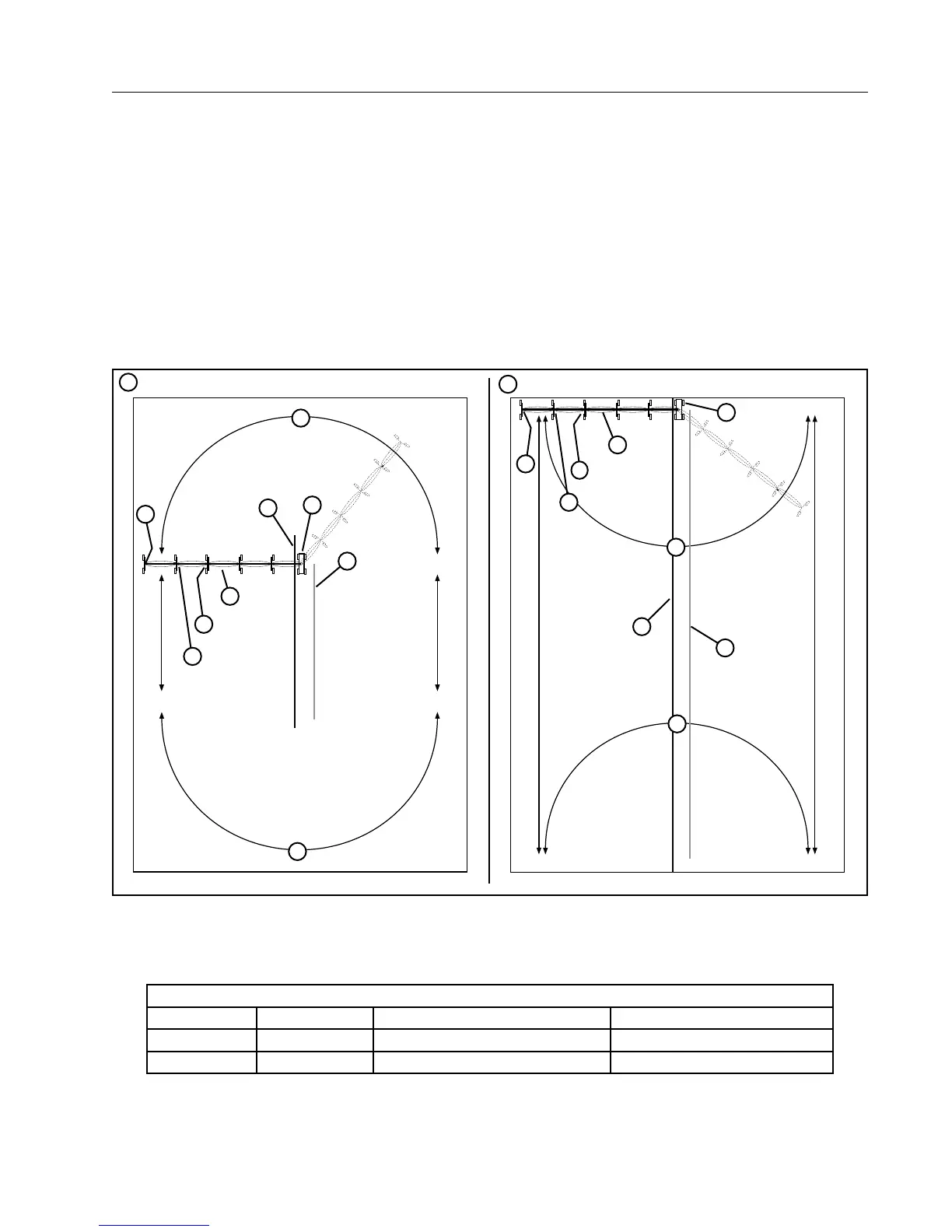

Figure 23-1 1. Pivot Out - Furrow Guidance
2. Pivot In - Furrow Guidance
3. Swings Dry Only
4. Water Supply
5. 4-Wheel Cart
6. Free Standing Span
7. End Tower Box
8. Central Pulse Tower Box 6 or more spans
9. Central Pulse Tower Box 6 or less spans
10. Furrow Guidance
11. Antenna
Center Drive Motor RPM
Motor Type Cart Motor RPM Intermediate Drive Unit Motor RPM Last Regular Drive Unit Motor RPM
Standard Speed 43 43 34
High Speed 68 68 56
