32 Rainger Linear
OVERVIEW
Field Stops
Drive Unit Mounted End of Field Stop/Auto Reverse (Option)
The drive unit mounted end of field stop is used with
both the end of field stop and end of field auto re-
verse option. See Figure 32-1.
This mechanism will stop the system when the actua-
tor arm contacts the barricade.
If the auto reverse option is installed, the operator
can choose to either have the system stop or auto-
matically reverse its direction of travel and continue
to run.
!
CAUTION
• NEVER USE THE SAFETY OVERRIDE BUT-
TON TO WALK THE MACHINE OFF OF THE
BARRICADE. STRUCTURAL DAMAGE MAY
RESULT.
• SOIL MAY BUILD UP IN THE WHEEL TRACK
RESULTING IN A RAMP EFFECT ALLOW-
ING THE ACTUATOR ARM TO GO OVER THE
BARRICADES. REGULARLY MAINTAIN THE
WHEEL TRACK TO INSURE THE ACTUATOR
ARM ALWAYS CONTACTS THE BARRICADE.
Auto Reverse/Auto Stop Box (Option)
The Auto Reverse/Auto Stop box provides the ma-
chine the ability to Auto Reverse and Auto Stop.
The Auto Reverse/Auto Stop Box is mounted on the
drive unit mounted end of field stop and is only used
with the Auto Reverse/Auto Stop option.
1
2

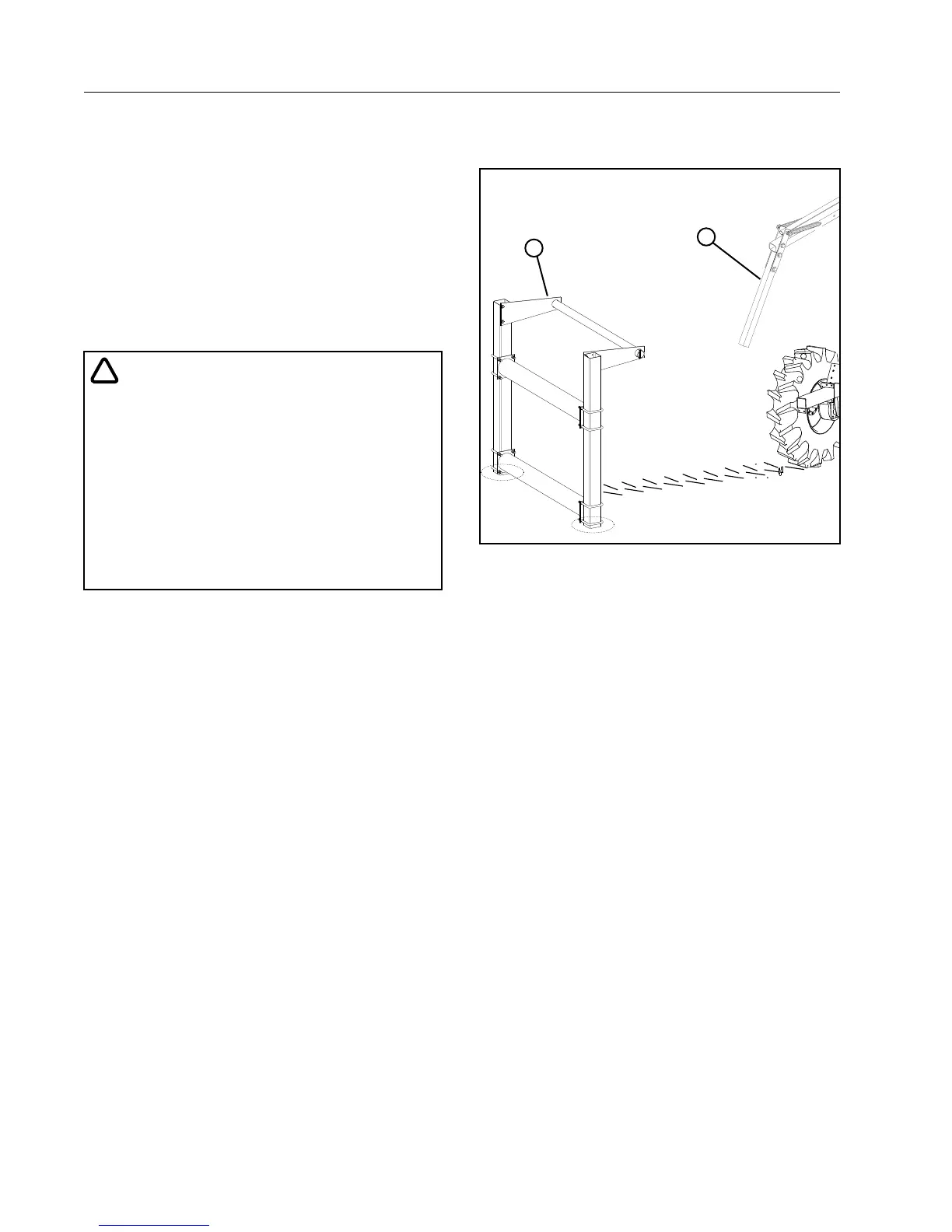

Figure 32-1 1. Actuator arm
2. Barricade
