Rainger Linear 63
OPERATION
Open Delivery
Start Up - Engine Generator Pump Applications (continued)
11. Slowly fill the system with water. Alternate be-
tween slowly opening the riser valve and increas-
ing the engine RPM so that the pump does not
loose prime.
12. Refer to the appropriate Control Panel Owner’s
Manual for control panel operating procedures.
13. When the system is running and while holding
the safety button in, move the remote shutdown
toggle switch to the enabled position. See Figure
63-1.
With the remote shutdown toggle switch in this
position the engine will stop running if the system
shuts down.
14. Check the voltmeter reading again while the gen-
erator is under load to verify that the generator is
producing the correct Nominal Supply Voltage for
this machine. See Figure 63-2.
!
CAUTION
• DO NOT OPERATE THE MACHINE IF THE
VOLT METER READS BELOW THE MINIMUM
ALLOWED VOLTAGE OR ABOVE THE MAXI-
MUM ALLOWED VOLTAGE. SEE FIGURE 63-2.
• OPERATING THE MACHINE OUTSIDE THESE
LIMITS COULD CAUSE DAMAGE TO THE
DRIVE MOTORS AND OTHER ELECTRICAL
COMPONENTS.
• CORRECT THE LOW VOLTAGE PROBLEM
BEFORE RESUMING OPERATION.
3
1
2
4

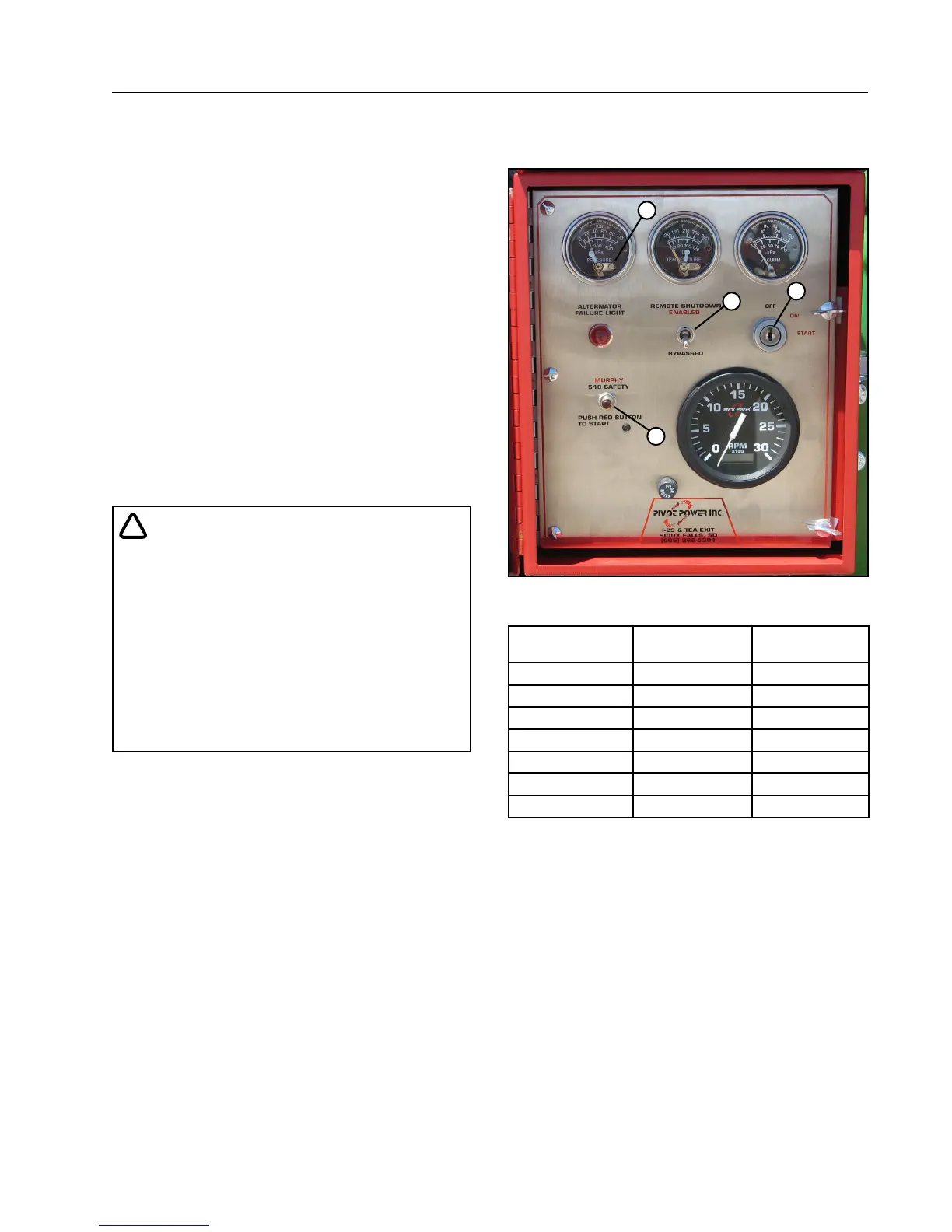

Figure 63-1 1. Safety Button
2. Toggle Switch
3. Engine Start Switch
4. Water Pressure Gauge Reset
Nominal
Supply Voltage
Maximum
Allowed Voltage
Minimum
Allowed Voltage
480 VAC @ 60Hz 505 VAC 440 VAC
415 VAC @ 50Hz 420 VAC 375 VAC
400 VAC @ 50Hz 420 VAC 365 VAC
380 VAC @ 50Hz 420 VAC 355 VAC
230 VAC @ 60Hz 253 VAC 220 VAC
120 VAC @ 60Hz 132 VAC 105 VAC
110 VAC @ 50Hz 121 VAC 95 VAC
Figure 63-2
