The fireplace opening must be within the following dimensions:
(a)
The total height of the closure plate is 660mm and will accommodate a
maximum opening height of 650mm (This allows a 10mm overhang). Heights above
620mm (Inclusive of sealing tape) will leave the sealing tape and closure plate visible
above the appliance.
(b)
Any opening visible below the appliance may be closed in.
4.11.4 Wall mounting to a conventional or pre-cast flue.
The minimum height figures shown in the below table reflect that an extra 50mm
(minimum) is required above the finished floor level when wall mounting (See figure
1). When the additional 50mm (minimum) is adhered to them the appliance can be
fitted without a hearth.
The wall opening must be within the following dimensions:
*
The total height of the closure plate is 660mm and will accommodate a maximum
opening height of 650mm (This allows a 10mm overhang). Heights above 620mm
(Inclusive of sealing tape) will leave the sealing tape
and closure plate visible above the appliance .
Wall mounting to a conventional fireplace.
Any opening visible below the appliance may be
closed in but the depth of the catchment space within
the wall opening must be as shown in figure 2.
Wall mounting to a pre cast flue.
Important: If the base of the opening is above the
finished floor level it must be a maximum 350mm
from the finished floor level. This will ensure that the
air relief hole in the closure plate is not covered or
reduced.
4.11.5 Metal flue box
The appliance can be installed to a metal flue box
conforming to BS715 (For gas fires to BS5258: Part
5) or having a minimum internal depth of 165mm.
Width Height
Max. 440mm
Min. 305mm
Max. 610mm
*
Min. 575mm

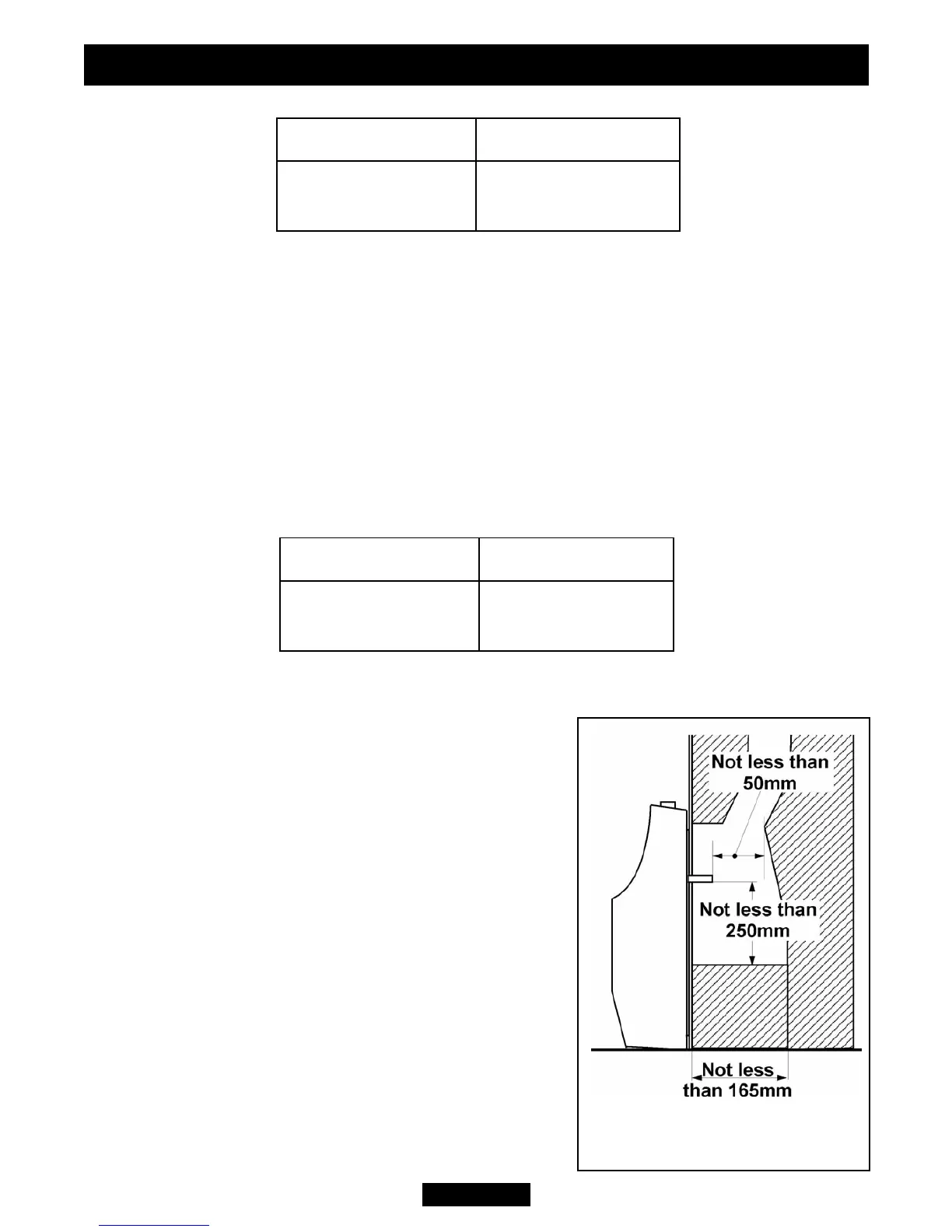

Figure 2. Conventional
Fireplace catchment space
INSTALLER GUIDE
Width Height
Max. 440mm
Min. 305mm
Max. 610mm
(a)
Min. 525mm
(b)
