5.6.2 Wall mounting
(See figure 8).
The closure plate must be fitted and
sealed to the hearth and fireplace
opening using a suitable heat resistant
material. If necessary cut the closure
plate but make sure that it overlaps the
fireplace opening sufficiently to allow
satisfactory sealing. Make sure that the
square air relief opening is fully within
the fireplace opening.
The bottom of the appliance must be at
least 50mm above any carpet or other
floor covering. To achieve this, the
bottom of the flue spigot opening must
be at least the minimum dimension
shown in figure 8.
5.6.3 Check the flue pull with closure
plate fitted by applying a lighted match
or smoke match to the flue spigot
opening in the closure plate
and observe the smoke. If
there is a definite flow
continue with the installation.
If not check the fitting of the
closure plate. The fireplace
flue pull check described in
section 5.2 should have
confirmed that the fireplace
itself is satisfactory.
INSTALLER GUIDE

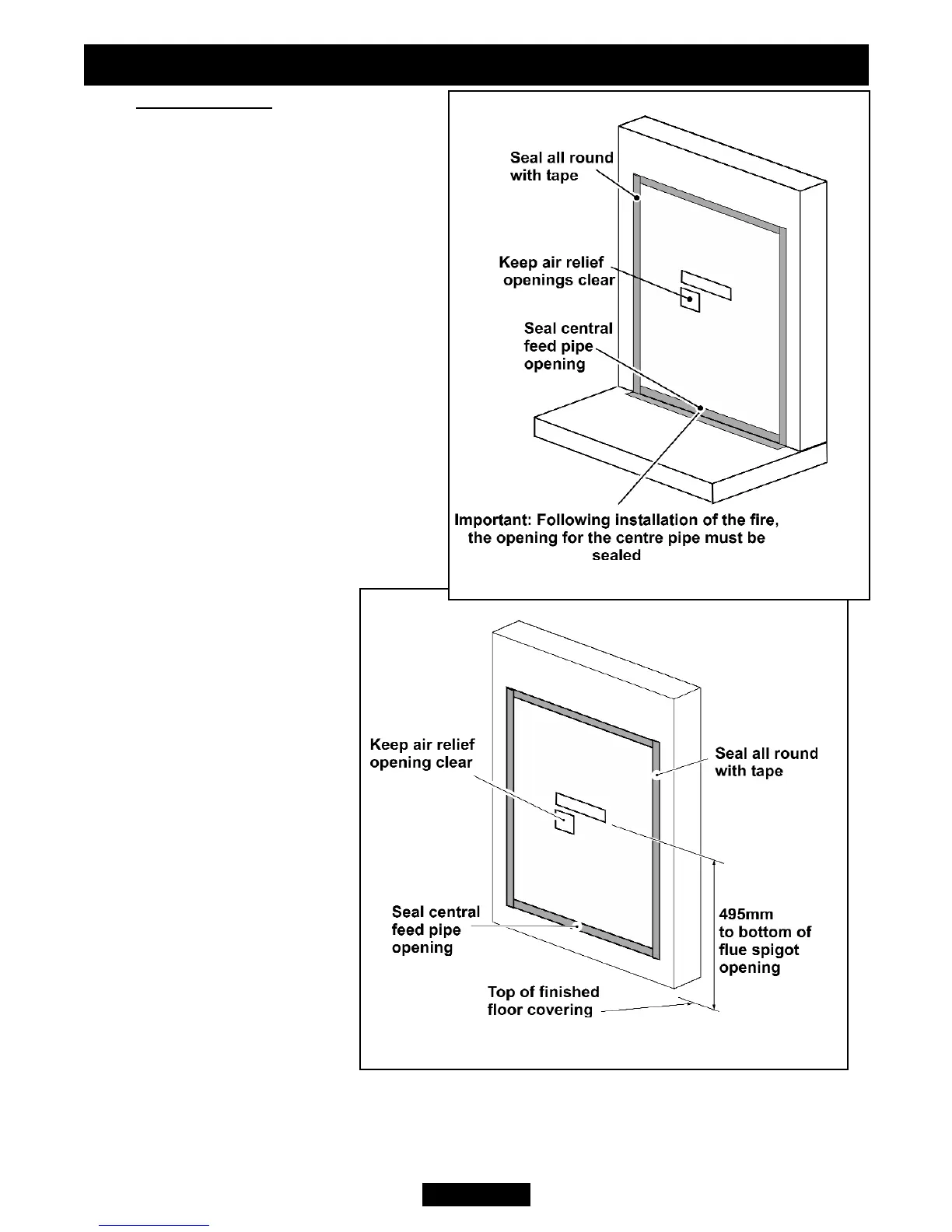

Figure 8. Closure plate for wall mounting.
Figure 7. Closure plate for hearth mounting.
© Baxi Heating U.K. Limited 2008.
Page 17
