Valor 541 - Page 31

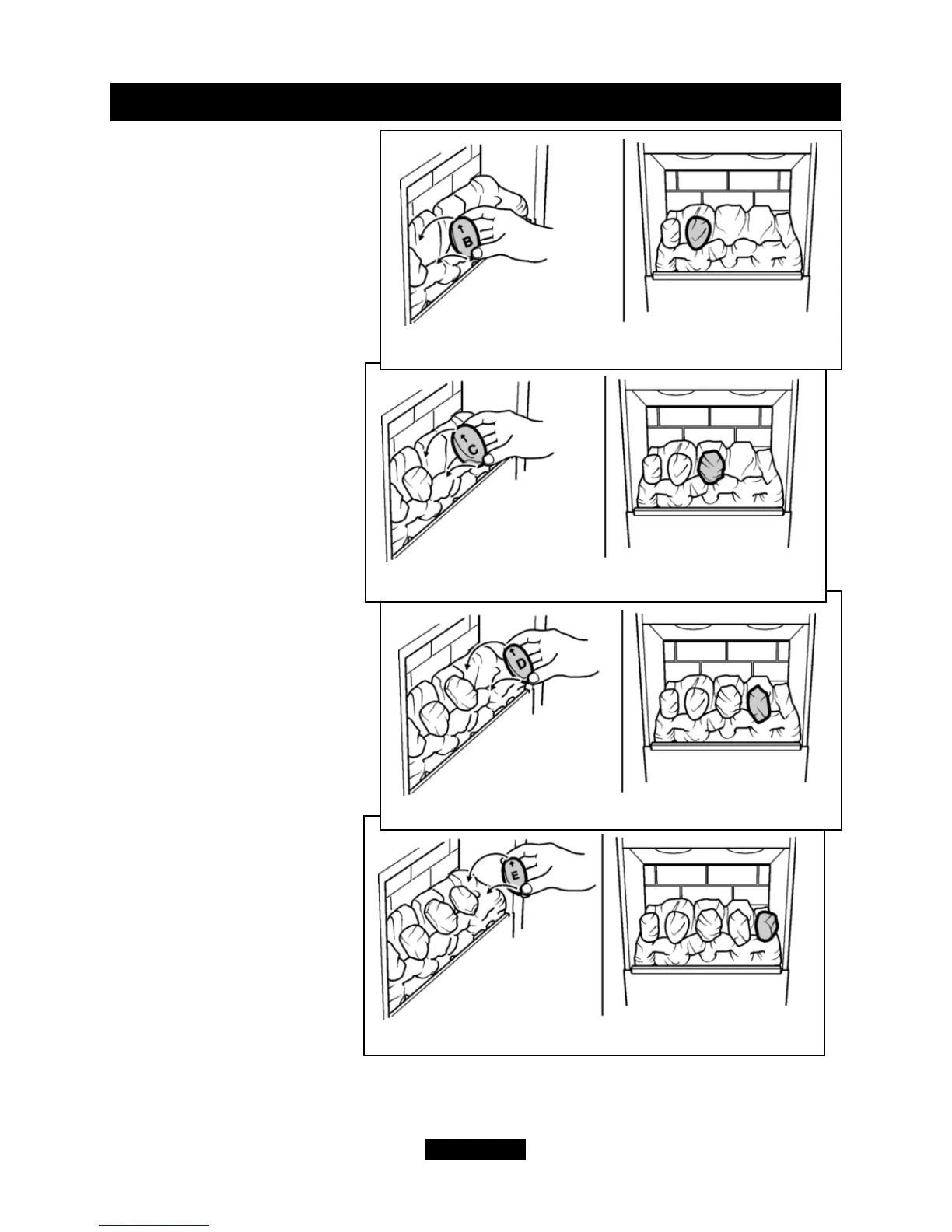

3. Hold coal ‘B’ upright with the
arrow pointing to the top.
Locate coal ‘B’ as shown in
figure 22.
4. Hold coal ‘C’ upright with
the arrow pointing to the top.
Locate coal ‘C’ as shown in
figure 23.
5. Hold coal ‘D’ upright with the
arrow pointing to the top.
Locate coal ‘D’ as shown in
figure 24.
6. Hold coal ‘E’ upright with
the arrow pointing to the top.
Locate coal ‘E’ as shown in
figure 25.
Page 31
© GDC Group Ltd. 2014
INSTALLER GUIDE
Figure 25.
Figure 24.
Figure 23.
Figure 22.
