14. FASCIA FITTING
If you have not done so already complete the information on the last pages of
this guide.
14.1 Fitting the Dream/Masquerade/Excelsior fascia.
- Remove any protective film from the fascia.
- Locate the two lugs at the top of the fascia in the slots in the convection box hood.
Swing the bottom of the fascia sides back against the convection box and lower the
fascia so that the lugs are fully seated in the slots in the convection box hood
(See figure 34).
- Fit the two screws to secure the bottom of the fascia sides to the convection box
side brackets.
- Locate the fire front casting between the fascia sides.
- Fit the "ash pan" cover below the front casting.
Page 34
© GDC Group Ltd. 2014
INSTALLER GUIDE

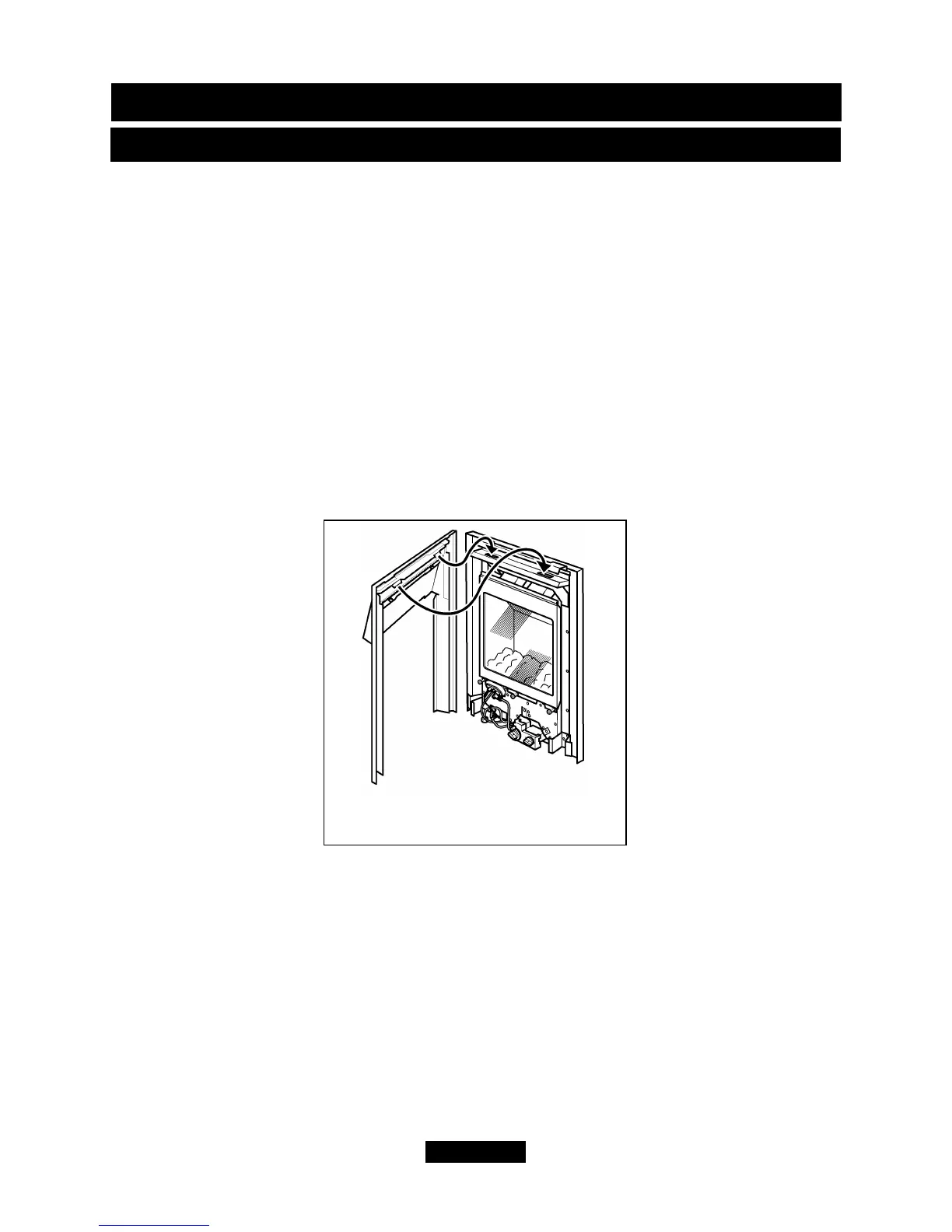

Figure 34. Fascia fitting (Fascia
may differ from that shown)
