Valor 541 - Page 41

- Secure the loom to the battery box bracket with the cable tie supplied with the new
loom - check that there is sufficient free length of loom wire to allow the battery holder
to be removed from & replaced in the battery box before securing the cable tie.
- The motor lead connectors are two different sizes. They will only fit to the correct
motor terminals.
Page 41
© GDC Group Ltd. 2014
INSTALLER GUIDE

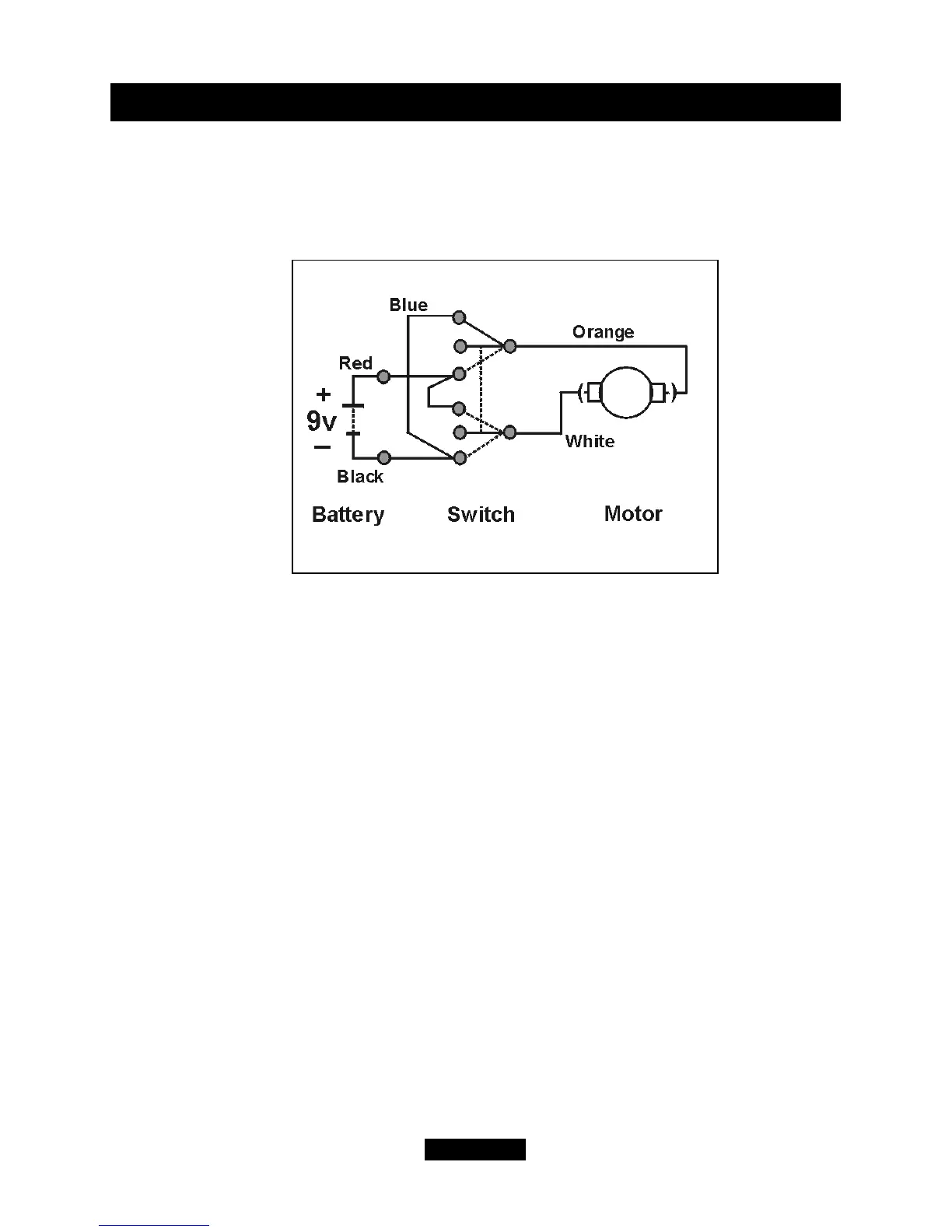

Figure 55. Wiring diagram.
