INSTALLER GUIDE

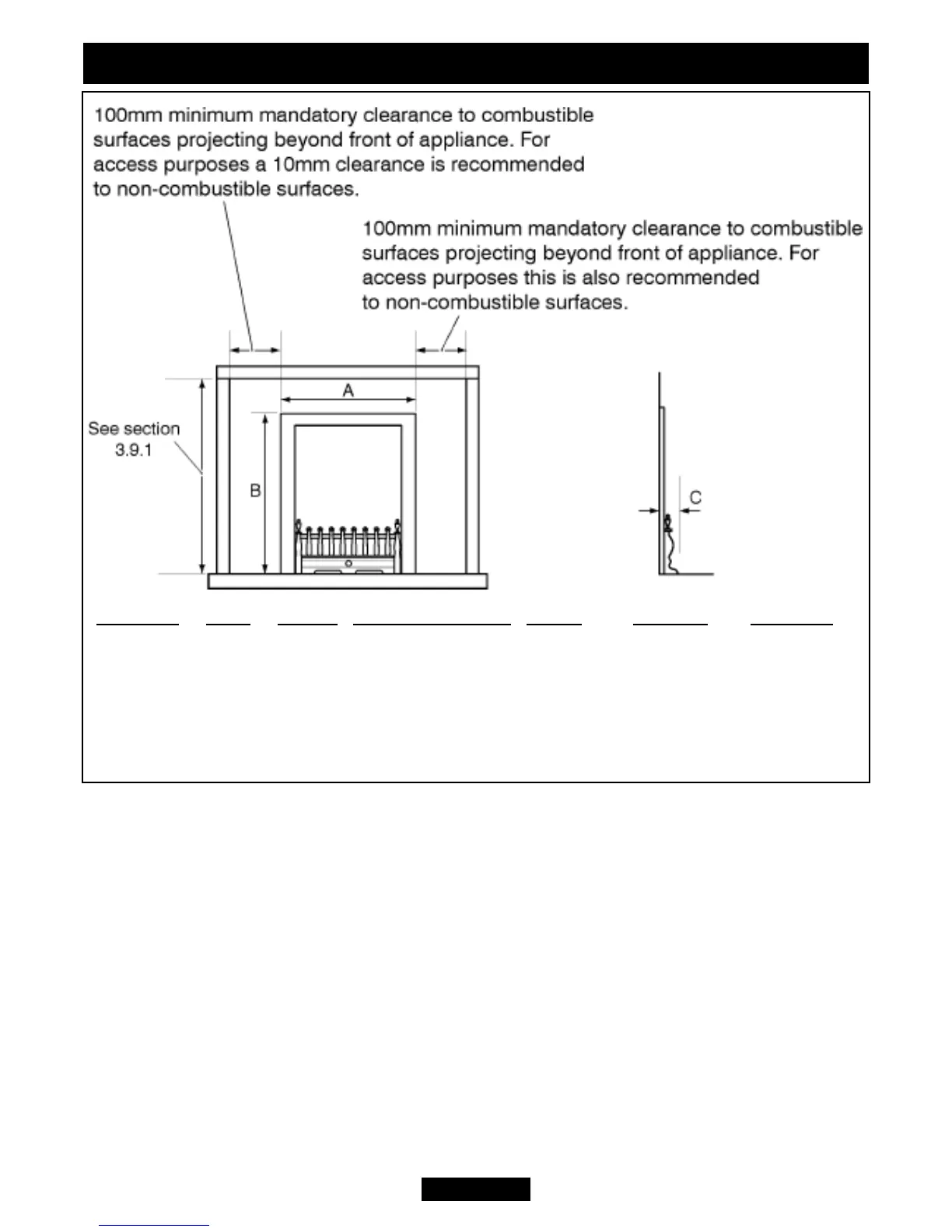

Figure 3. Appliance dimensions (Fascia may differ from that shown and is subject to
manufacturing tolerances).
Dimension Alpha Elegant Dream/Masq./Excel. Eternal Decadent Obsession
A 492mm 492mm 518mm 514mm 529mm 530mm
B 598mm 598mm 636mm 611mm 630mm 621mm
C 84mm 84mm 94mm 76mm 120mm 96mm
