Valor BR622 Installer's Guide

10.2.2 “Visage” Surround
Place the front surround against the
fireplace front surface so that the two
retaining plates at the back of the
surround are directly above the two
upper retaining brackets at the top of
the convection box. Lower the surround
unit making sure that the retaining
plates locate fully over the brackets on
the convection box (See figure 30).
Swing the bottom control linking bar
towards the centre of the fire to clear
the right side of the surround. Slide the
surround unit sideways, if necessary, to
align the bottom fixing holes with those
in the convection box. Fix the bottom of
the surround unit to the convection box
with two screws (See figure 31).
10.2.3 “Icon “ Surround
Place the front surround against the
fireplace front surface so that the two
retaining plates at the back of the
surround are directly above the two
upper retaining brackets at the top of
the convection box. Lower the surround
unit making sure that the ears on the
surround retaining plates locate fully
over the sides of the convection box
brackets. (See figure 32).
Swing the bottom control linking bar
towards the centre of the fire to clear
the right side of the surround. Fix the
bottom of the surround unit to the
convection box with two screws
(See figure 33 ).
Page 17
INSTALLER GUIDE

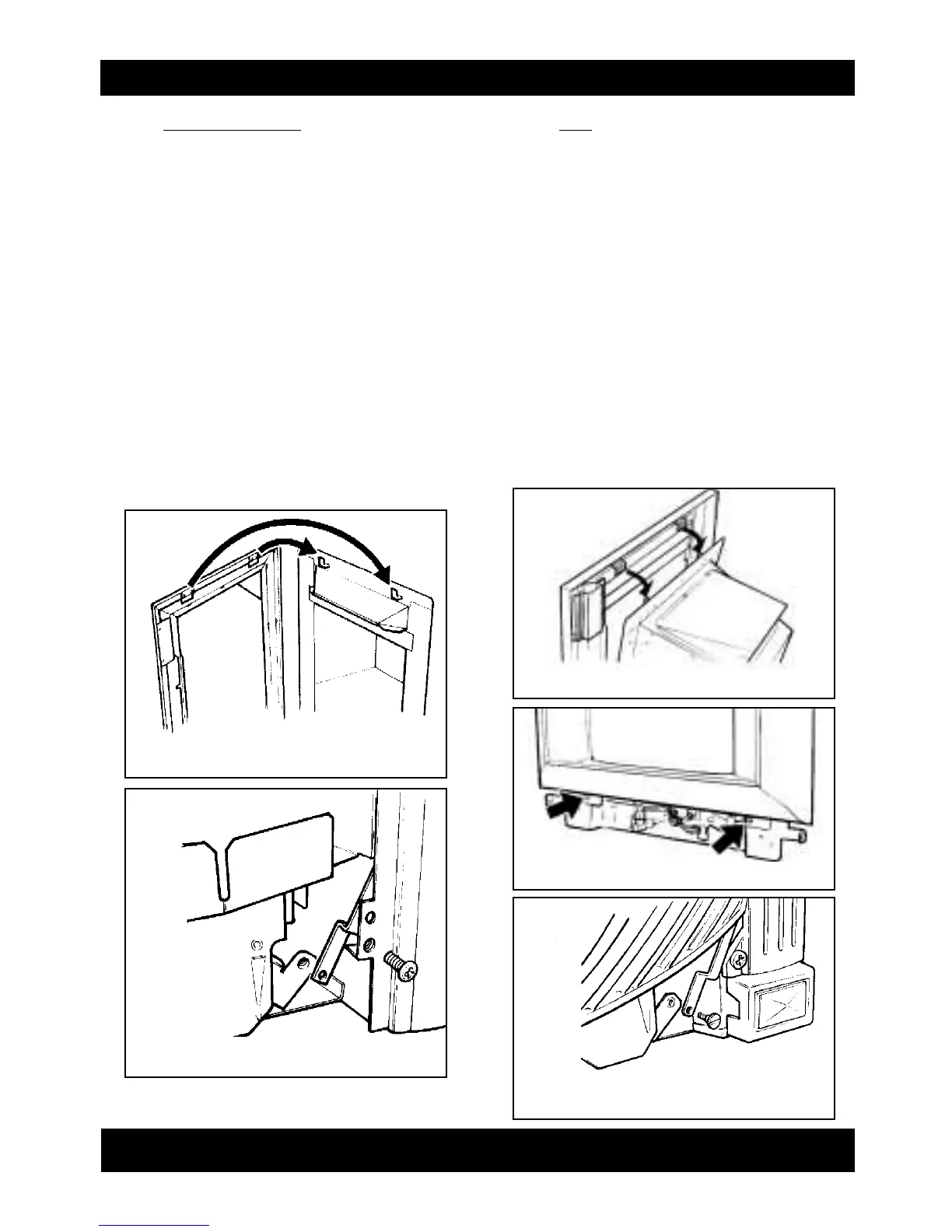

figure 30 “Visage” Front surround top location
figure 31 “Visage” Front surround bottom location
figure 32 “Icon” Front surround top location
figure 33 ”Icon” Front surround bottom location
figure 34 Control bar & pivot bracket
(Shown with “Adorn” Front)
