10.3 All Surrounds
Align the hole near the bottom of the
control linking bar with that in the
control pivot bracket. Join them with the
knurled shouldered screw (See figure
34). Make sure that the isolating valve is
closed. Slide the control button fully
from top to bottom and back to make
sure that the slide and pivot
mechanisms move smoothly. Note that
some resistance should be felt when the
slide button reaches the “burner fully
on” position.
11.1 Place the ceramic base coal in the
burner compartment. The bottom rear
face of the coal should rest on the
angled ledge at the back of the burner
compartment. The bottom front
recessed edge of the coal base should
locate against the step in the burner
plaques (See figure 35).
(Installer - Note that the small round
holes in the burner plaques which will
be covered by the base coal are not gas
burner ports. They are simply a
consequence of the plaque
manufacturing process).
11.2 Place the ceramic front coal in position
in front of the base coal. Make sure that
the side legs of the front coal are fully
seated into the burner tray. There
will be a gap between the rear of the
front coal and the front of the base coal
(See figure 36).
11.3 Install the 11 loose coals as follows.
There are 2 small coals, 8 medium size
coals and 1 large coal. The large coal
has an arrow embossed in it.
Place all the loose coals so that they
are firmly seated in the valleys in the
coal base and front coal.
11.3.1 Place 4 of the medium size coals in the
valleys of the front coal (See figure 37).
Page 18
INSTALLER GUIDE
11.CERAMIC COALS
INSTALLATION

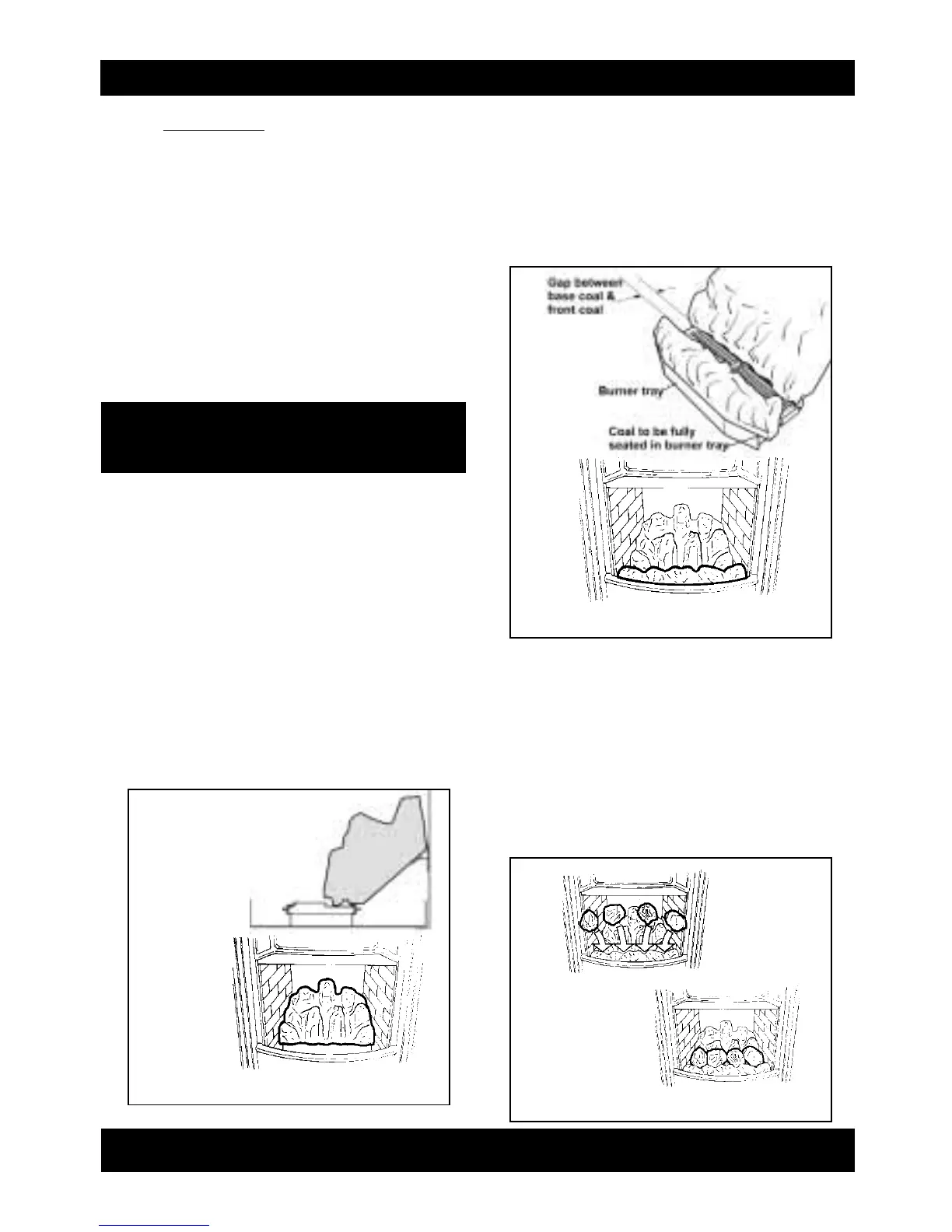

figure 35 Ceramic base installation
figure 36 Front coal location
figure 37 Front row of coals
