tube is pointed upwards at 45
O
to the
horizontal.
The installation is satisfactory if the
smoke is drawn into the appliance. If the
smoke is not drawn into the appliance,
leave the appliance alight at the
maximum setting for a further ten
minutes and then repeat the test. If the
smoke is still not drawn into the
appliance, inspect the sealing to the
fireplace surround. If the sealing is
satisfactory but the appliance is installed
with the flue restrictor (see section 6.8),
remove the restrictor, reseal the
appliance and retest. If smoke is still not
drawn into the appliance disconnect the
appliance and seek expert advice.
12.3.5 If the above test is satisfactory, open all
internal connecting doors, hatches, etc.
in the room. Keep all doors and windows
that open to the outside of the building
closed. Switch on any extractor fan
installed in the same room as the
appliance or a connecting room. Open all
doors and other openings between the
fan and the appliance. Recheck for
spillage as above. If the smoke is drawn
into the appliance, continue with the
installation. If the test is not satisfactory,
disconnect the appliance and advise
the customer of the cause of failure.
13.1 “Adorn” Front
Place the bottom front cover in position
below the front casting bridge.
13.2 “Visage” front
13.2.1 Fit the fire front casting to the front
surround. Locate the two screw heads at
the rear top corners of the casting
through the keyhole slots at the inner
sides of the surround. If the screw heads
do not project enough or project too far,
the screws can be adjusted. Lower the
casting so that it rests on the hearth (see
figure 44).
13.2.2 Place the bottom front cover casting in
position below the fire front casting.
13.3 “Icon” Front
Locate the top flanges of the bottom
front cover behind the bottom edge of
the front surround. Fix the sides of the
cover to the surround bottom corner
brackets with the two knurled screws
provided (See figure 45).
Page 21

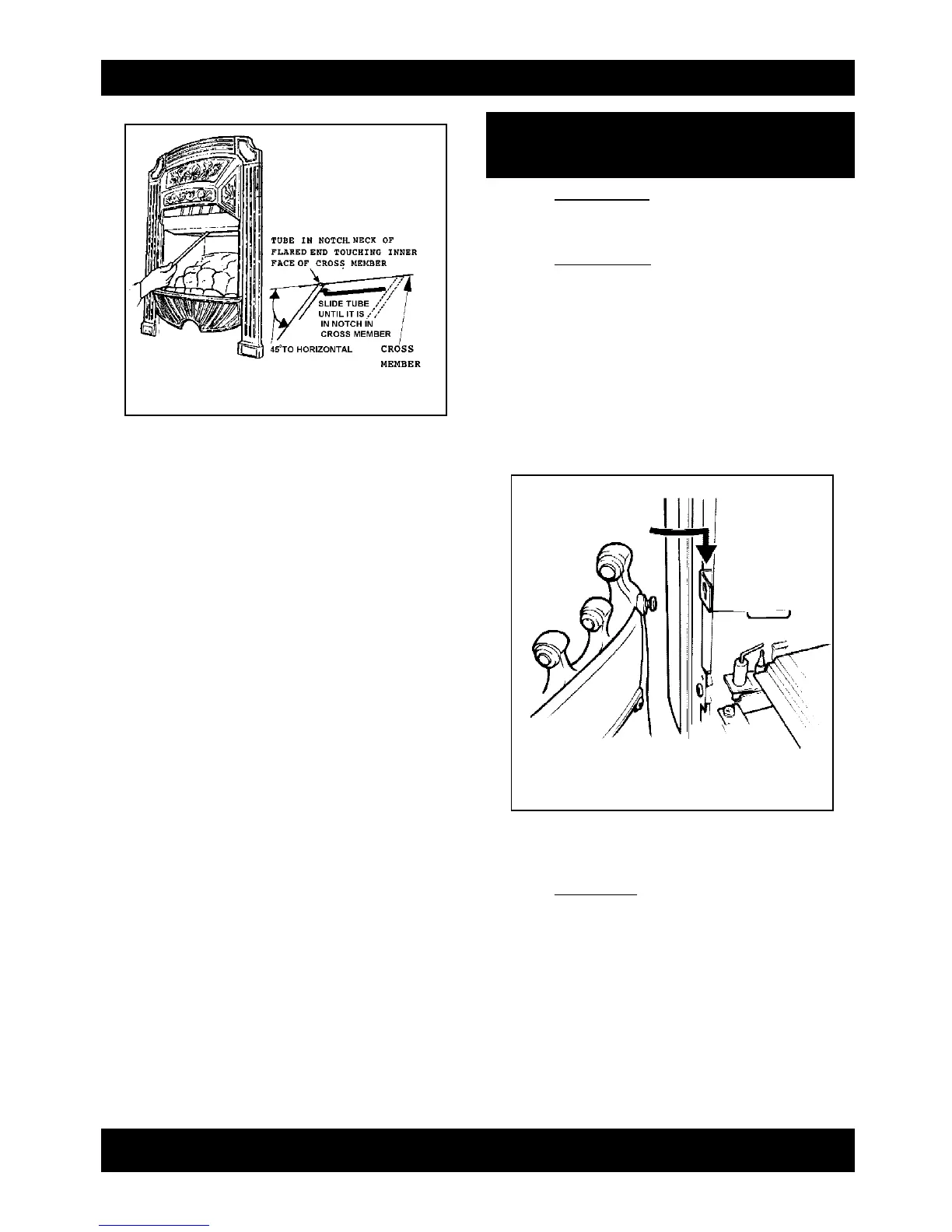

figure 43 Smoke match tube position
(shown with “Adorn” front)
figure 44 “Visage” Fire front casting location
13.SERVICING & PARTS
REPLACEMENT
INSTALLER GUIDE
