2 Place the ceramic front coal in position in
front of the base coal. Make sure that the
side legs of the front coal are fully seated into
the burner tray. There will be a gap between
the rear of the front coal and the front of the
base coal (See figure 5).
3 Install the 11 loose coals as follows. There
are 2 small coals, 8 medium size coals
and 1 large coal. The large coal has an
arrow embossed in it. Place all the loose
coals so that they are firmly seated in the
valleys in the coal base and front coal.
3.1 Place 4 of the medium size coals in the
valleys of the front coal (See figure 6).
3.2 Place a medium size coal behind and
approximately midway between the two
front loose coals which are to the left of
centre. Similarly place another medium size
coal behind and between the loose coals
Page 8
which are to the right of centre. Then, Place
the large loose coal between these two with
the arrow underneath and pointing to the
back. See figure 7.
3.3 Place the two small loose coals near the rear
corners of the burner compartment and
touching the sidewalls (See figure 8).
3.4 Place the remaining two medium size coals
at the back of the burner compartment and
between the two small loose coals (See
figure 9).
USERS INSTRUCTIONS

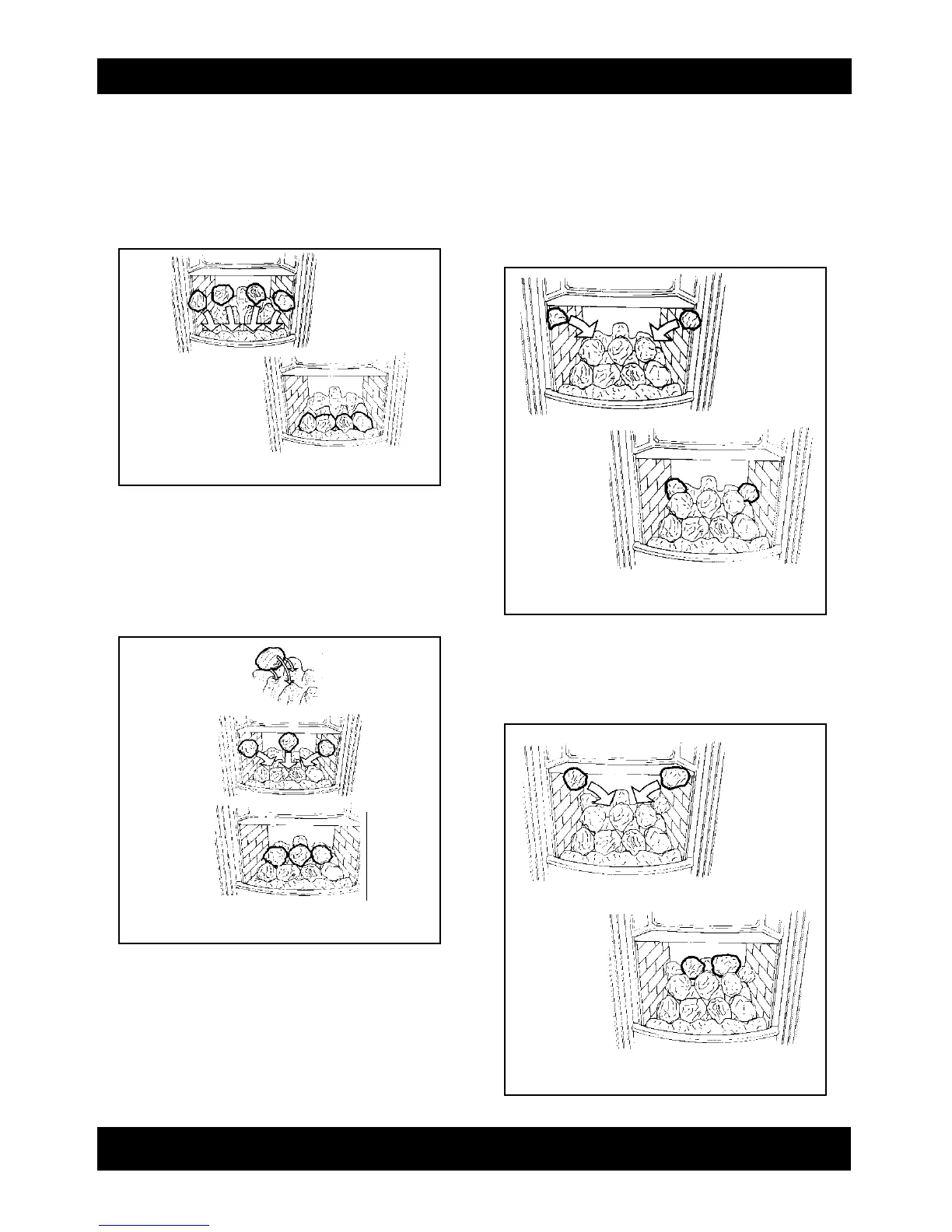

figure 6 Front row of coals
figure 7 Middle row of coals
figure 8 Rear corner coals
figure 9 Rear inner coals
