Step 5
Be sure Mushroom Washer lays flat against the Fender Panel as shown in Figure 27b.
Standoff on Mushroom Washer must be seated completely through slot.

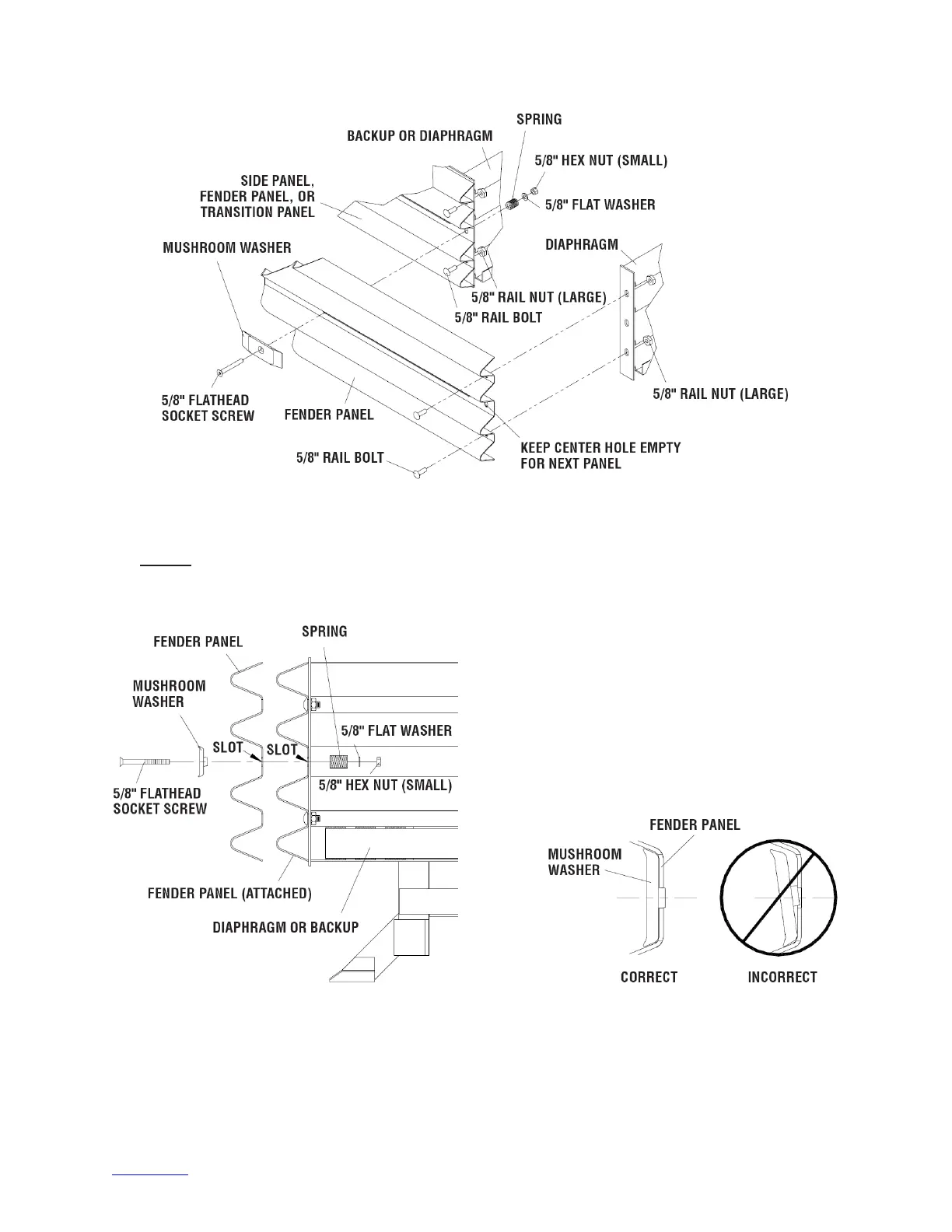

Figure 27
Fender Panel Assembly
Detail 27b
Mushroom Washer Orientation
Detail 27a
Mushroom Washer Attachment
