Valtir.com 30 Revision D November 2022
Step 6
Check Diaphragm spacing to ensure 36” [915 mm] between rear faces of consecutive
Diaphragms as shown in Figure 28 and Fender Panel Assembly drawing.
Step 7
Once proper spacing has been achieved, torque the Mushroom Washer Assembly (small
hex) nut until it reaches the end of the threads.
Assemble the remaining Diaphragms and Fender Panels following the same procedures.

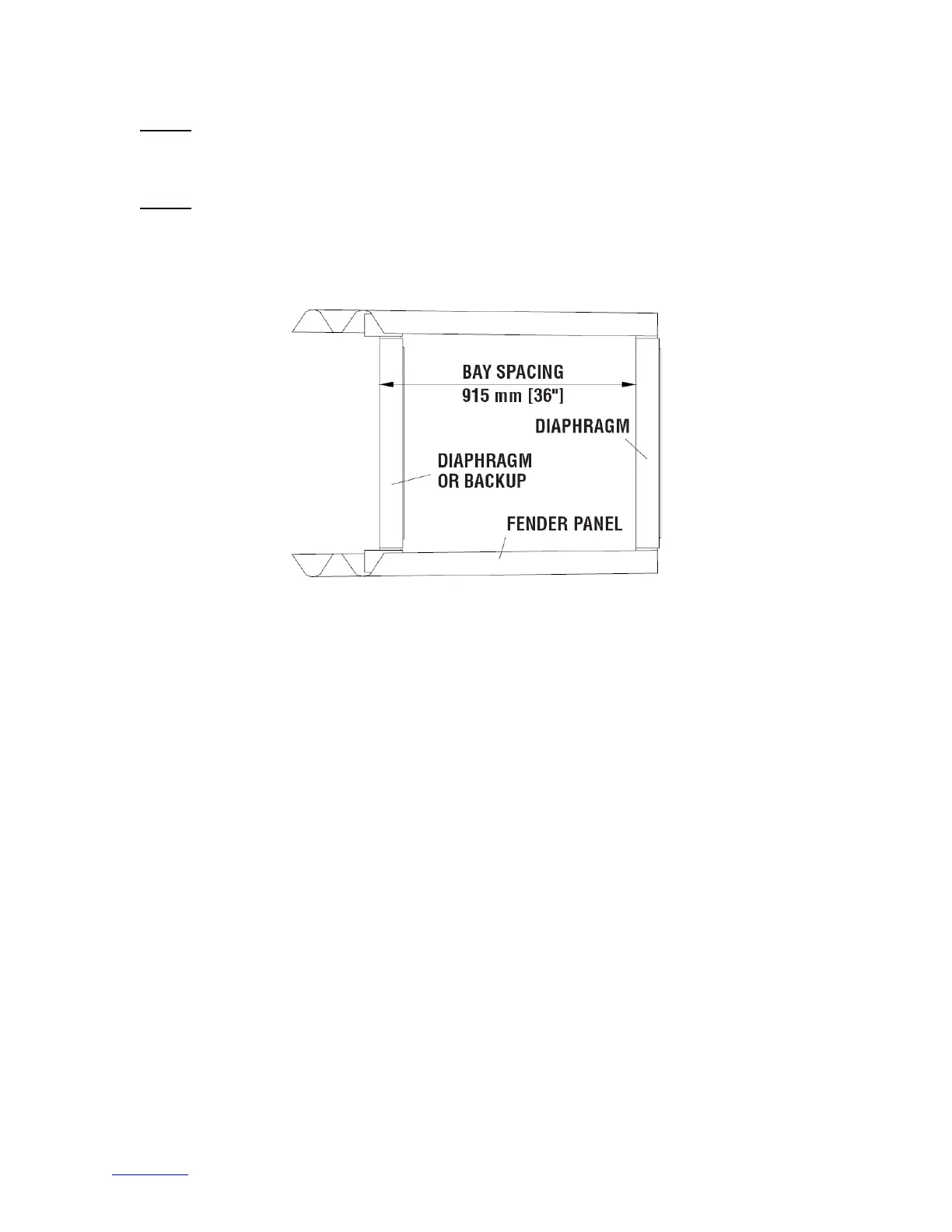

Figure 28
Proper Diaphragms Spacing
