Valtir.com 31 Revision D November 2022
9) Attach End Cap
Using 5/8” x 3 1/2" G5 hex bolt, 5/8” hex nut and 5/8” lock washer, attach the End Cap to
the front of the first Monorail segment, as shown in Figure 29 and Monorail Assembly
drawing.
10) Attach Cartridge Support Brackets
Attach lower Cartridge Support Bracket to front and back of all Diaphragms and front of
Backup as shown in Figures 31 to 33, the Diaphragm Assembly drawings and the Backup
Assembly drawings (p. 35).
Note: 24” [610 mm] wide systems do not have Side Cartridge Support Brackets: 30” [762 mm],
36” [914 mm] and 48” [1219 mm] wide systems have Side Cartridge Support Brackets welded to
the Backup and Diaphragms.

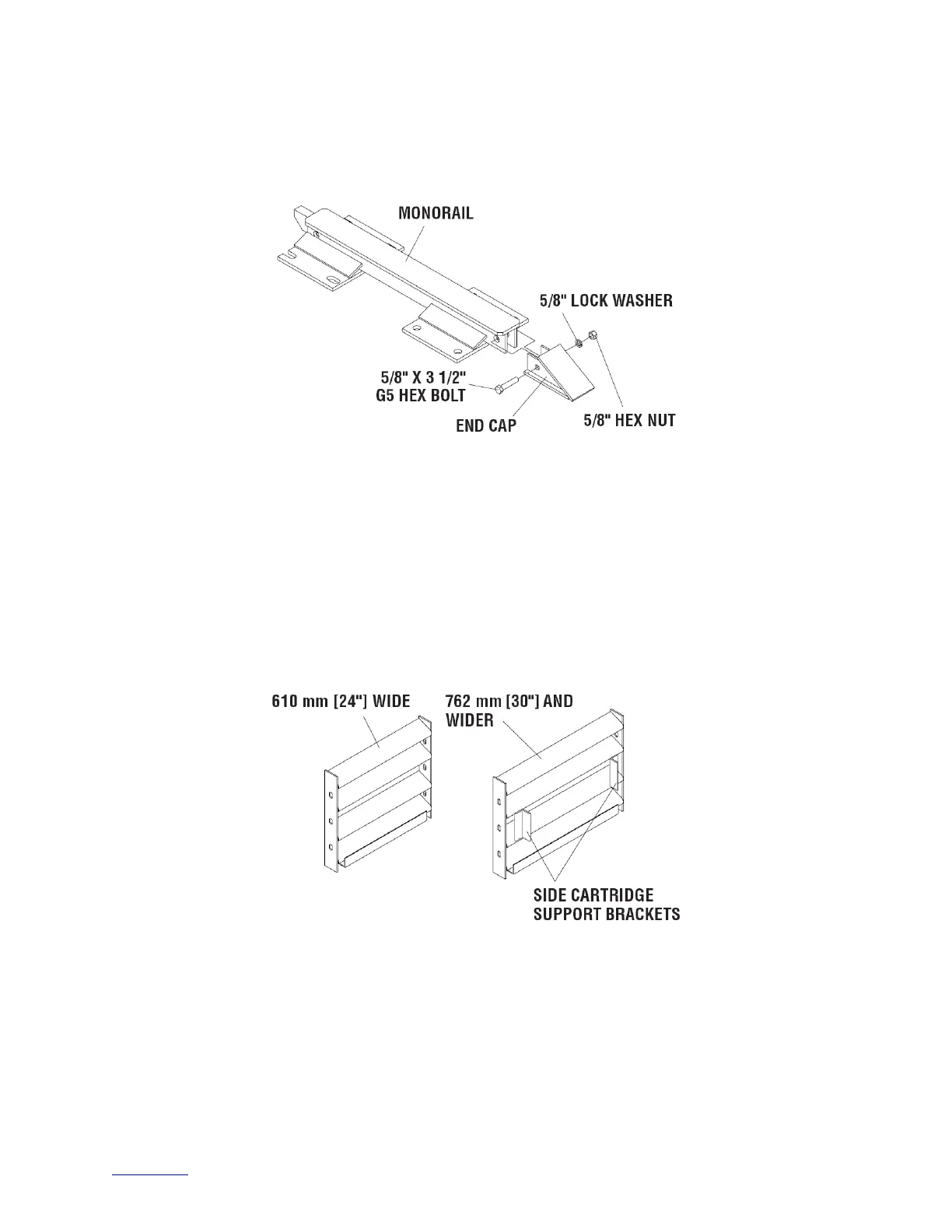

Figure 29
Monorail End Cap Assembly
Figure 30
Side Cartridge Support Brackets
